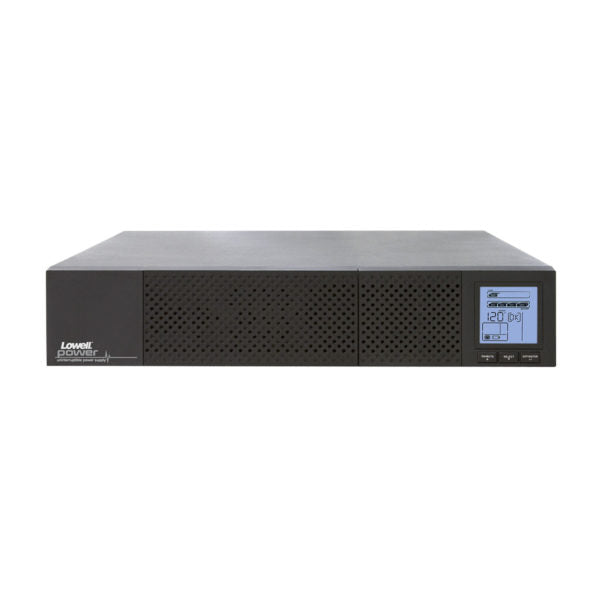

UPS8-800: Line interactive UPS, 800VA (720W)

PURE SINE WAVE uninterruptible power supply offering the highest efficiency available while providing advanced line interactive power protection for AV electronics, servers, and network equipment. Includes 4-point rack rail kit plus tower pedestals for stand-up use.

SPECIFICATIONS

• Power Rating:  800VA (720W)
• Receptacles:  (8) NEMA 5-15R
• Line Cord:  6 ft. (5-15P)
• Chassis:  17.2 x 16.1 x 3. 5 in. (2U)
• Weight (approx.): 29 lbs.
• Battery Quantity/Size:  (2) 12V 7AH
• Battery Run Times:  11 minutes (50% load); 4 minutes (100% load).  Note: Battery run times vary based on condition, age, cycles, ambient temp.
• Output Voltage: 120VAC nominal (110/115/127 selectable)
• Pure sine wave
• Efficient operation:  up to 99% (ECO mode); 95% (Buck & Boost mode)
• Hot swappable battery
• Auto restart after full discharge
• Smart LCD display
• Programmable receptacle group
• Temperature compensation
• 4-point rack rail kit (min. 22"D) plus tower pedestals
• 3 year warranty on electronics and battery

COMPLIANCE & CERTIFICATION

• UL Listed
• RoHS compliant

A&E SPECIFICATIONS

• The uninterruptible power supply or UPS shall be Lowell Model UPS8-1100, which shall feature a 4-point rail kit for rack installation, as well as tower pedestals for alternate mounting options. The chassis shall measure 17.2" x 16.1" x 3.5" (2U). The UPS shall operate on 120VAC/60Hz current with nominal output of 120V (110/115/127 selectable). Power rating shall be 800VA (720W). The unit shall feature (8) NEMA 5-15R receptacles and include a 6 ft. power cord with 5-15P plug. The UPS shall feature a battery that is hot-swappable and has a run time of 11 minutes (half load) or 4 minutes (full load). *Note: Battery run times vary based on condition, age, cycles, and ambient temperature.
