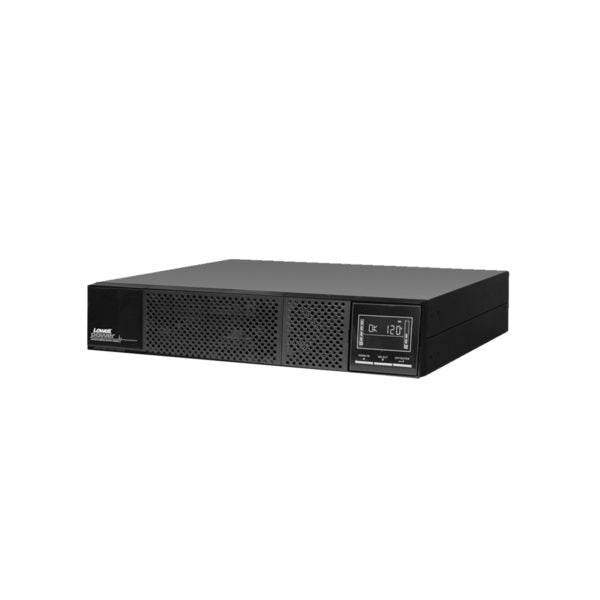

UPS9A-3000: Online UPS, 3000VA (2880W)

Online double conversion UPS solution offers power conditioning and outage protection in a compact and flexible rack or tower format. With near unity power factor operation (2U units), the UPS9A provides maximum usable power to your equipment and protects it with a standard 3-year warranty or optional 5-year extended warranty. The 2U model provides scalable battery capacity when extended protection is required; the powerful charger can provide up to 8 amps of current to quickly recharge up to 7 matching battery packs (ordered separately).

This UPS can be ordered alone or bundled with an SNMP card.

SPECIFICATIONS

• Power Rating:  3000VA (2880W)
• Receptacles:  L5-30R + (6) 5-15/20R
• Line Cord:  6 ft. (L5-30P)
• Chassis:  17.2 x 23.8 x 3.5 in. (2U)
• Weight (approx.):  60.5 lbs.
• Battery Quantity/Size:  (6) 12V 9AH
• Battery Run Times:  10 minutes (50% load); 3 minutes (100% load).
  Note: Battery run times will vary based on condition, age, cycles, and ambient temperature.
• Output Voltage: 120VAC nominal (100/110/115/127 selectable. Capacities based on highest selectable voltage. Some models derate at lower voltages.)
• Pure sine wave output
• Efficient operation: up to 98%
• Hot swappable battery
• Fast recharge
• 4-point rail kit and tower pedestals
• 3 year warranty (electronics, battery)

COMPLIANCE & CERTIFICATION

• UL Listed
• RoHS compliant
• TAA compliant

A&E SPECIFICATIONS

• The uninterruptible power supply (UPS) shall be Lowell model UPS9A-3000, which shall include a 4-point rackmount rail kit and tower pedestals. The chassis shall measure 17.2"x 23.8" x 3.5". The UPS shall operate on 120VAC/60Hz current with nominal output of 120VAC (100/110/115/127 selectable). Power rating shall be 3000VA. The unit shall feature one L5-30R and (6) NEMA 5-15/20 receptacles and include a power cord with plug. The UPS shall feature a run time of 10 minutes (half load) or 3 minutes (full load).
