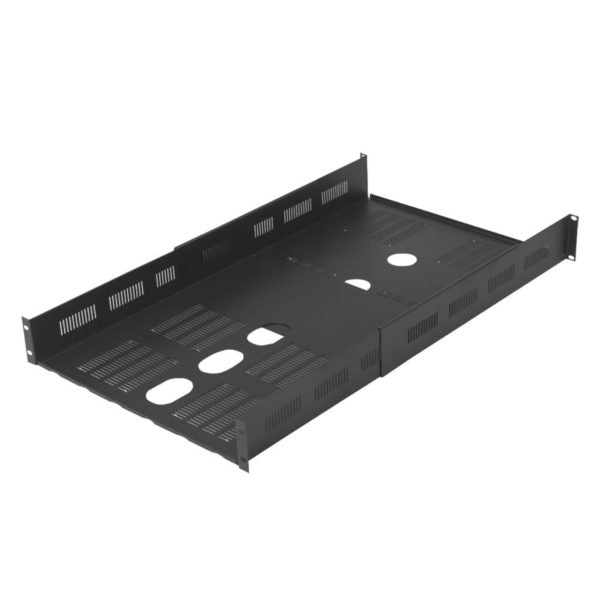

VDS-2-2032: Variable Depth Shelf 2U x 20-32?D

19 in. rackmount shelf has a variable depth that can be expanded from 20–32 inches deep. It mounts to front and rear rails on a 27, 32 or 36 inch deep rack, providing heavy duty support for non-standard equipment.

FEATURES

• Material:  16-gauge steel
• Finish:  Smooth black
• Rear lacing points
• Cable access openings
• Bottom vents
• Front and Rear Flanges:  0.375 in.
• Width:  19 in. (17.359 in. useable)
• Height:  2U
• Depth:  20–32 in.
• Load Capacity:  250 lbs.
• Requires rear rails

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel
• E.I.A. compliant

A&E SPECIFICATIONS

• The rackmount shelf shall be Lowell Model No. VDS-2-2032 which shall feature an adjustable depth of 20"-32", 2U panel space, overall width of 19" and usable width of 17.359." It shall mount to front and rear rails in racks that are 27"D, 32"D or 36”D. Load capacity shall be 250 lbs. The shelf shall include bottom vents and provisions for cable entry. It shall be formed from 16-gauge U.S. steel and have a smooth black powder epoxy finish.
