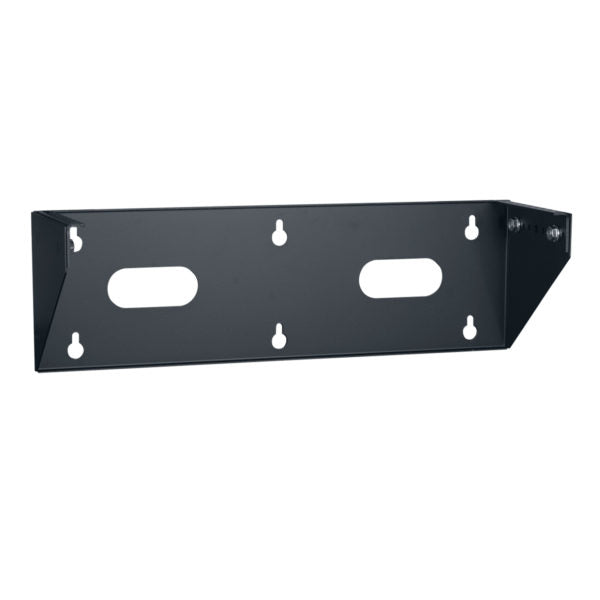

VR-3: Versatile Rack 3U

Quintessential space saving wall rack holds a piece of equipment vertically or horizontally.

SPECIFICATIONS

• Rack Space:  3U (vertical hold)
• Height:  6.00 in.
• Width:  19.17 in.
• Depth:  5.69 in.

FEATURES

• 16-gauge steel
• Mount to wall or desk
• Holds equipment vertically or horizontally
• One-pair mounting rails tapped 10-32
• Two rear obrounds for cable management
• Pilot Point screws with captive washers
• Smooth black powder epoxy finish
• Load Capacity:  200 lbs.
• Use two racks together for four-point mounting

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The wall-mount rack for vertical or horizontal installation shall be Lowell Model No. VR-3, which shall hold up to 3 rack units of 19" E.I.A. equipment. Overall measurements shall be 19.17"W x 6.00"H x 5.69"D. Construction shall be formed 16-gauge steel with a smooth black powder epoxy finish. The rack shall feature mounting holes on 8" and 16" centers and rear obrounds for cable management.
