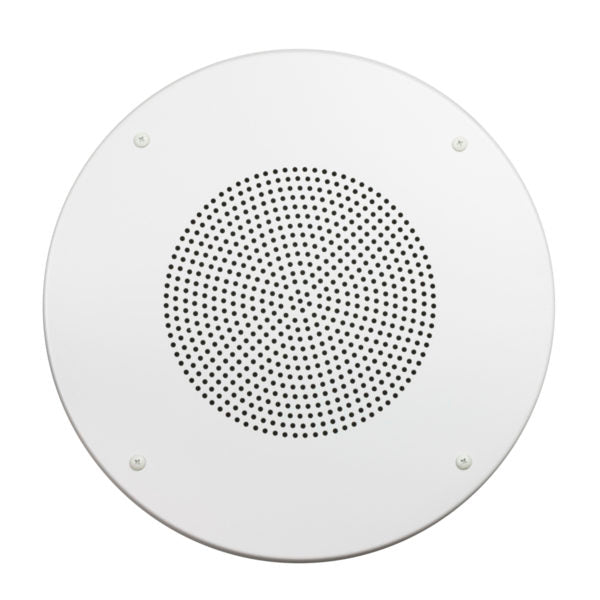

WB-8: Contoured Speaker Grille

Contoured speaker grille with white finish is for use with an 8 inch driver. This style is a popular choice for offices, hotels, schools, medical, retail, and commercial facilities.

SPECIFICATIONS

• Style:  Screw-mount
• Material:  Precision formed single piece of 20-gauge steel reinforced with 60-degree peripheral flange, perforated center, contoured edge
• Finish:  White
• Size:  12.875 in. diameter
• Mounting Projection:  0.25 in. mounting projection
• Mounting Provisions:  4 screws (white), welded studs w/nuts

CERTIFICATION & COMPLIANCE

• Made in the U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The contoured speaker grille for 8 inch speakers shall be Lowell Model WB-8. It shall be fabricated one-piece 20-gauge steel reinforced with a peripheral flange of 60-degrees. The grille diameter shall be 12.875 inch with a shallow mounting projection of 0.25 in. Each grille shall have four 0.25 in. holes spaced at 90-degree intervals on an 11.25 in. bolt circle for mounting grille to specified backbox or mounting ring. It shall be finished in white powder epoxy coating and include white screws for backbox mounting and welded studs for mounting specified 8 in. speaker.
