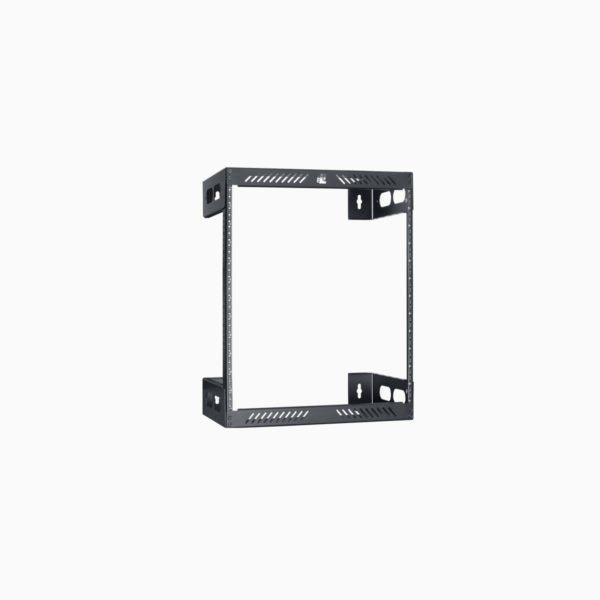

WXR-1212: Slim Wall Rack 12U x 12?D

Slim open-frame wall rack mounts 19"W equipment to a wall or backboard. Top and base are heavy gauge steel that can be mounted on 16" centers to form a stable platform for patch panels, routers, switches, telecommunications, or computer equipment. Ships unassembled.

SPECIFICATIONS

• Rack Space:  12U
• Rack Height:  21.28 in.
• Rack Width: 19.21 in.
• Rack Depth:  12.00 in. (11.85 usable)

FEATURES

• 14-gauge steel top and base
• 11-gauge steel corner post rails tapped 10-32 (1 pr.)
• Upper and lower front vents
• Open sides with obrounds in top/base for cable management
• Smooth black powder epoxy finish
• Load Capacity:  200 lbs.
• Ships unassembled

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The slim open frame wall-mount rack shall be Lowell WXR-1212 with overall dimensions of 21.28"H x 12.00"D x 19.21"W. It shall provide 12 rack units of panel space. Rack construction shall be 14-gauge steel top/base with (1 pr.) 11-gauge steel corner post rails tapped 10-32 on E.I.A. spacing, with smooth black powder epoxy finish. The rack shall be manufactured in the U.S.A. with certified U.S. steel. It shall have a load capacity of 200 lbs. when properly mounted. It shall ship unassembled.
