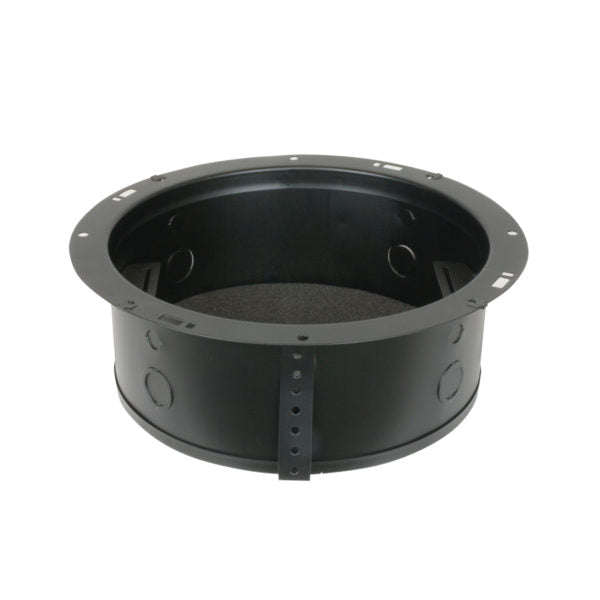

XCP84-S: Recessed Backbox w/straps

Recessed enclosure with flat grille mounting flange will accept an 8 inch driver and torsion or screw-mount grille. Ideal for suspended tile ceilings.

SPECIFICATIONS

• Material:   Welded unitized heavy gauge steel
• Finish:  Black
• Diameter:  10.06 in.
• Depth:  4.06 in.
• Volume:   0.187 cu.ft.
• Flange:  Flat
• Acoustical Treatment:  Undercoated, foam pad
• Mounting Aids:  Welded anchor straps, knockouts
• For Grille Type:  Screw-mount or torsion

COMPLIANCE & CERTIFICATION

• Made in U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The recessed backbox shall be Lowell Model No. XCP84-S, which shall be 22-gauge steel undercoated to eliminate acoustic and mechanical resonance. The backbox shall have a 10.06 in. diameter and 4.06 in. depth. It shall have four 0.5–0.75 in. knockouts for conduit and four 0.5 in. knockouts for wire. The backbox shall include a foam pad and welded anchor straps. It shall be finished in black powder epoxy paint.
