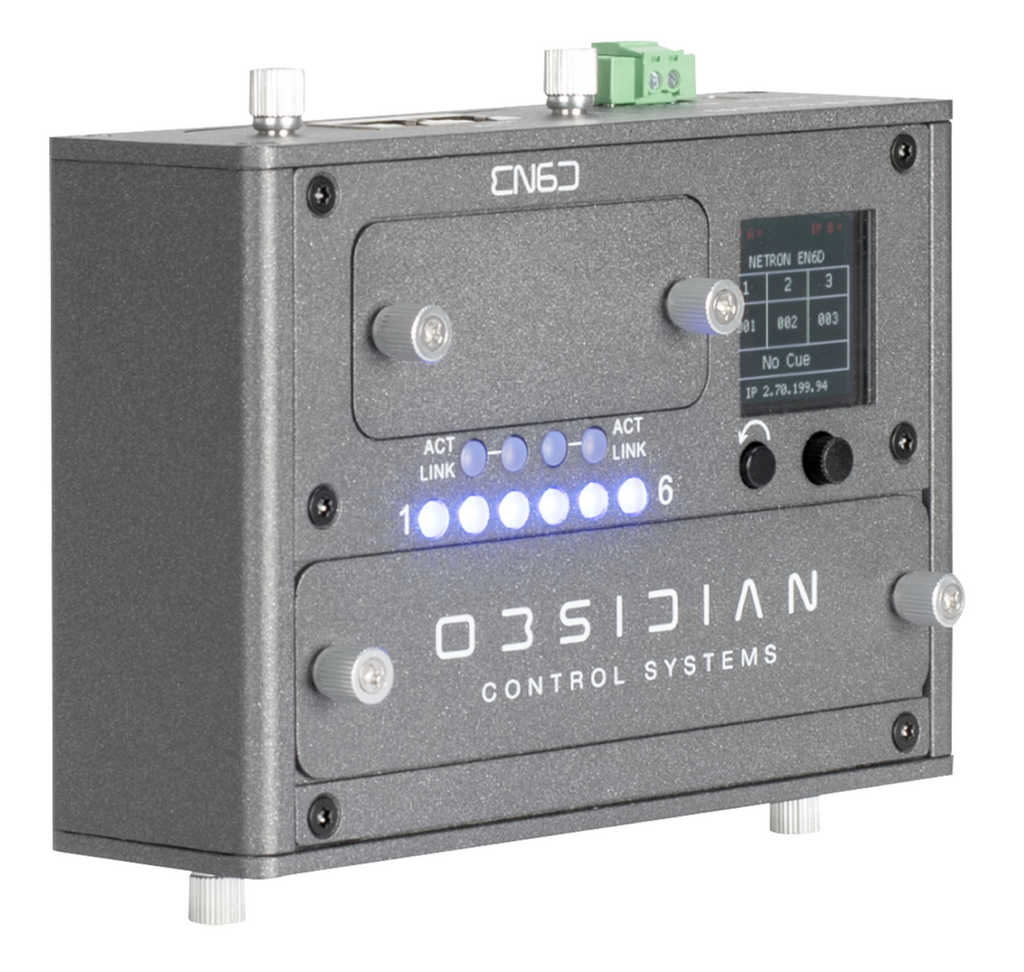

Elation EN6D

Save $138.00
Elation LightingSKU: NDR613

Price:
Sale price$552.00 Regular price$690.00
 More payment options

Description

Features:

  • RJ45, screw terminal or IDC connectivity
  • Configurable Top, Bottom and Front ports
  • RDM, Artnet and sACN support
  • Factory and user presets for plug and play setup
  • POE or 9-48V DC power
  • 1.3” OLED Display with rotary knob
  • 99 Internal cues with fade and delay time
  • Remote configuration via internal webpage
  • Powder-coated aluminum DIN Rail housing
  • Unlocks ONYX NOVA 4-Universe License


Specifications:

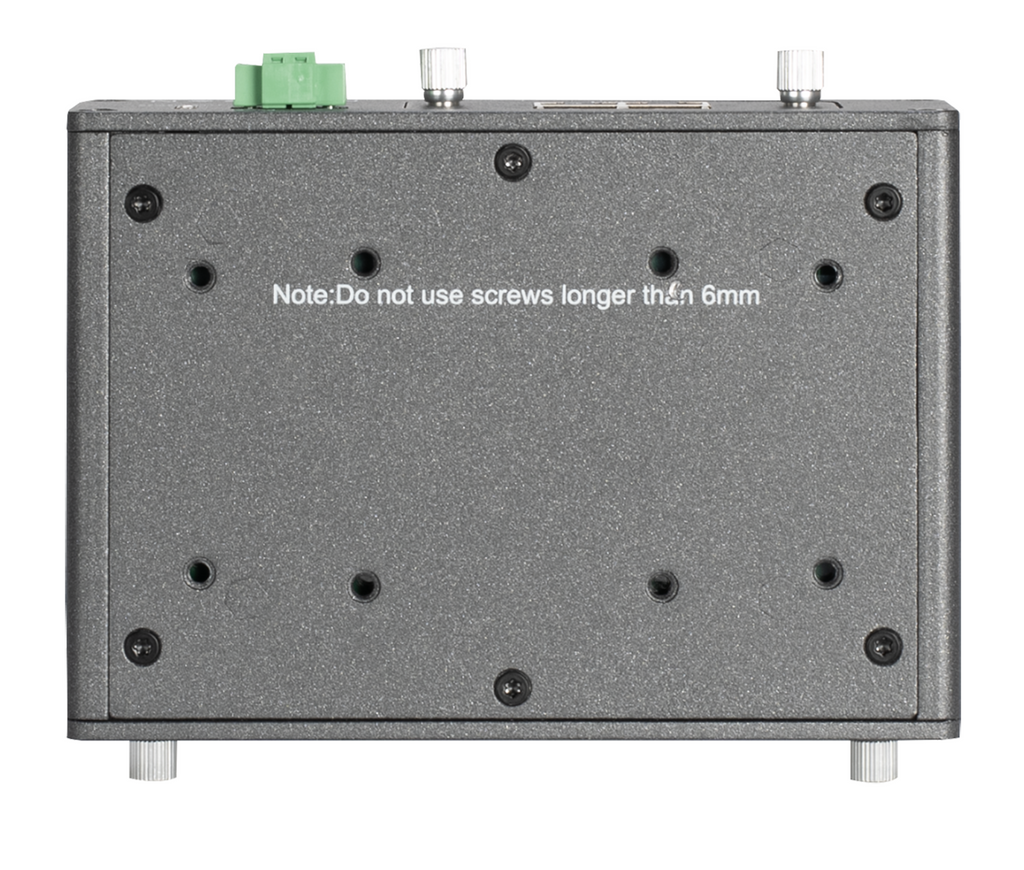

Mounting

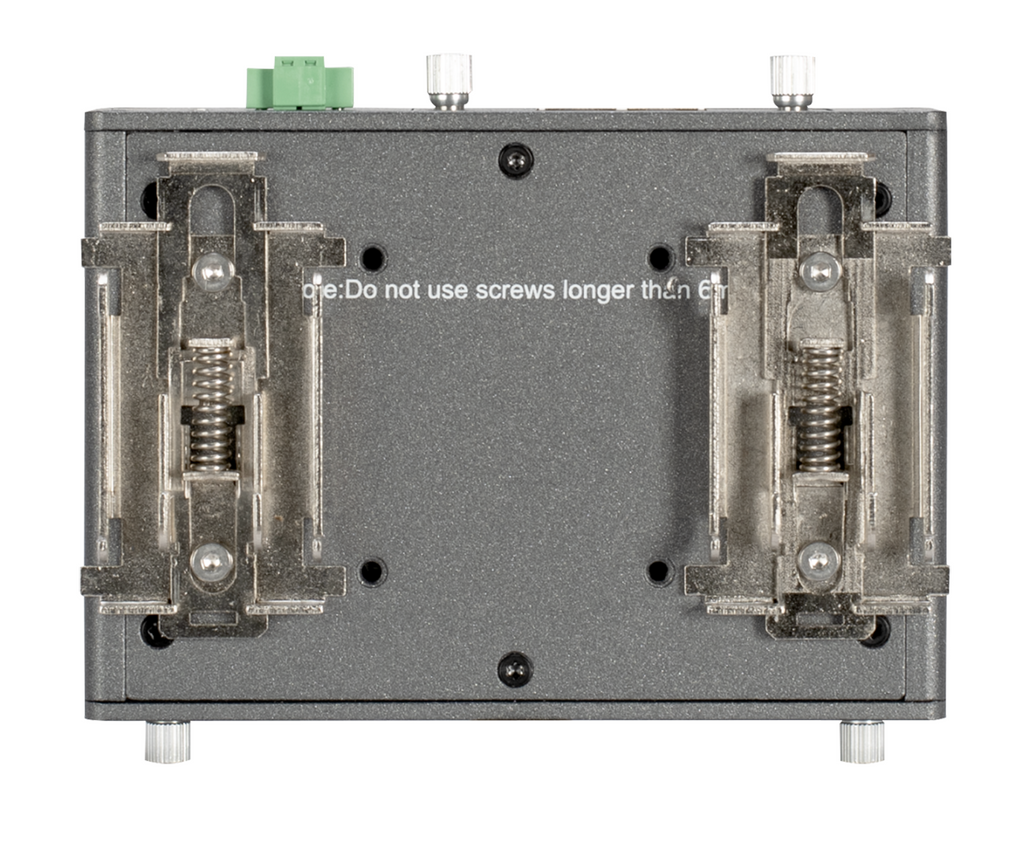

DIN Rail

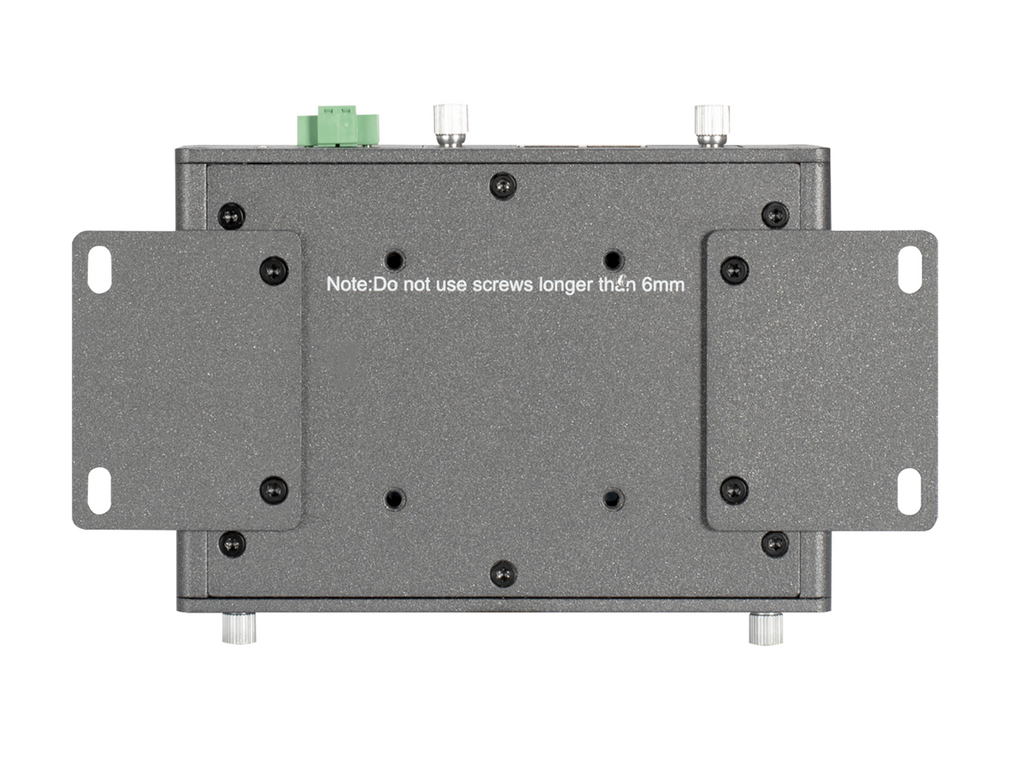

Wall-mount

Connections

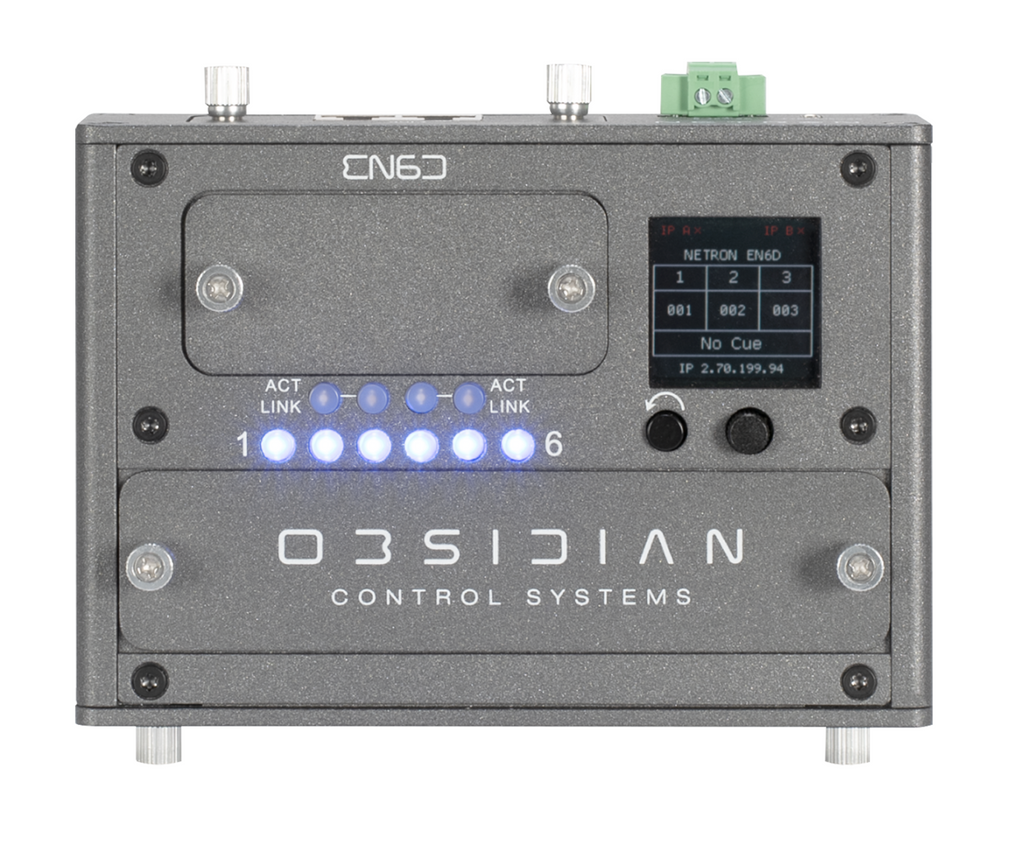

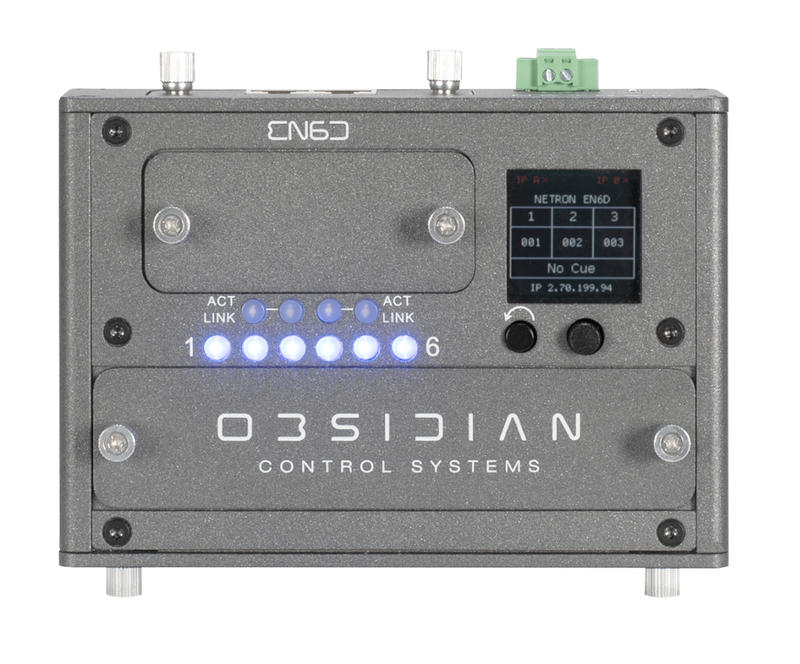

Front
Full color 1.3" OLED display
Encoder w. Push to Select / Exit Button
6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate
(2) RJ45 Gigabit Ethernet (1x POE) or Cover Plate

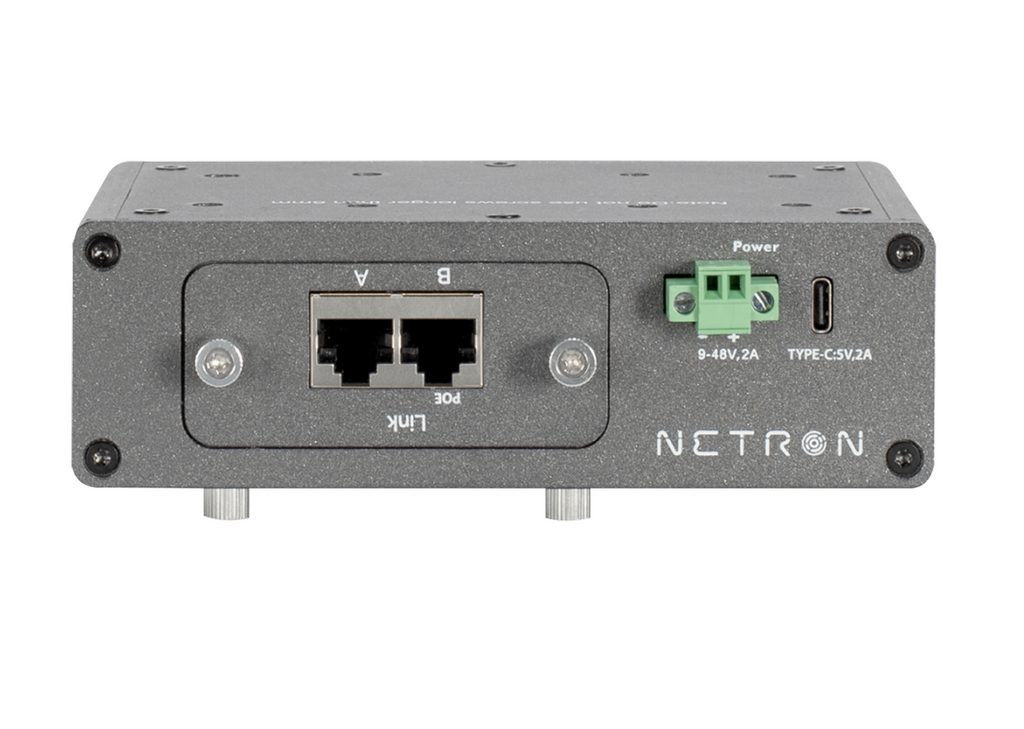

Top
(2) RJ45 Gigabit Ethernet (1x POE) or Cover Plate
DC In (2pin Terminal Block)
USB-C (5V/2A)

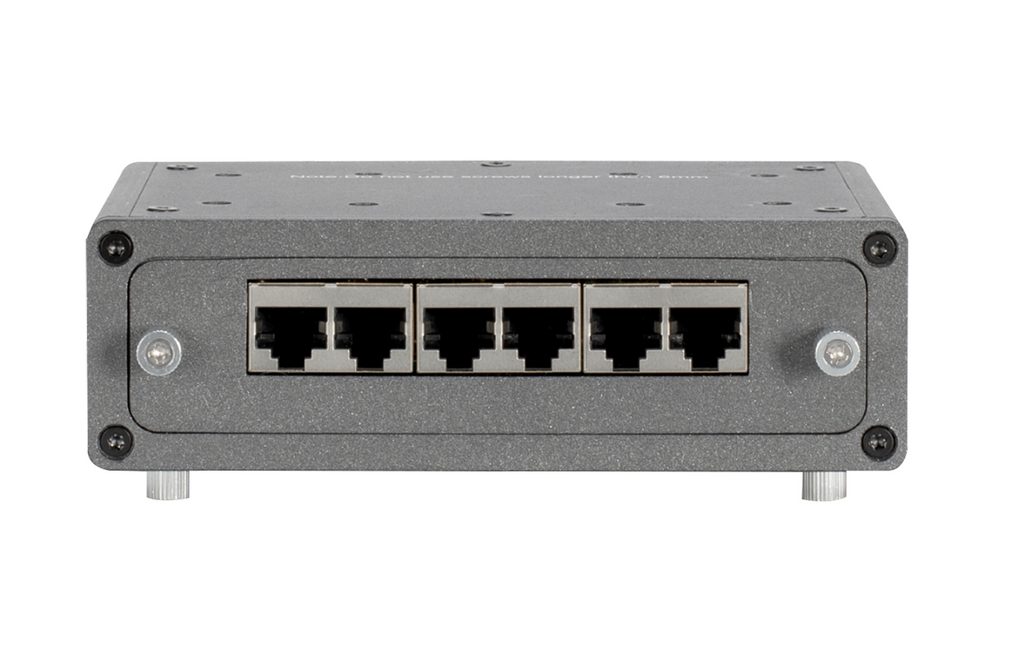

Bottom
6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate

Physical
Length: 116 mm (4.7 in.)
Width: 143mm (5.6 in.)
Height: 52 mm (2.1 in.)
Weight:Â kg ( lbs)

Electrical
POE 802.3af
DC 9-48V
USB-C (5V/2A)

Approvals / Ratings
cETLus / CE / IP20
