Description

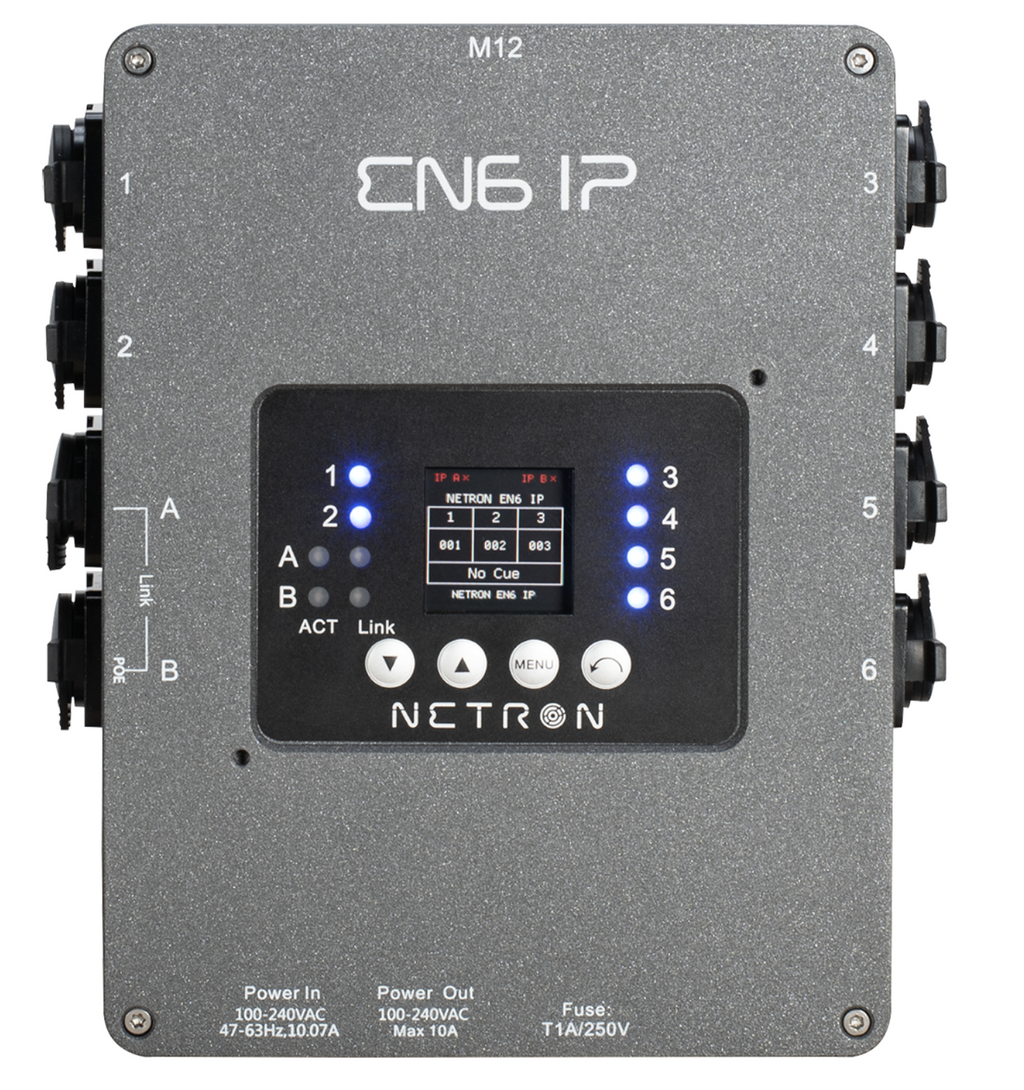

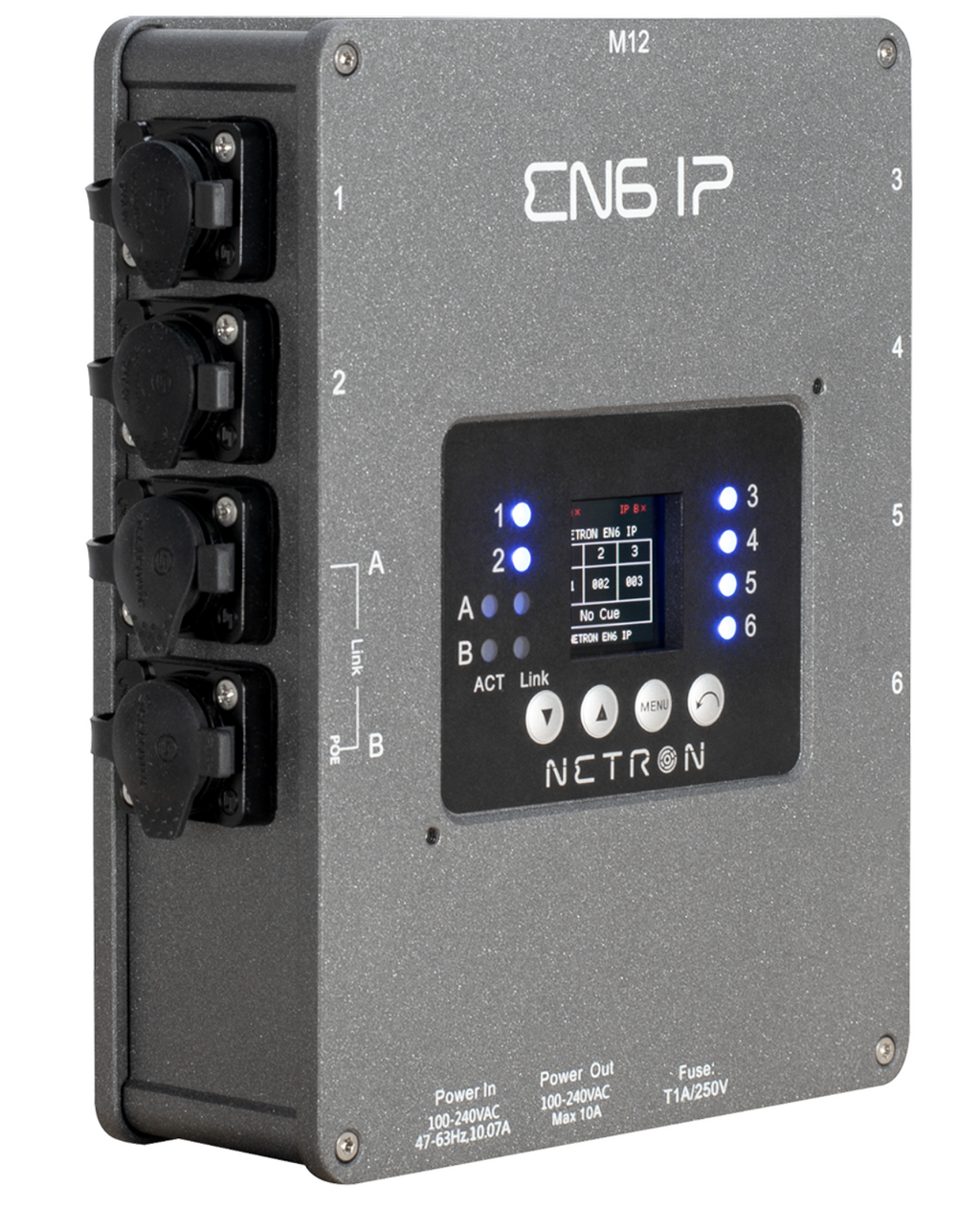

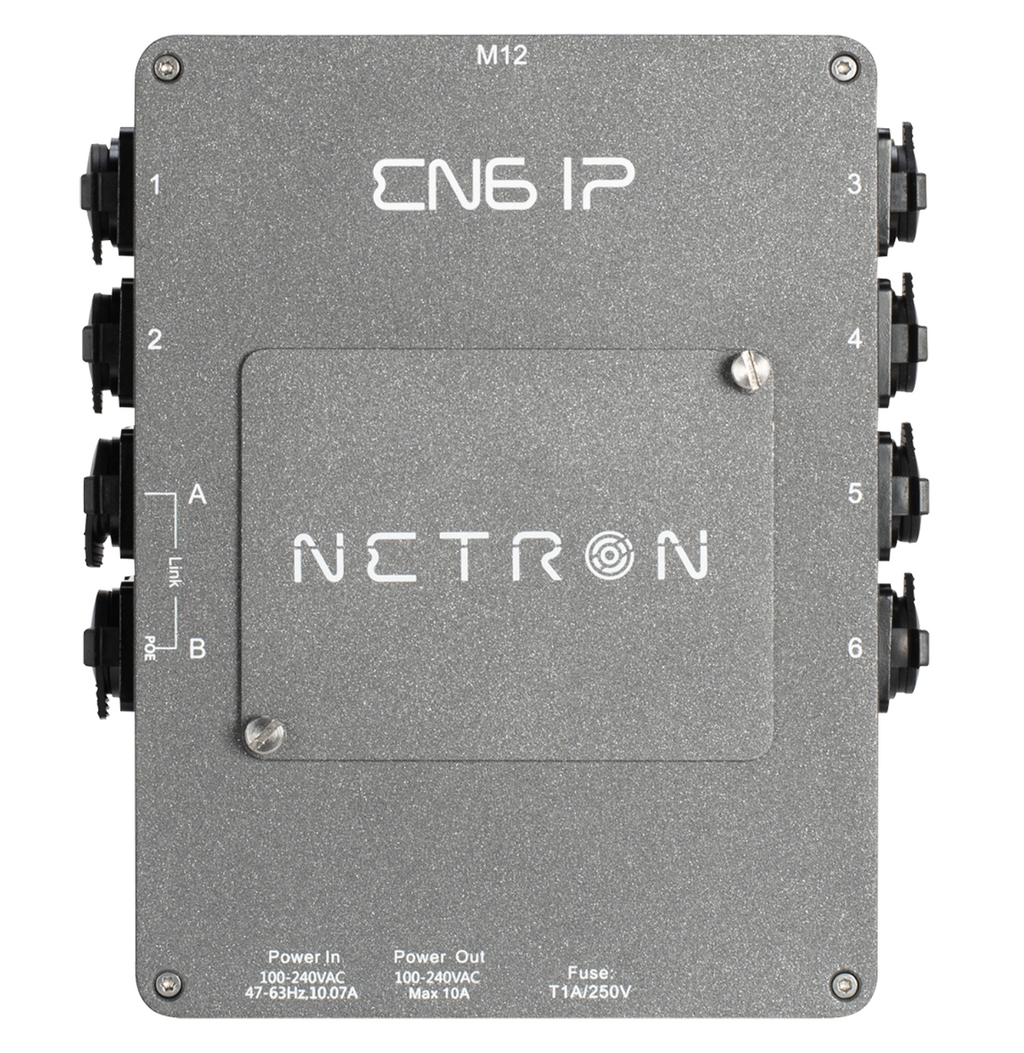

The Netron EN6 IP is a powerful Ethernet to DMX gateway with six RDM compatible ports in a rugged IP65 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.
The EN6 IP unlocks the four Universe ONYX NOVA Edition.
Features:
- IP65 Ethernet to DMX Gateway
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or POE powered
- 1.8” OLED Display and waterproof touch buttons
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated aluminum chassis
- Unlocks ONYX NOVA 4-Universe License
Specifications:
Mounting
Standalone

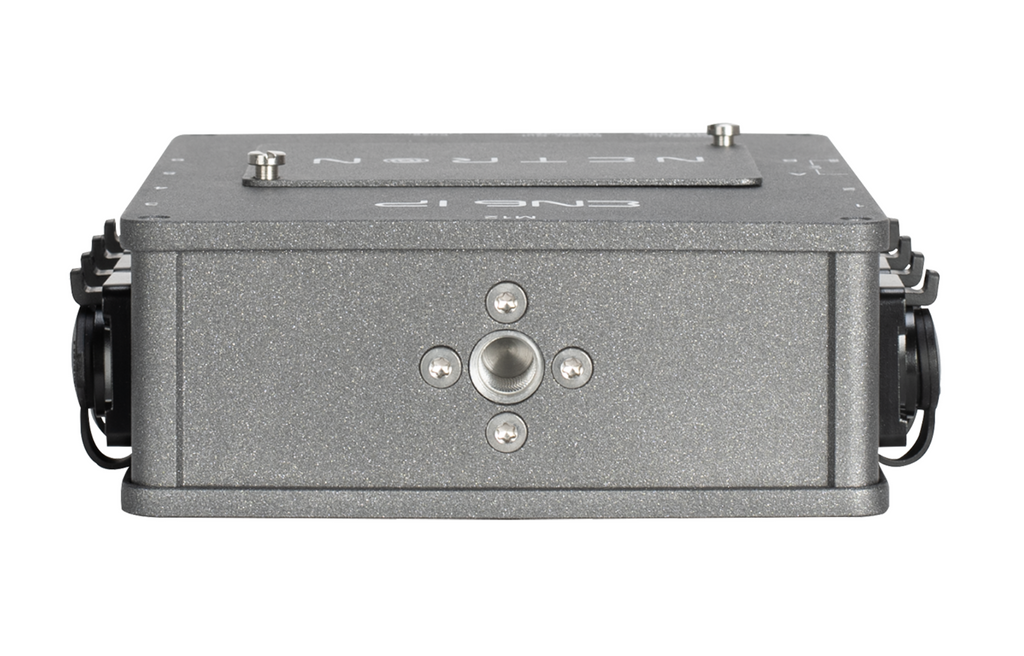

Truss-mount (M12)
Wall-mount
Connections
Sides

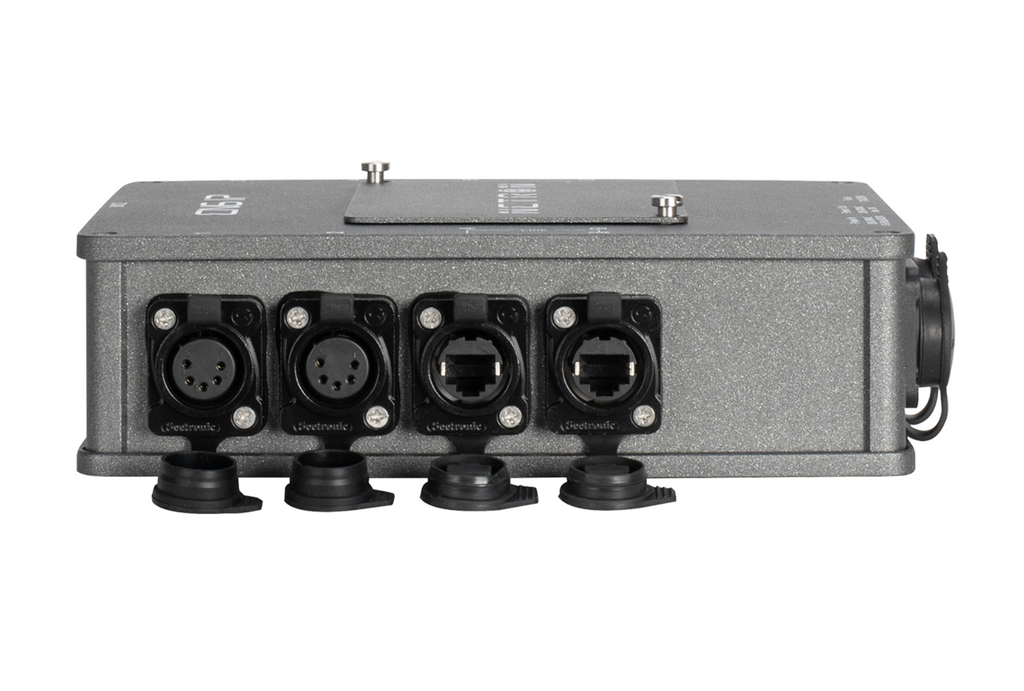

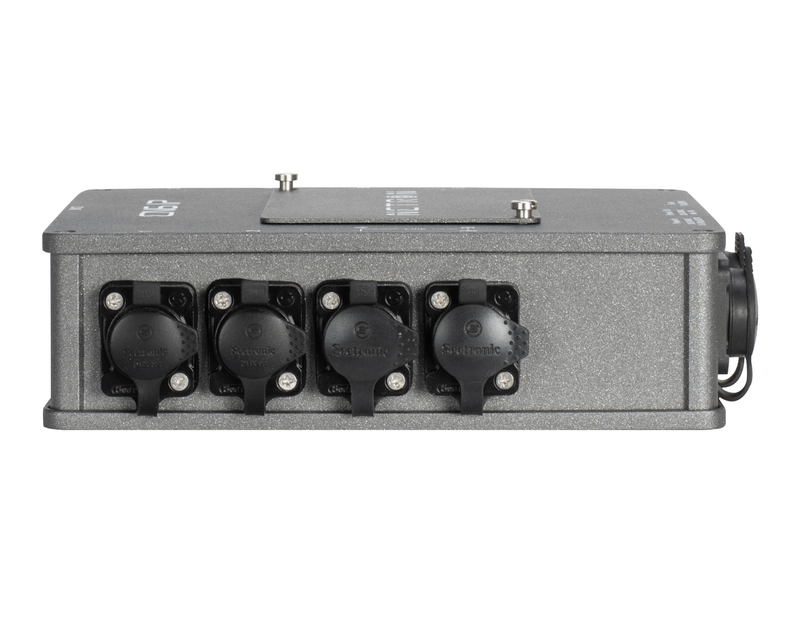

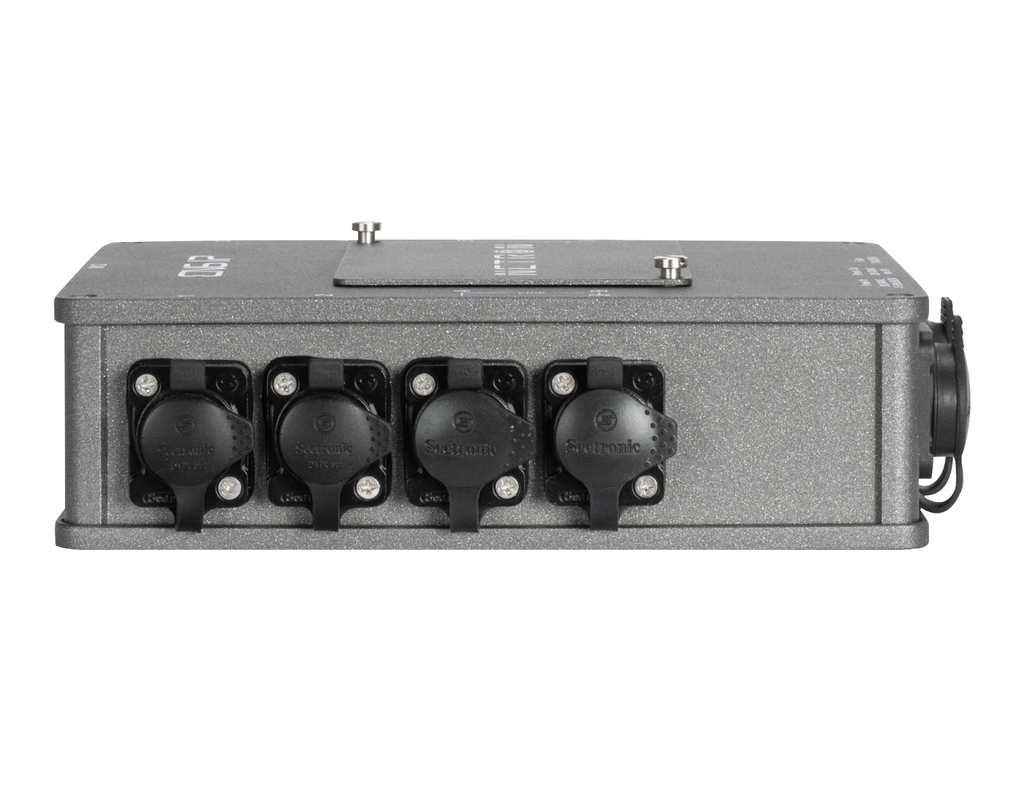

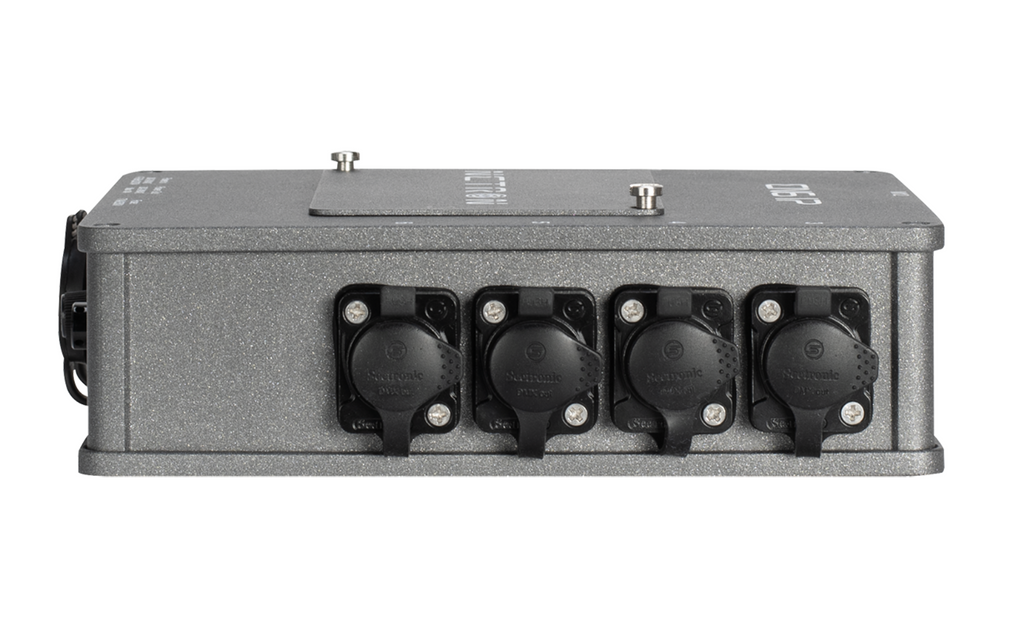

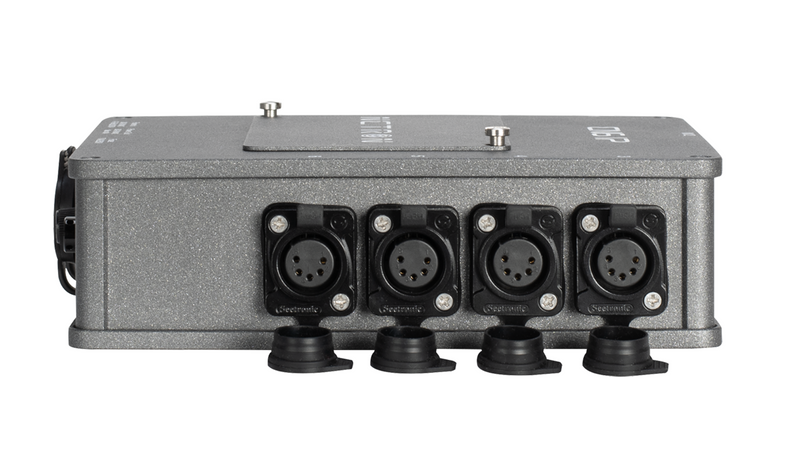

(6) 5pin IP65 DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
(2) Locking IP65 RJ45 Ethernet network connections (1x POE)
Bottom

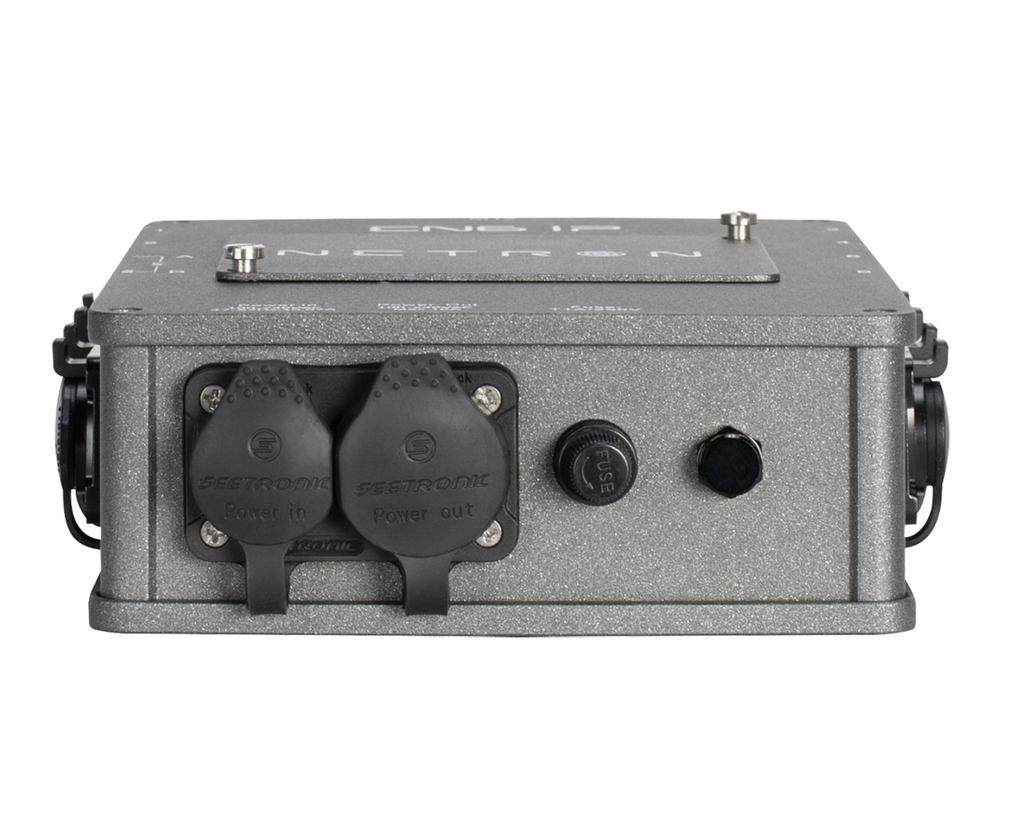

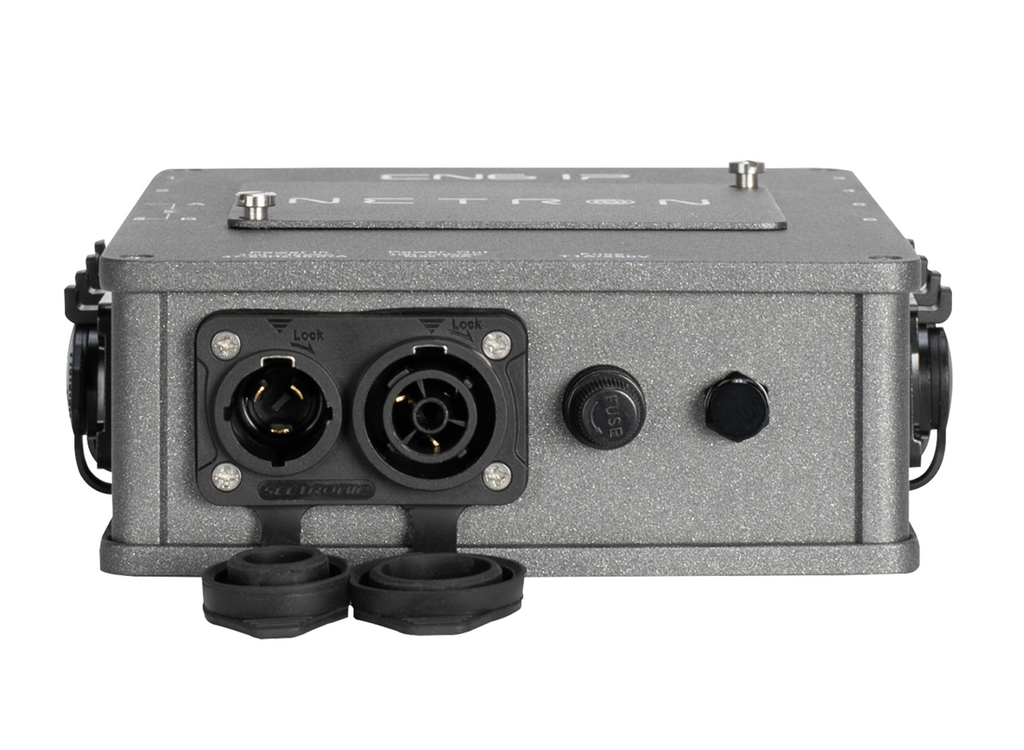

Locking IP65 Power In/Thru
Physical
Length: mm ( in.)
Width: mm ( in.)
Height:Â mm (in.)
Weight:Â kg ( lbs)
Electrical
100-240 V nominal, 50/60 Hz, 10W
POE 802.3af
Approvals / Ratings
cETLus / CE / IP65
