Description
Features:
- RJ45, screw terminal or IDC connectivity
- Back facing wiring plates for permanent rack installation
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or POE powered
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Customizable routing and merging options
- Remote configuration via internal webpage
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
- Unlocks ONYX NOVA 4 Universe License
Specifications:
Mounting
Rackmount
Connections

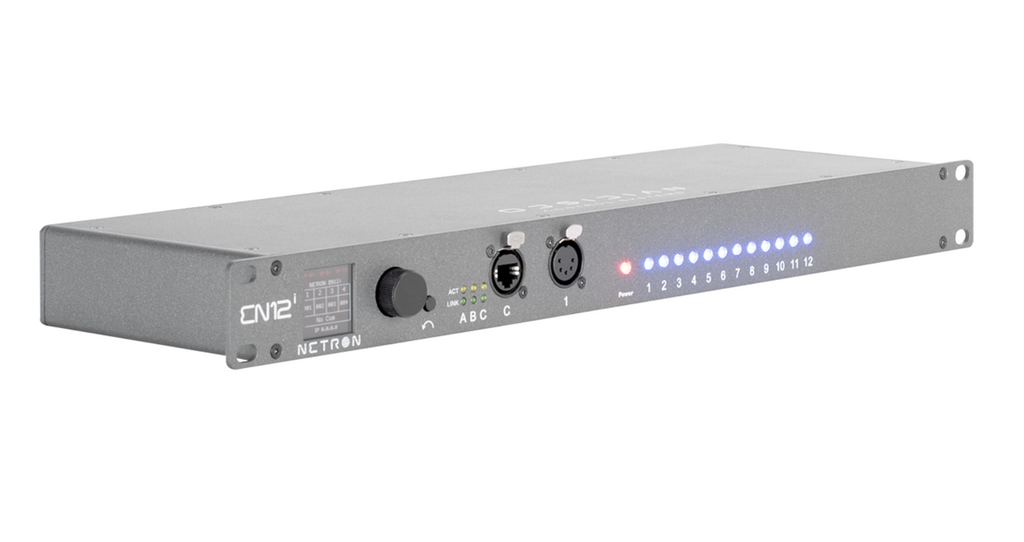

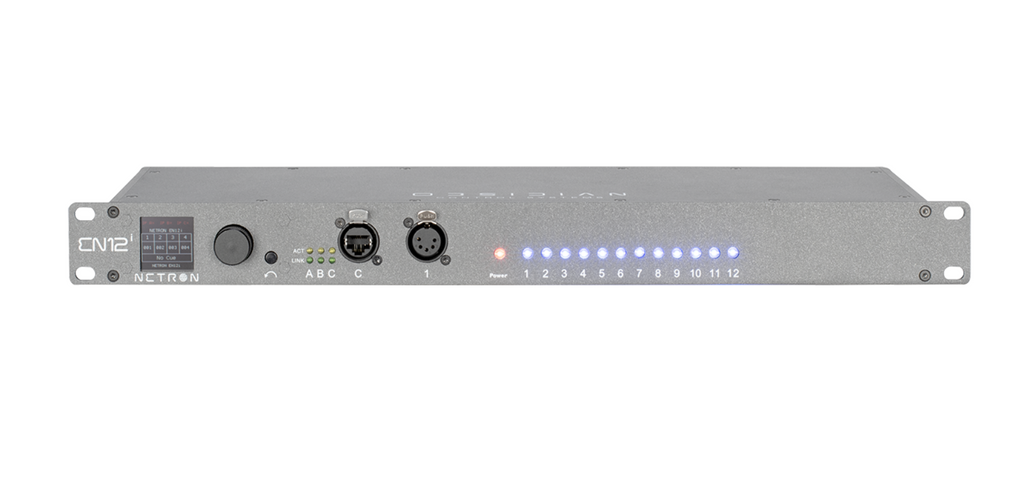

Front
(1) 5pin XLR DMX/RDM optically isolated port Bidirectional for DMX In or Output
(1) Locking RJ45 Gigabit Ethernet
Full color OLED display
LED Status feedback array
Encoder w. Push to Select / Exit Button

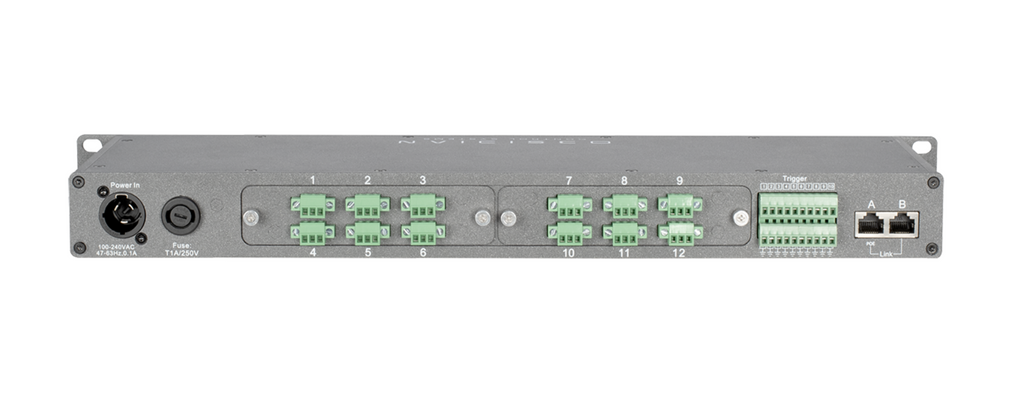

Back
(2) RJ45 Gigabit Ethernet
(2x6) DMX connection plates (RJ45 or Terminal Block)
Bidirectional for DMX In or Output
(10) Contact Closures (Terminal Block)
Locking Power In/Thru
Physical
Length: 482.5 mm (19 in.)
Width: 146 (5.7mm)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs)
Electrical
100-240 V nominal, 50/60 Hz
POE 802.3afÂ
Approvals / Ratings
cETLus / CE / IP20
