RCF NXL-44A-MK2

Active 2-way Column Array Powered Speaker

NXL 44-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of premium RCF transducers and a 2,100W two-channel amplifier produce coherent 100° x 25° coverage for the listening area up to 135 dB SPL. The two-way design features three 10” neodymium woofers and a 3” driver on a waveguide. The speaker delivers an extended frequency range down to 45 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 44-A MK2 for extended coverage. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 44-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, plywood cabinet is easy to carry and installed securely using the dedicated rigging points. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems.

Features:

• Up to 135 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 25° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver
• 3 x 10" High Power Neodymium Woofers
• 45-20000 Hz linear Frequency Response
• Bass Motion Control and FiRPHASE processing
• 8 x M8 Rigging Points and 8 x Quick Lock
• IP Rated Powercon TRUE1 TOP IN/OUT

Specifications:
ACOUSTICAL SPECIFICATIONS

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 135 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 25°

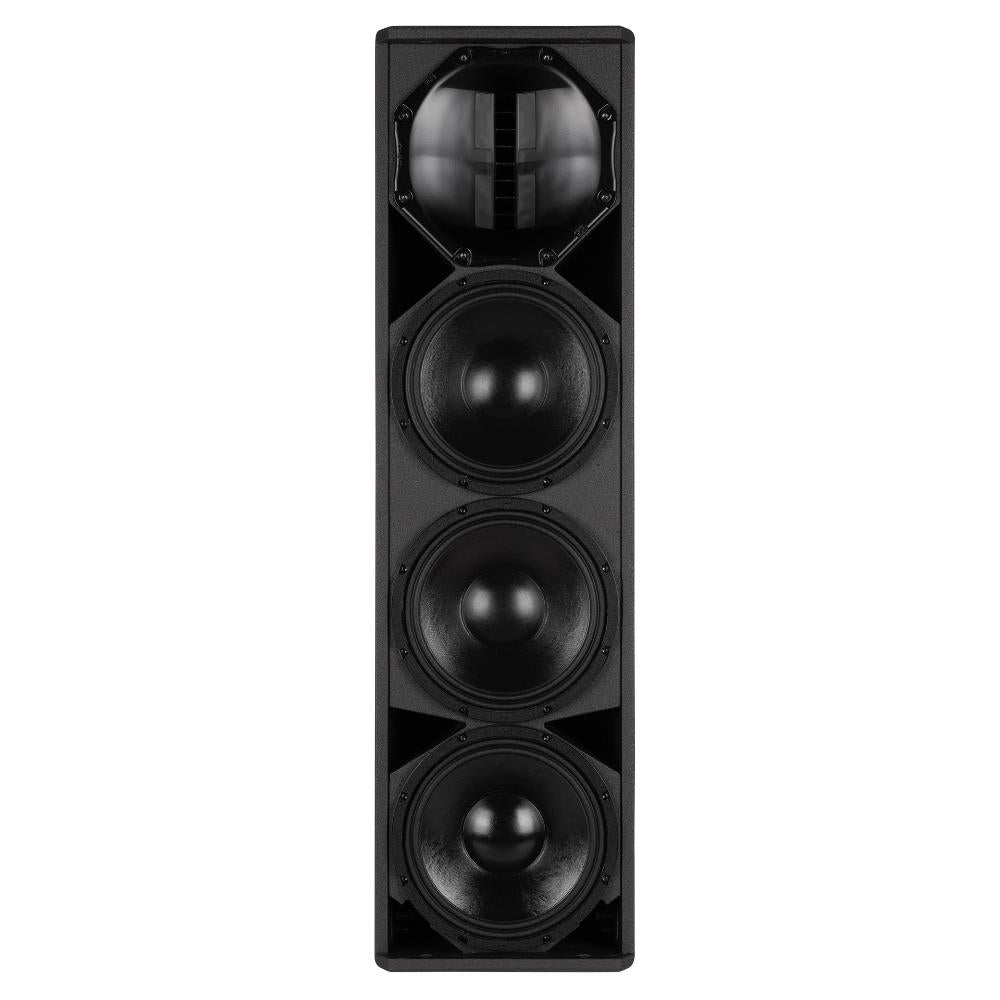

TRANSDUCERS

• Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
• Woofer: 3 x 10'' neo, 2.5'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 800
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Linear, 2 Speakers, High-Pass, Volume

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Hardware: 8 x M8, 8 x quick lock

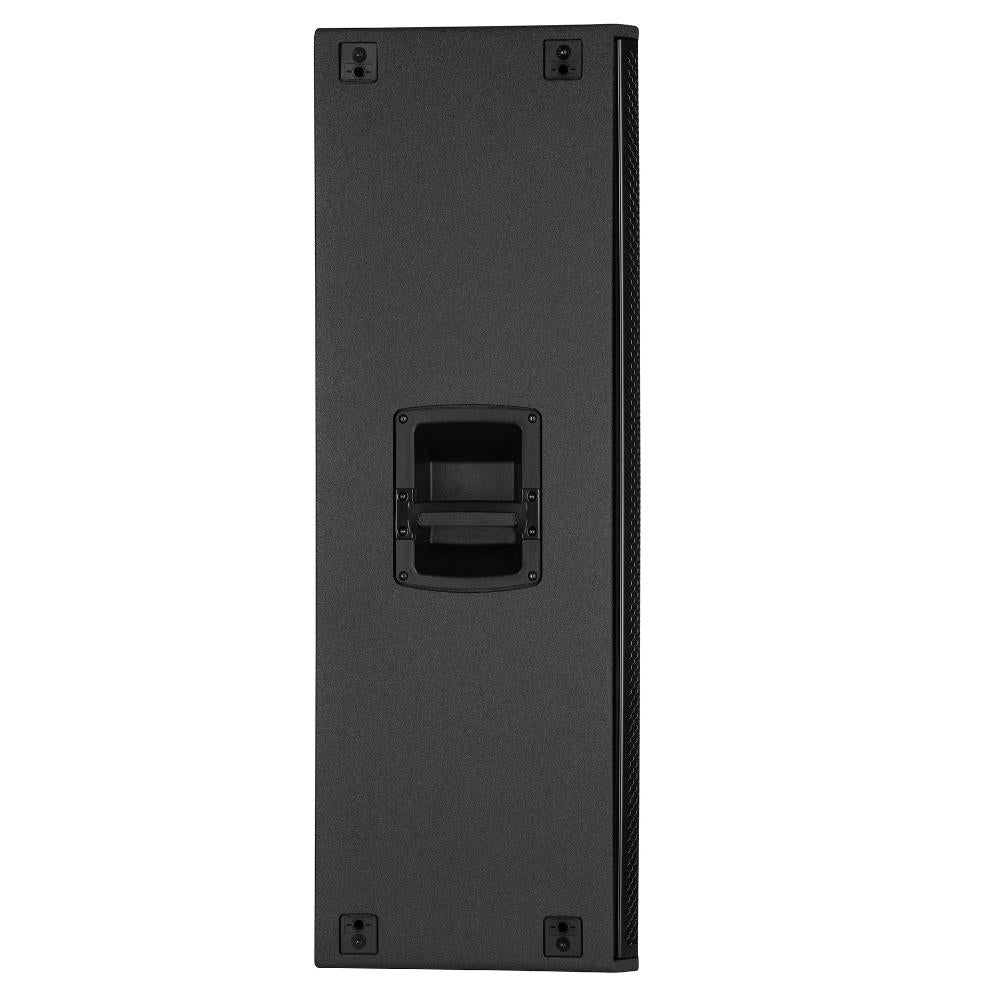

• Handles: 2 side

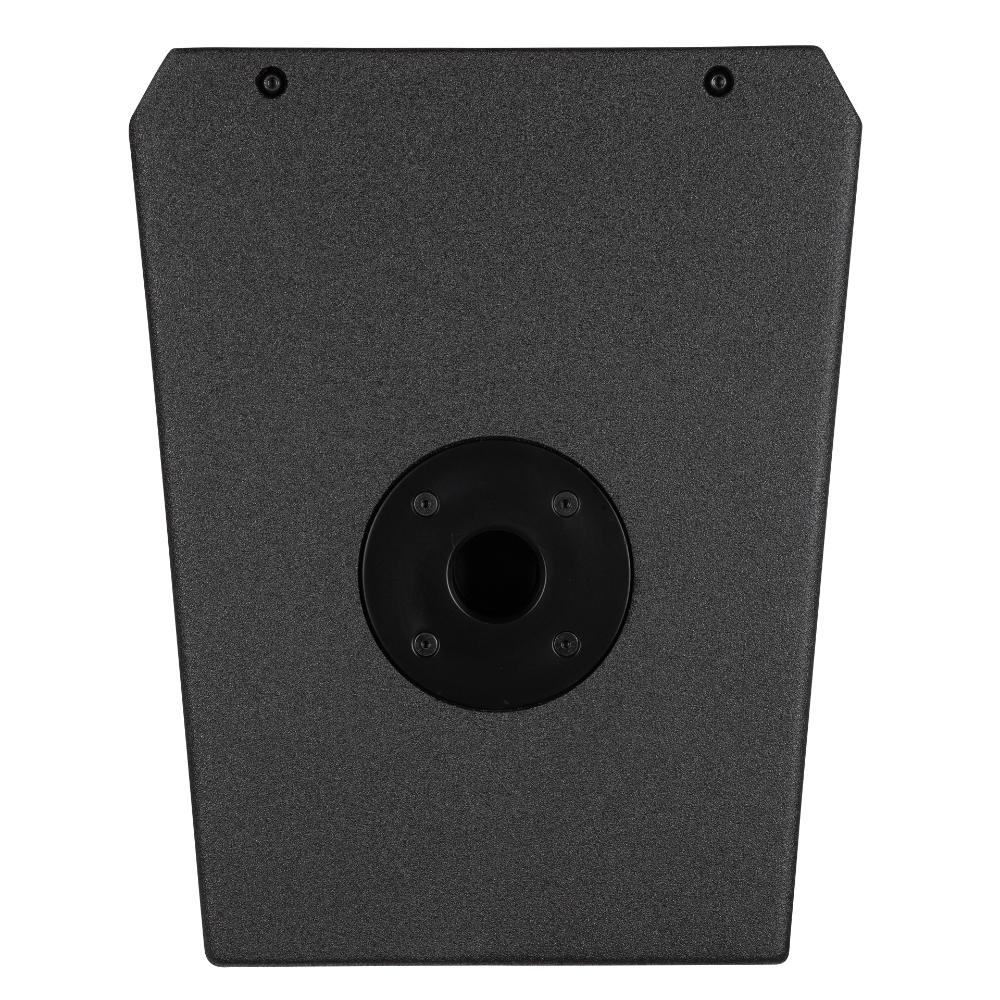

• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 1080 mm / 42.52 inches
• Width: 297.5 mm / 11.71 inches
• Depth: 373 mm / 14.69 inches
• Weight: 33.4 kg / 73.63 lbs
