Description

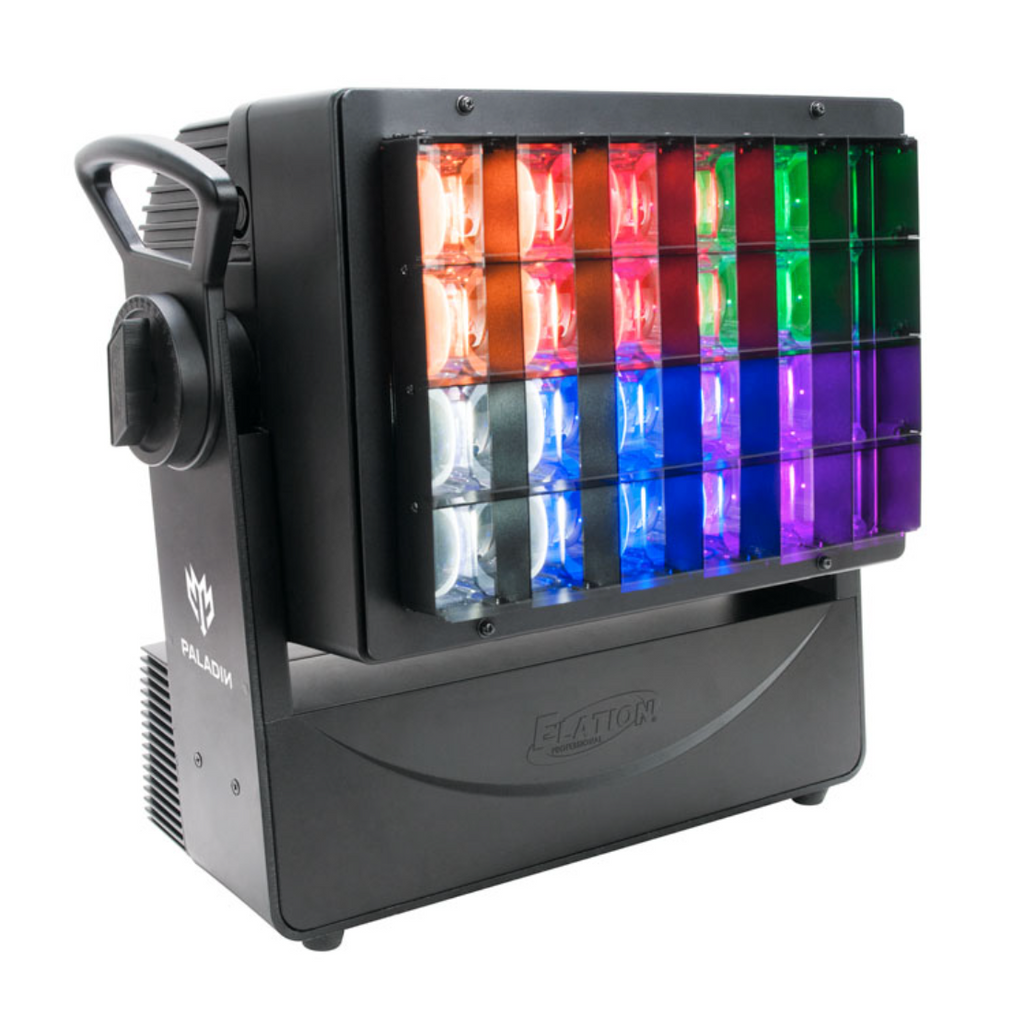

PALADIN™ is an IP65 rated strobe wash blinder luminaire with motorized zoom. Featuring (24) high power 40W 4-in-1 RGBW LEDs, 6° to 32° motorized zoom, manual tilt adjustment, pixel zone control, 64 color presets and 15 unique color macros, electronic strobe, 16-bit dimming and variable dimming curve modes, DMX and RDM (Remote Device Management) protocol support, IP rated 5pin DMX and IP65 Power Cable in/out connections, (4) button LCD control display panel, and a multi-voltage universal auto switching power supply (100-240v). Optional barn doors, egg crate, and dual quick-lock omega bracket rigging accessories available.
Features:
Specifications:
SOURCE:
(24) 40W 4-in-1 RGBW LEDs
50,000 Hour Average LED Life
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA:
79,252 LUX 7,362 FC @9.8' (2m) (6º Full On)
6,848 LUX 636 FC @9.8' (2m) (32º Full On)
COLOR:
RGBW
EFFECTS:
Pixel Zone Control
64 Color Presets and 15 Unique Color Macros
Electronic Strobe16-Bit Dimming
Variable and Dimming Curve Modes
CONTROL / CONNECTIONS:
6º To 32º Motorized Zoom
Manual 210º Tilt Movement
Multiple DMX Channel Modes (33 total channels)
Adjustable Refresh Rate and Gamma Brightness
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5Pin DMX in / Out
IP65 Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT:
Length: 16.4" (478mm)
Width: 11.2" (233mm)
Vertical Height: 16.0" (407.5mm)
Weight: 46.0" (20.9 kg)
ELECTRICAL / THERMAL:
AC 100-240V - 50/60Hz
990W Max Power Consumption
5ºF to 113ºF (-15ºC to 45ºC)
APPROVAL / RATINGS:
CE | cETLus | IP65
Features:
- IP65 Rated Strobe Wash Blinder Luminaire
- (24) 40W 4-in-1 RGBW LEDs
- Motorized Zoom and Manual Tilt Adjustment
- Pixel Zone Control
- 64 Color Presets and 15 Unique Program Macros
- 16-Bit Dimming and Variable Dimming Curves
- Flicker Free for TV and FILM
- Adjustable Refresh Rate Frequency and GAMMA
- Rugged Die-Cast Aluminum Exterior

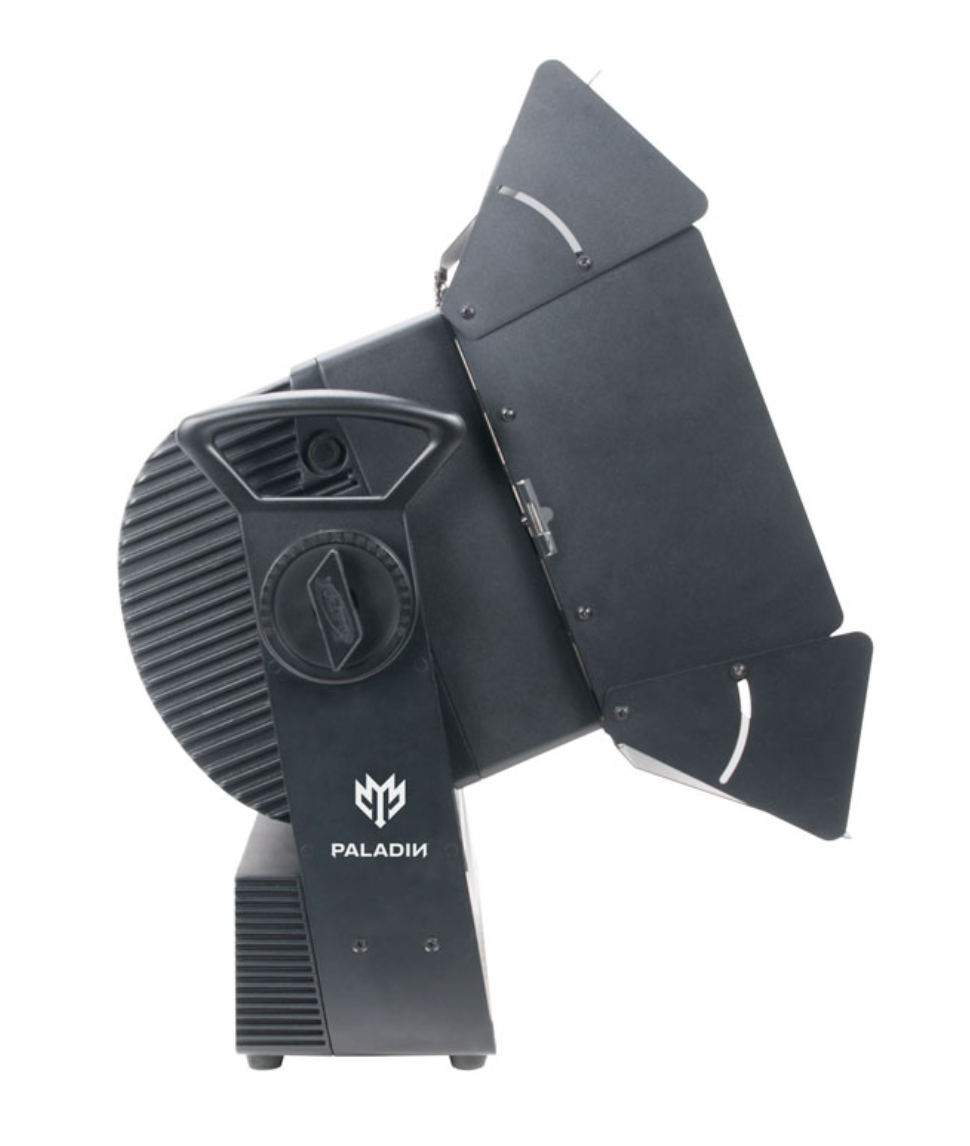

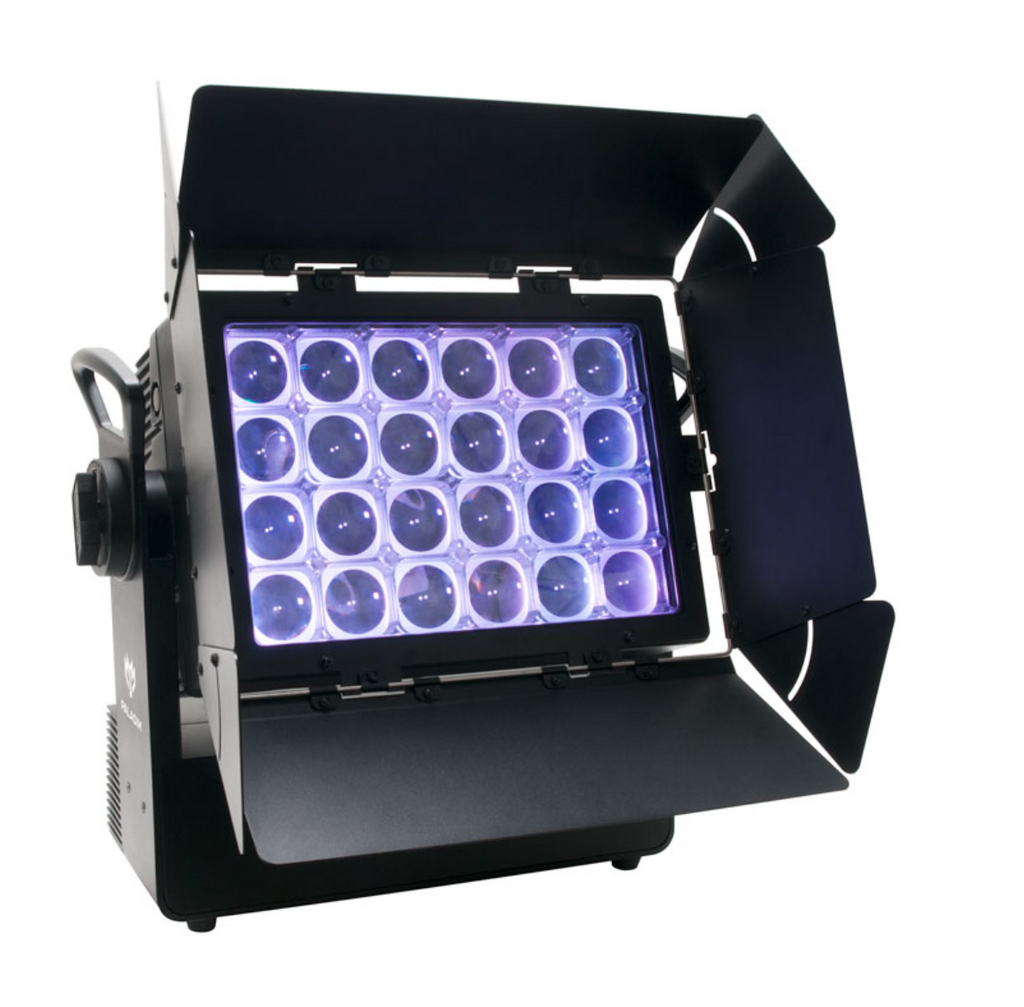

- Optional Barn Doors and Egg Crate Available
- Dual Quick-Lock Omega Bracket Rigging Option
Specifications:
SOURCE:
(24) 40W 4-in-1 RGBW LEDs
50,000 Hour Average LED Life
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA:
79,252 LUX 7,362 FC @9.8' (2m) (6º Full On)
6,848 LUX 636 FC @9.8' (2m) (32º Full On)
COLOR:
RGBW
EFFECTS:
Pixel Zone Control
64 Color Presets and 15 Unique Color Macros
Electronic Strobe16-Bit Dimming
Variable and Dimming Curve Modes
CONTROL / CONNECTIONS:
6º To 32º Motorized Zoom
Manual 210º Tilt Movement
Multiple DMX Channel Modes (33 total channels)
Adjustable Refresh Rate and Gamma Brightness
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5Pin DMX in / Out
IP65 Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT:
Length: 16.4" (478mm)
Width: 11.2" (233mm)
Vertical Height: 16.0" (407.5mm)
Weight: 46.0" (20.9 kg)
ELECTRICAL / THERMAL:
AC 100-240V - 50/60Hz
990W Max Power Consumption
5ºF to 113ºF (-15ºC to 45ºC)
APPROVAL / RATINGS:
CE | cETLus | IP65
