PALADIN CUBE 9 x 15W RGBW IP65 Wash

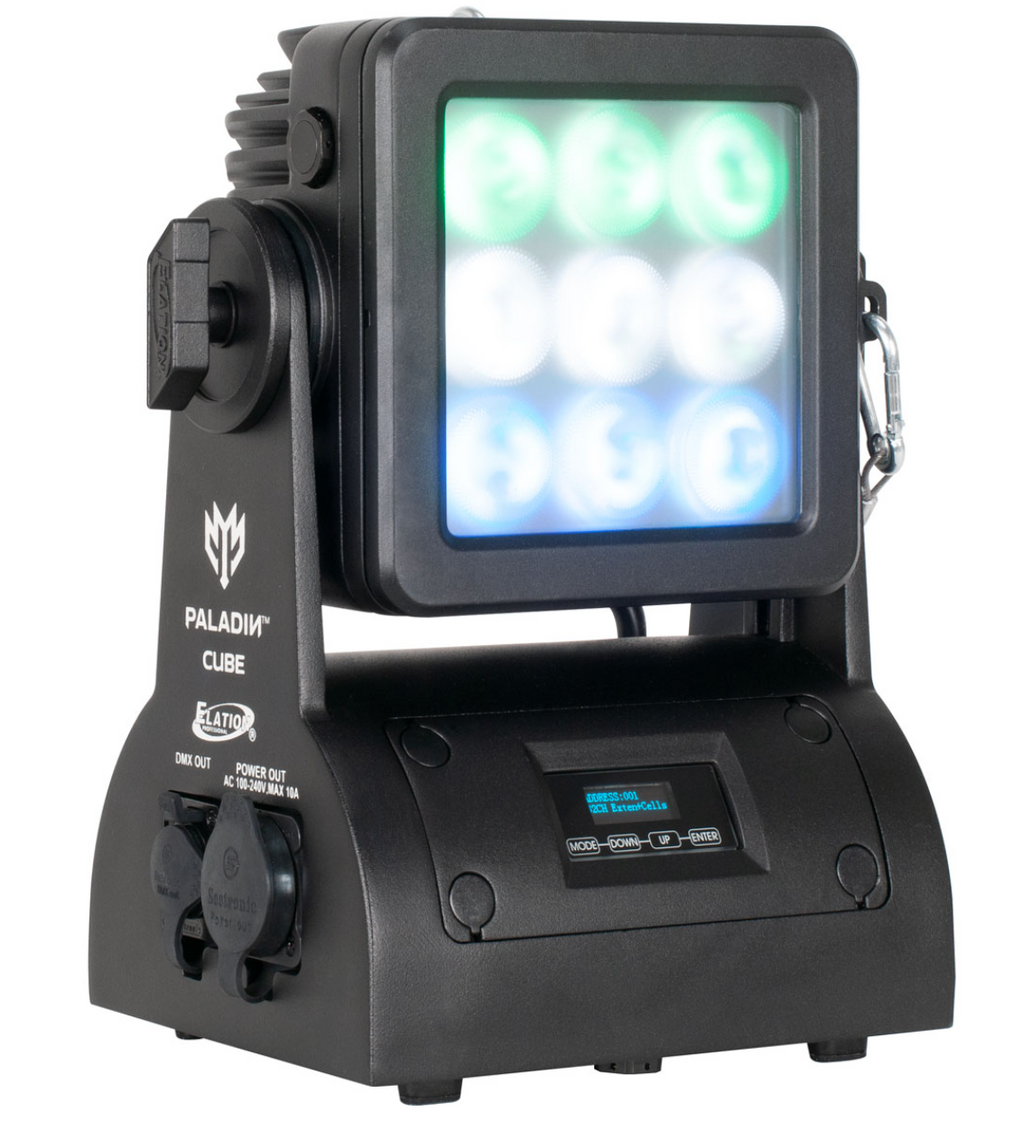

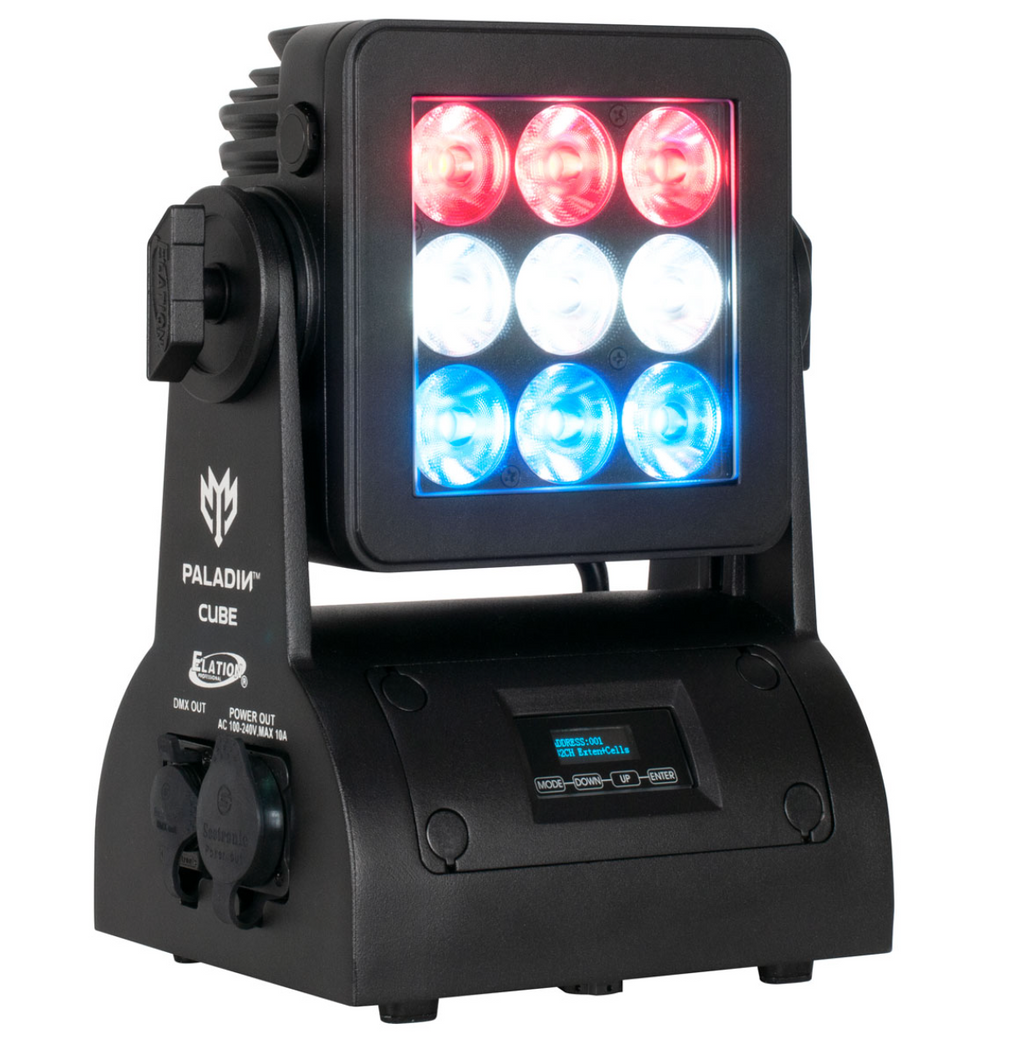

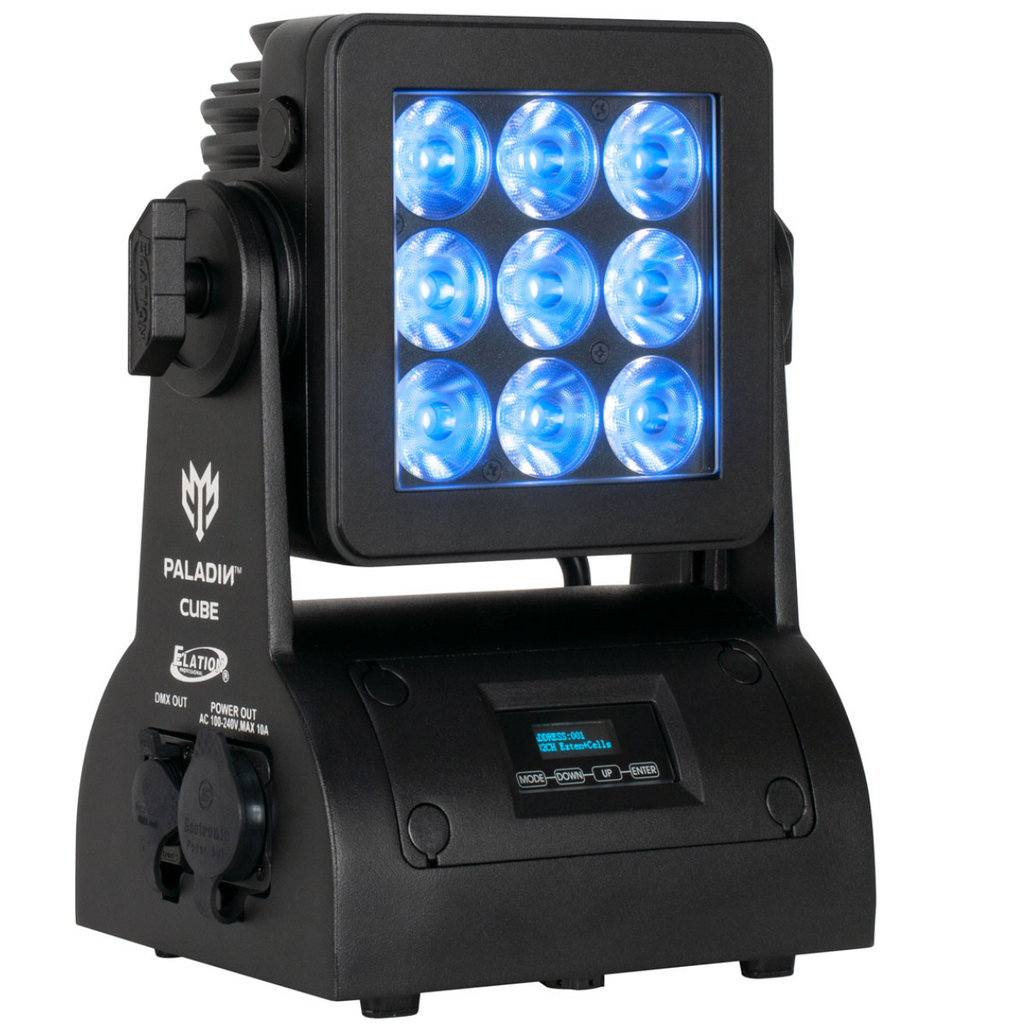

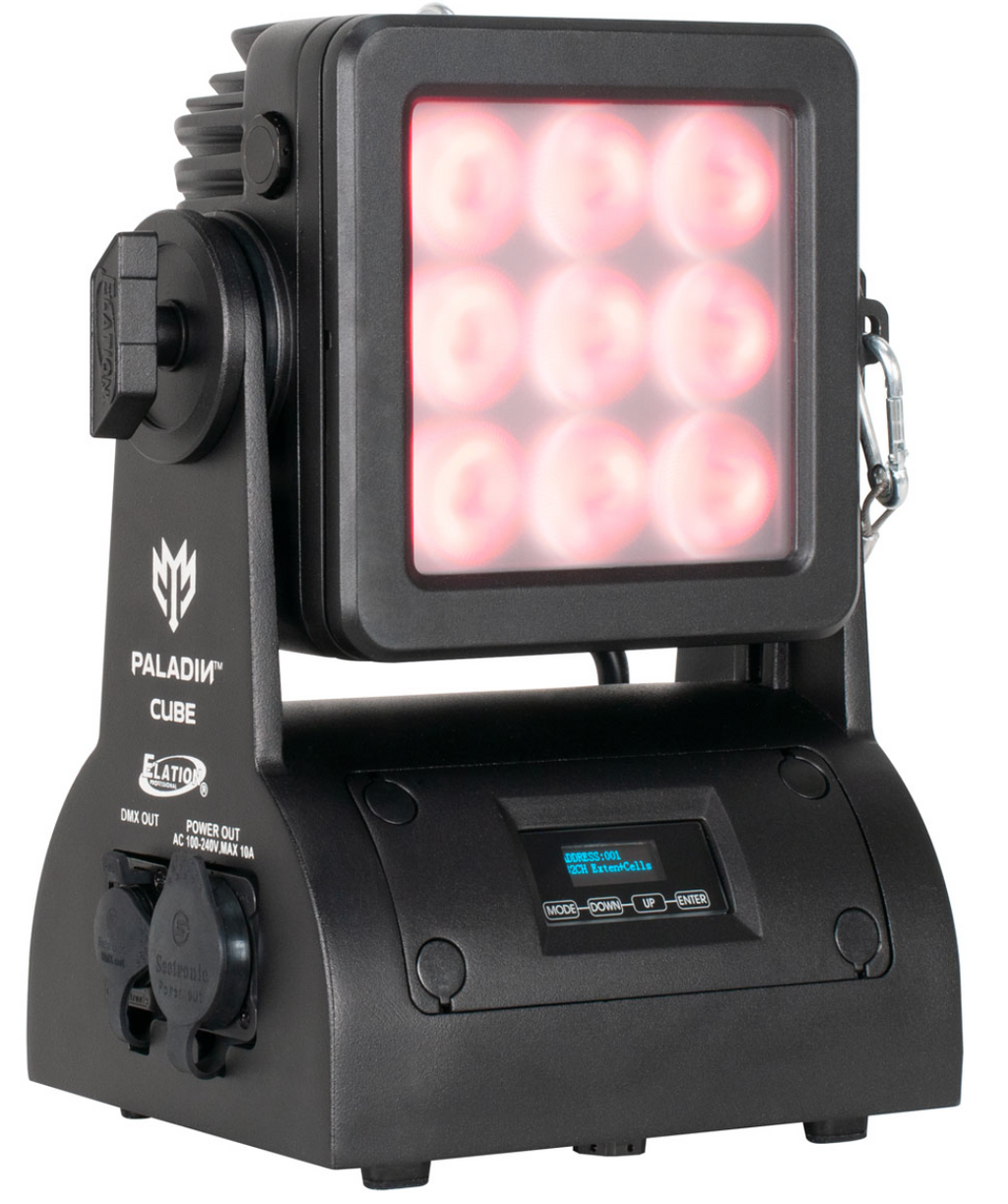

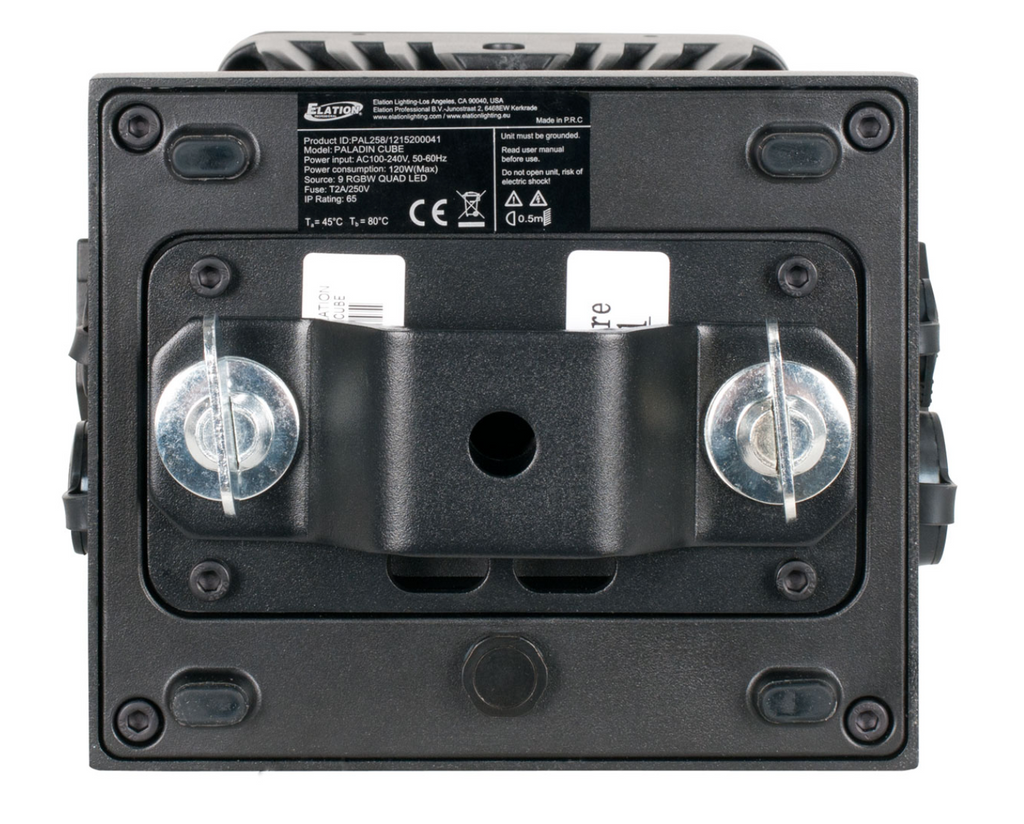

The PALADIN CUBE™ is a compact and powerful outdoor floodlight for a wide variety of applications. Using 9x15W RGBW cells it provides a total output of up to 3,200 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or be hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN CUBE also a versatile effects fixture or audience blinder.

Features:

• 135W RGBW Flood Light
• 3x1 Control
• Rugged IP65 Design for Outdoor Events
• Floor Standing or Mountable in any Orientation

Specifications:
SOURCE
9x 15W RGBW LED Emitters
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
6,000K Color Temperature
3,200 Total Lumen Output
14.1° Beam 24.7° Field Angle (without diffuser)

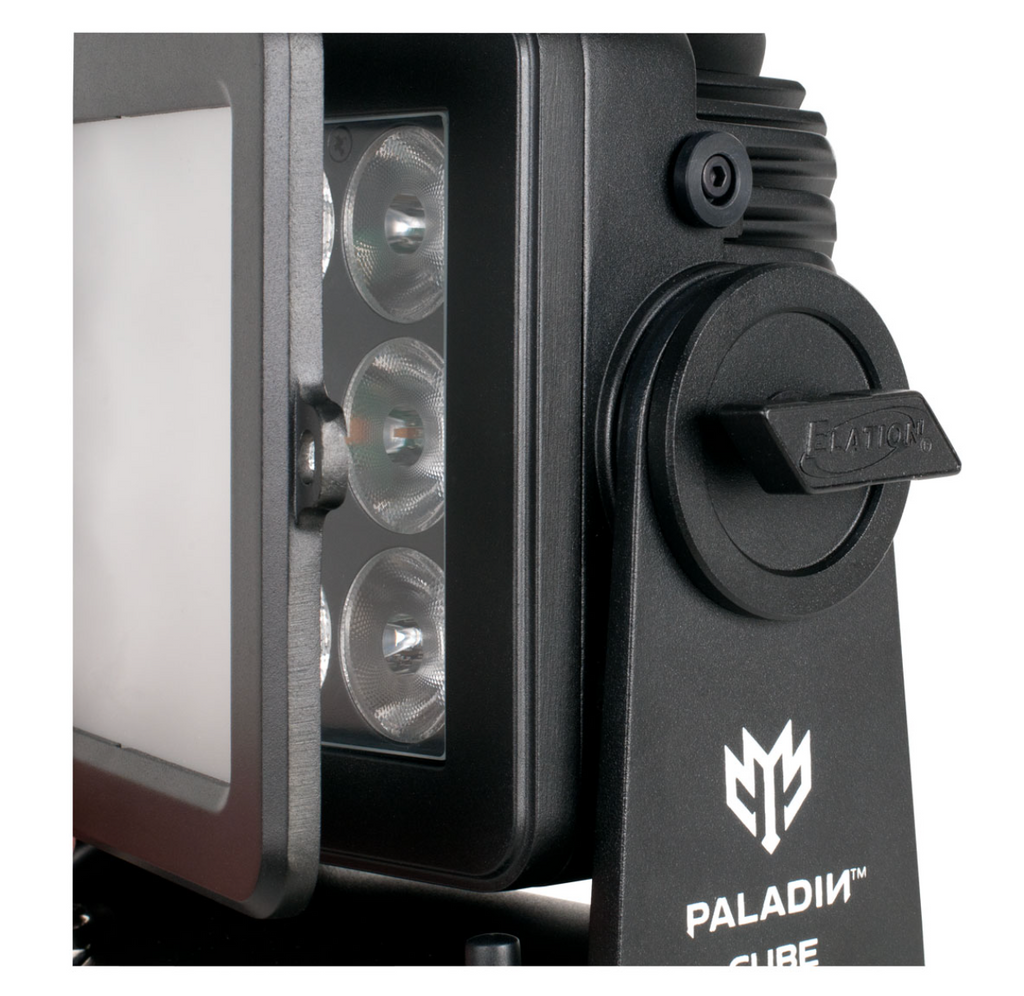

30° Beam 59° Field Angle (with diffuser)

CONTROL / CONNECTIONS
11 DMX Channel Modes (32 Total Channels)
3x1 Cell Control
DMX, RDM Protocol Support
Standalone and Primary/Secondary Operation

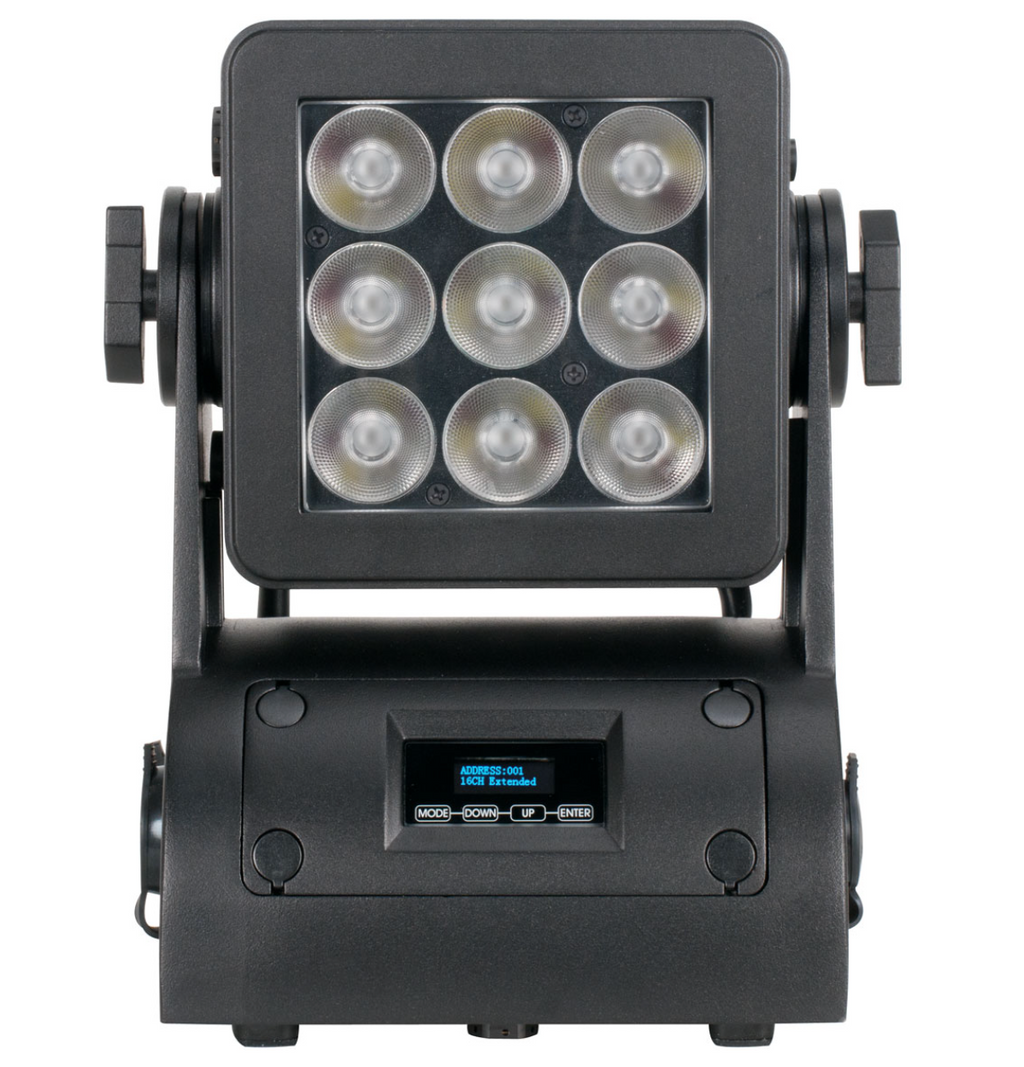

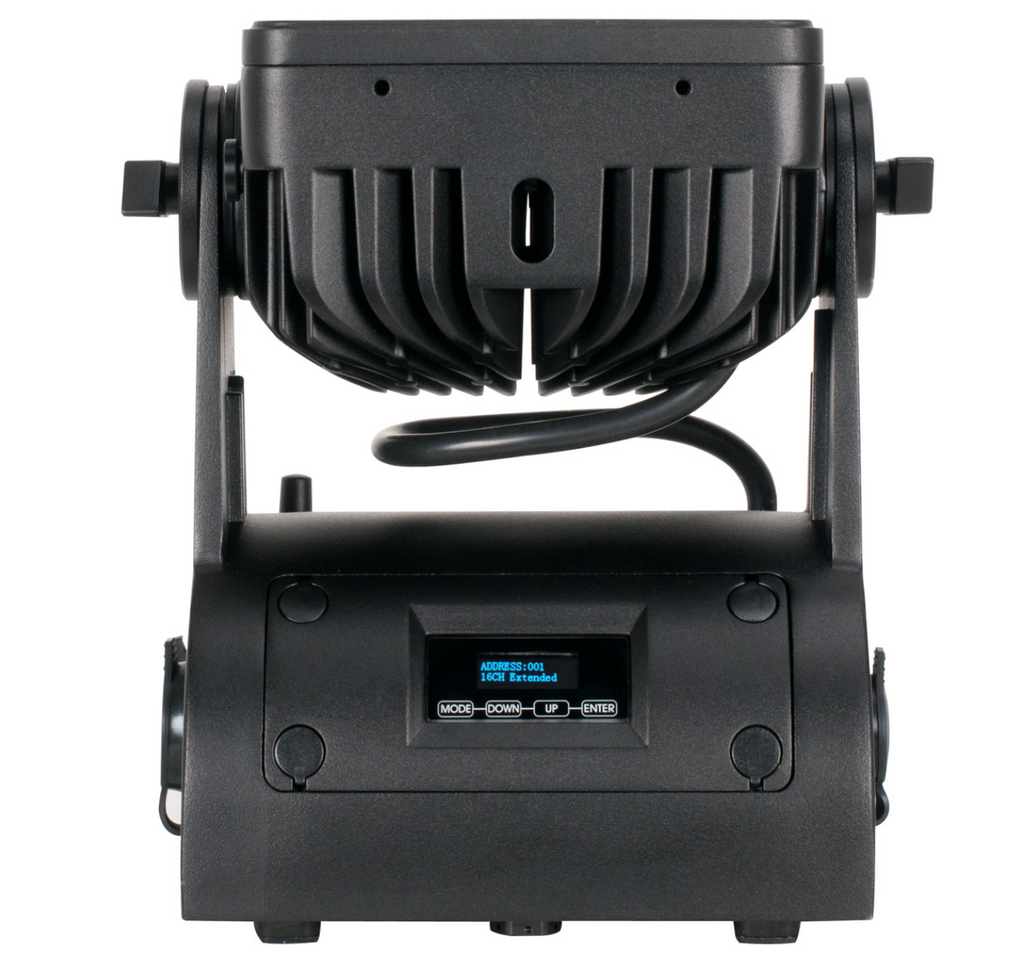

4 Button OLED Control Display
Elation’s E-FLY™ Internal Wireless DMX Transceiver

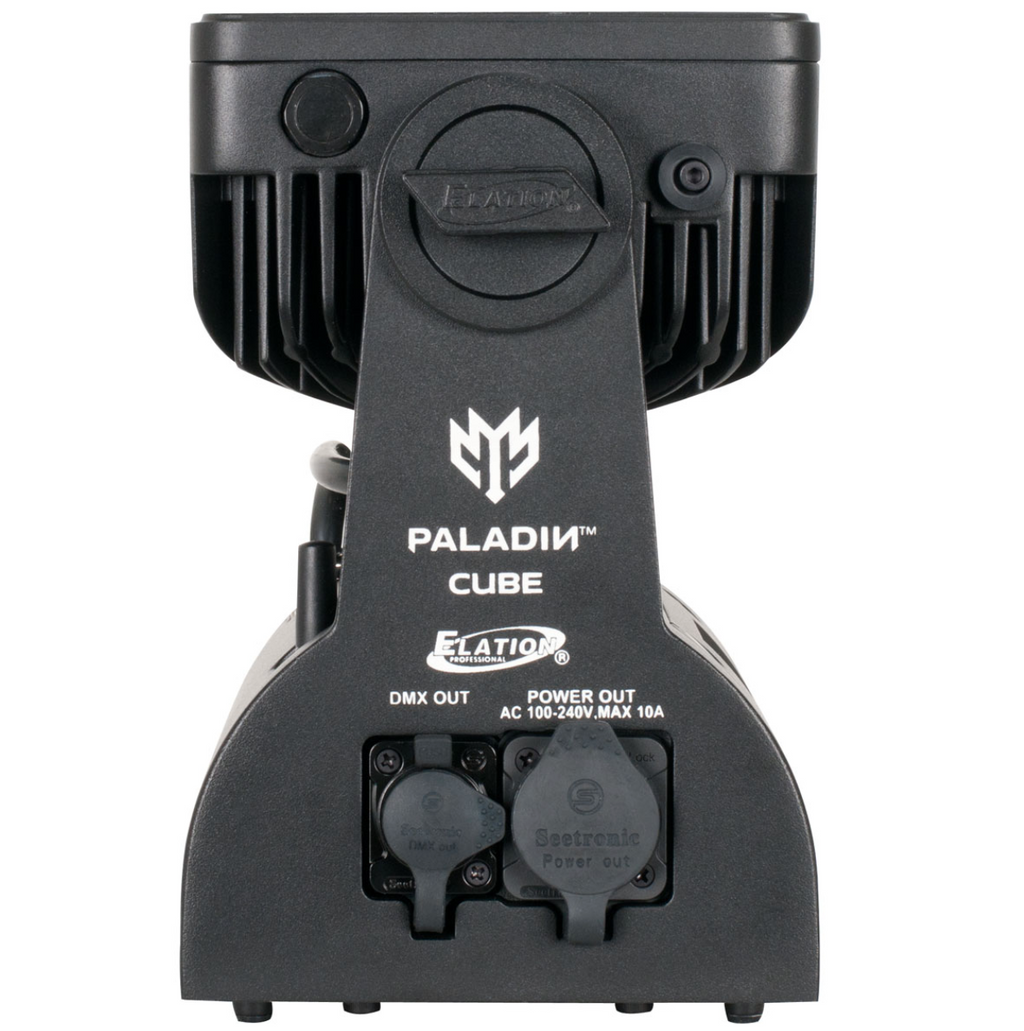

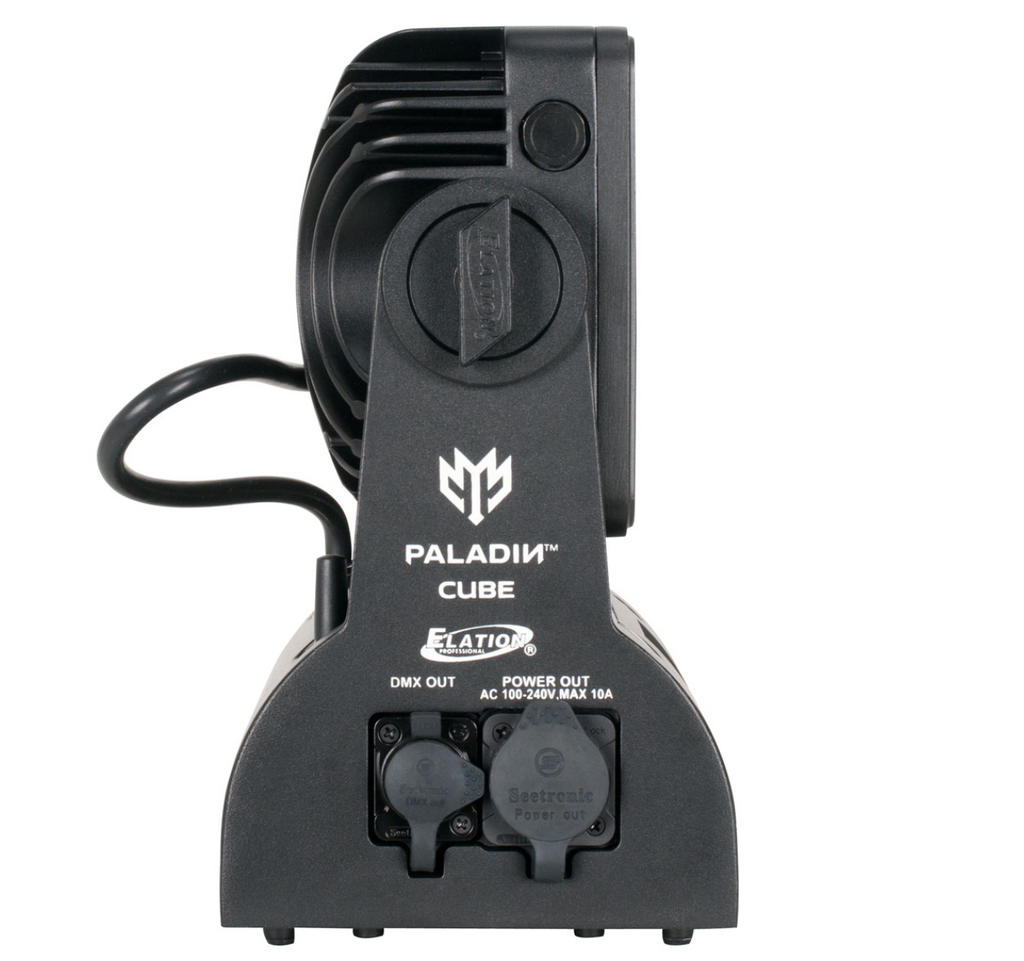

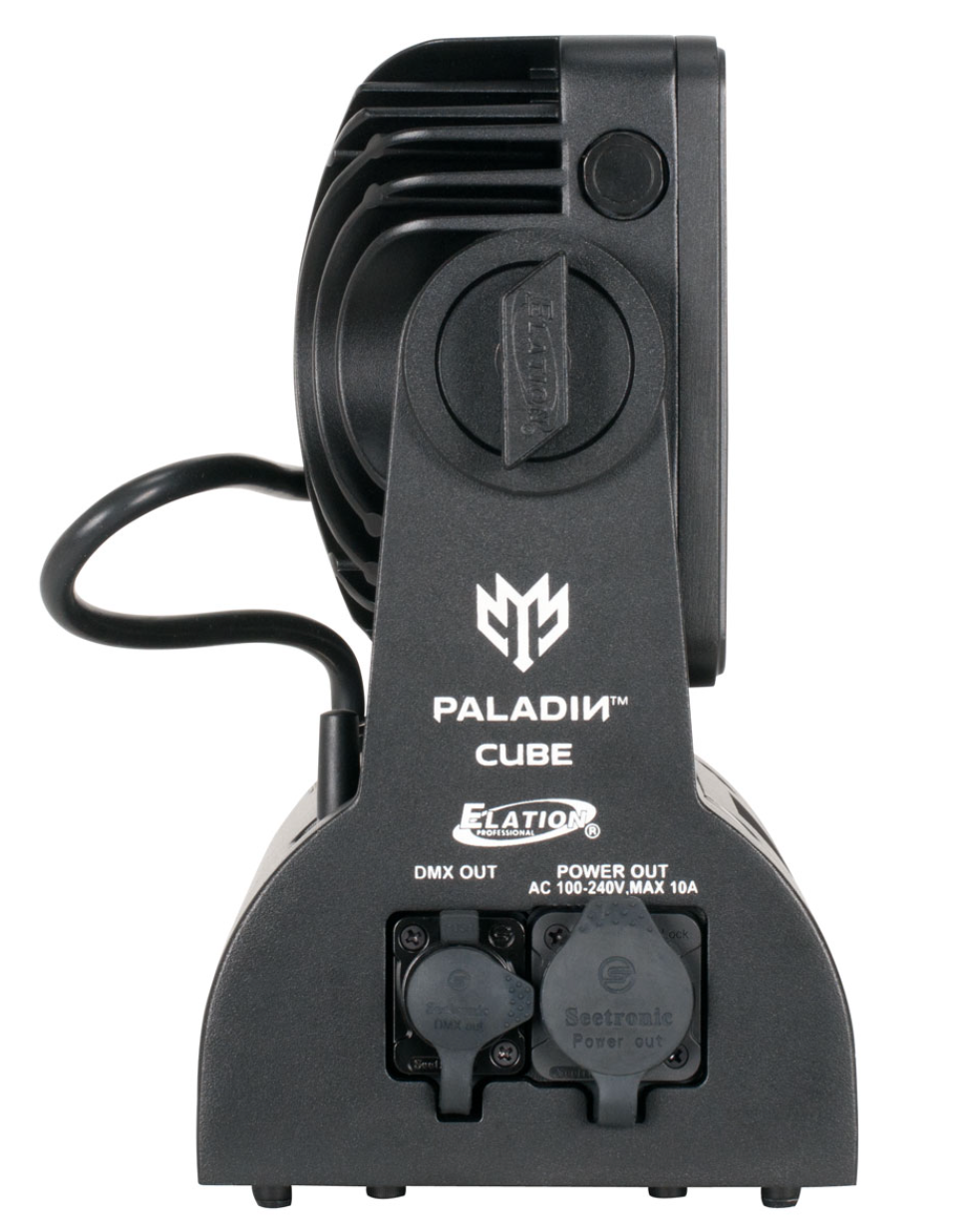

IP65 5pin DMX In/Out
IP65 Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 7.8” (199.11mm)
Depth: 5.4” (139mm)
Height: 7.8” (248.04mm)
Weight 10.5 lbs. (4.75kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
120W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP65

Specifications and documentation subject to change without notice.
