Description

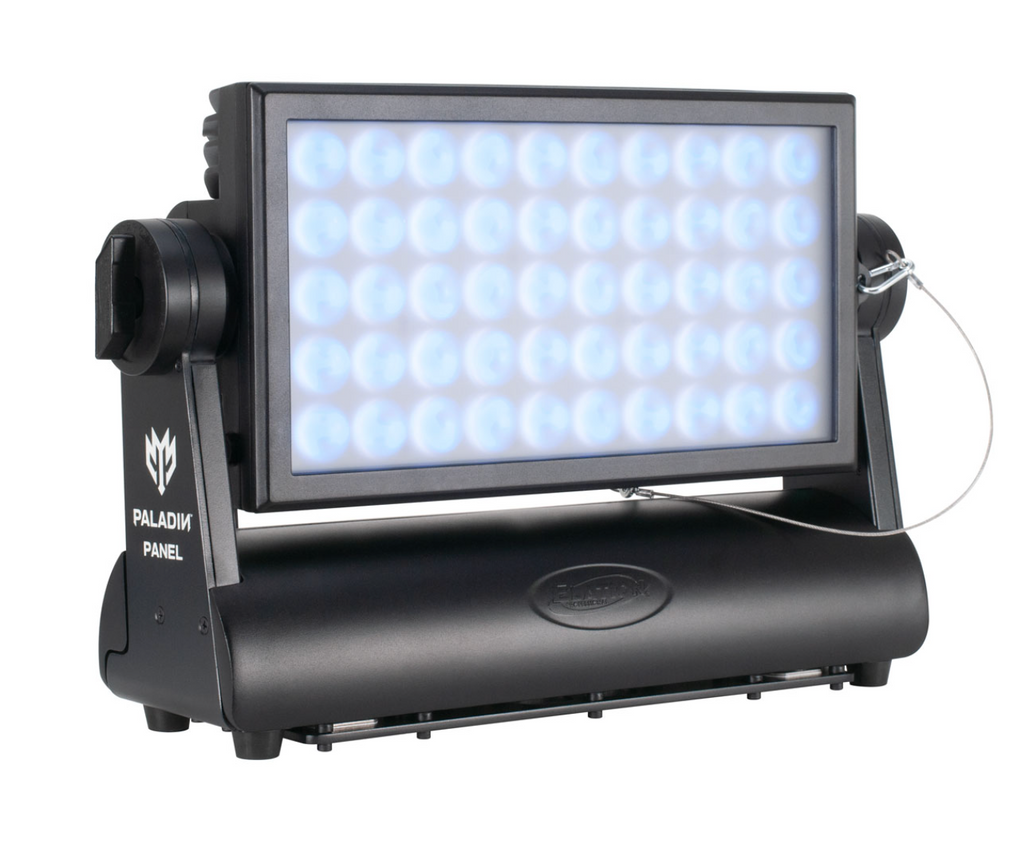

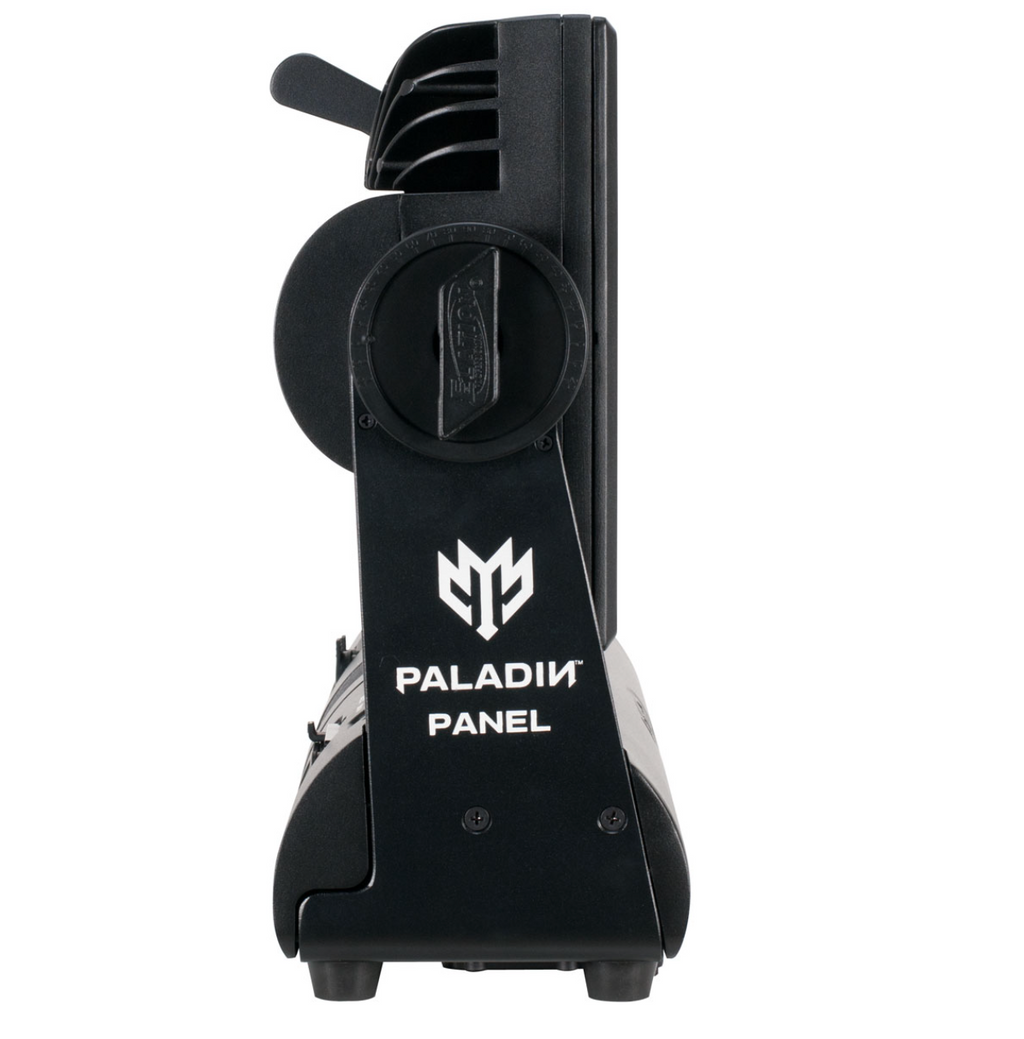

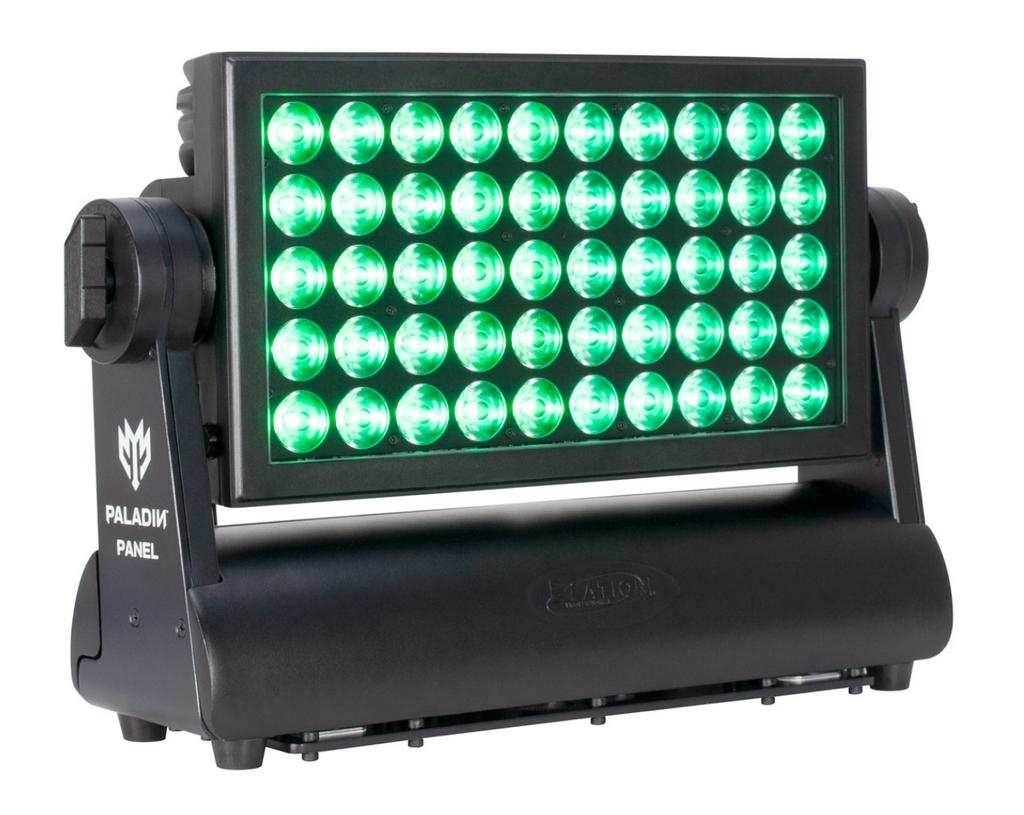

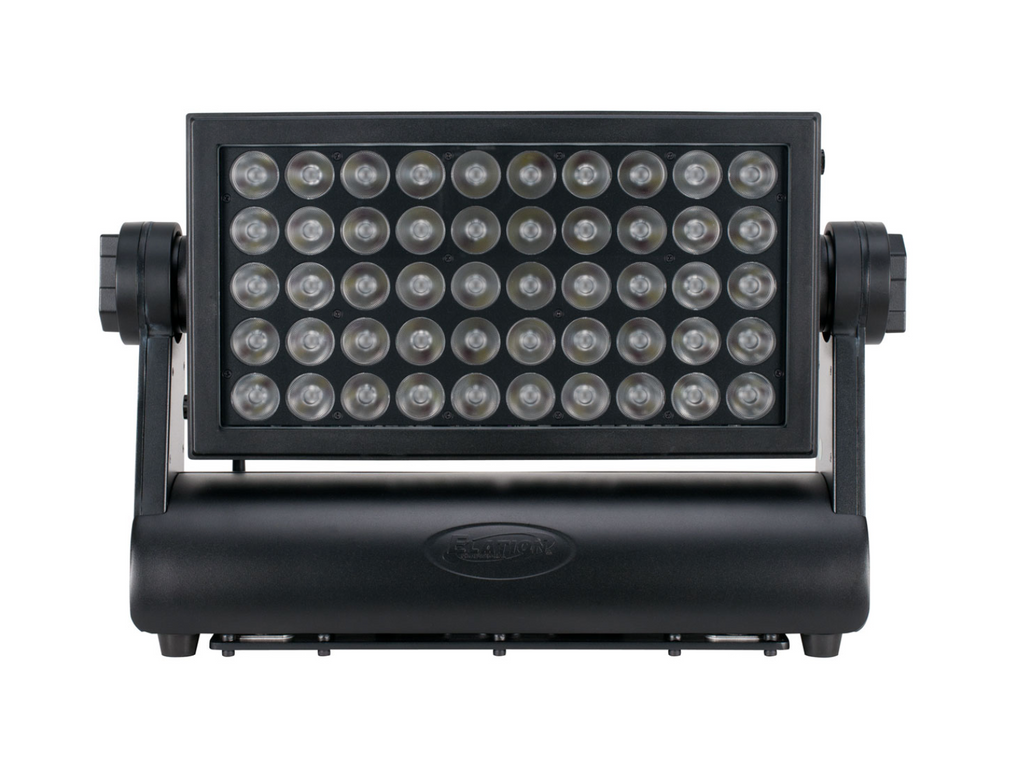

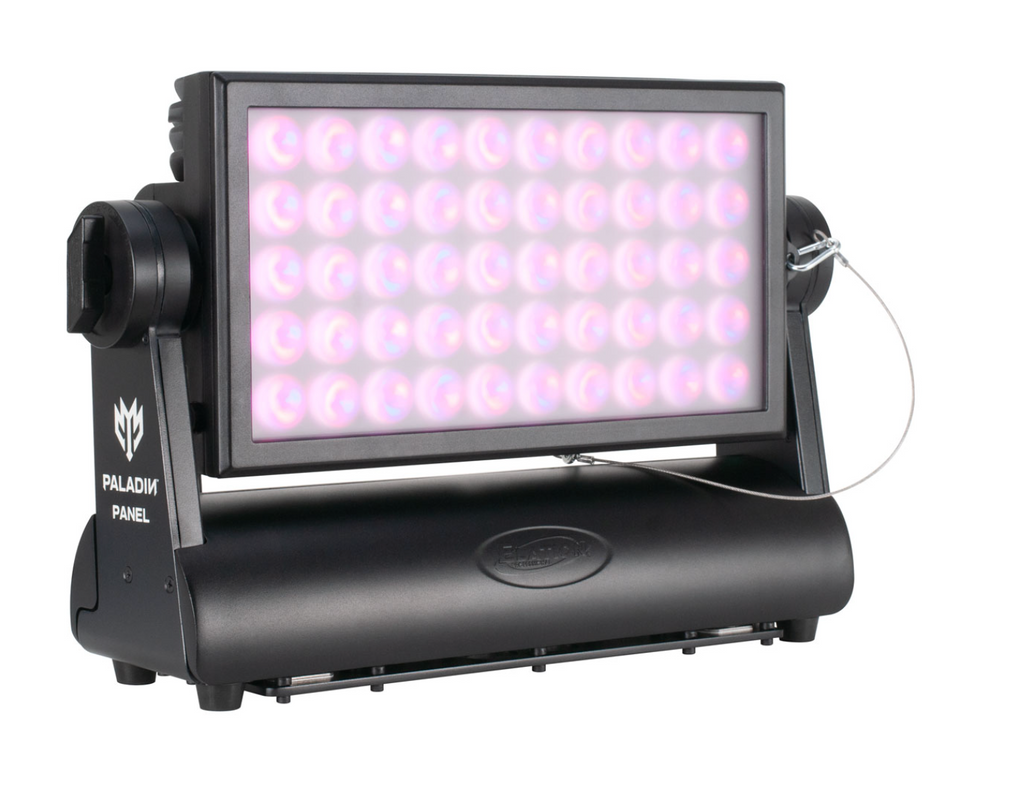

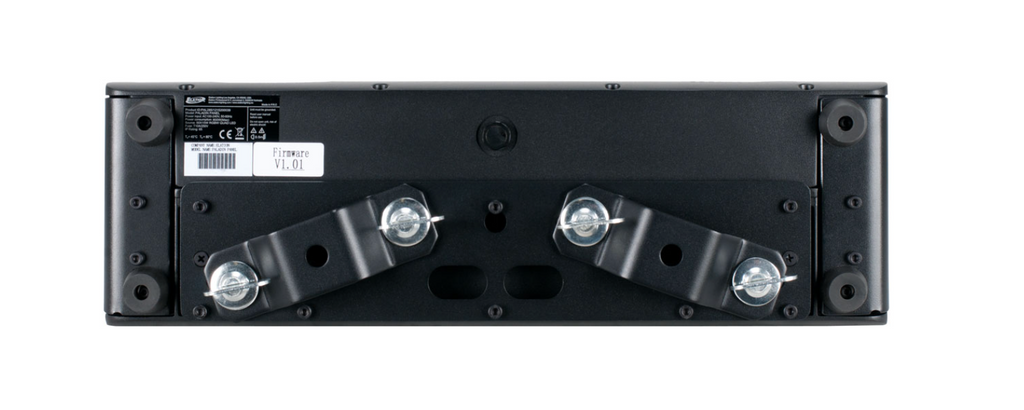

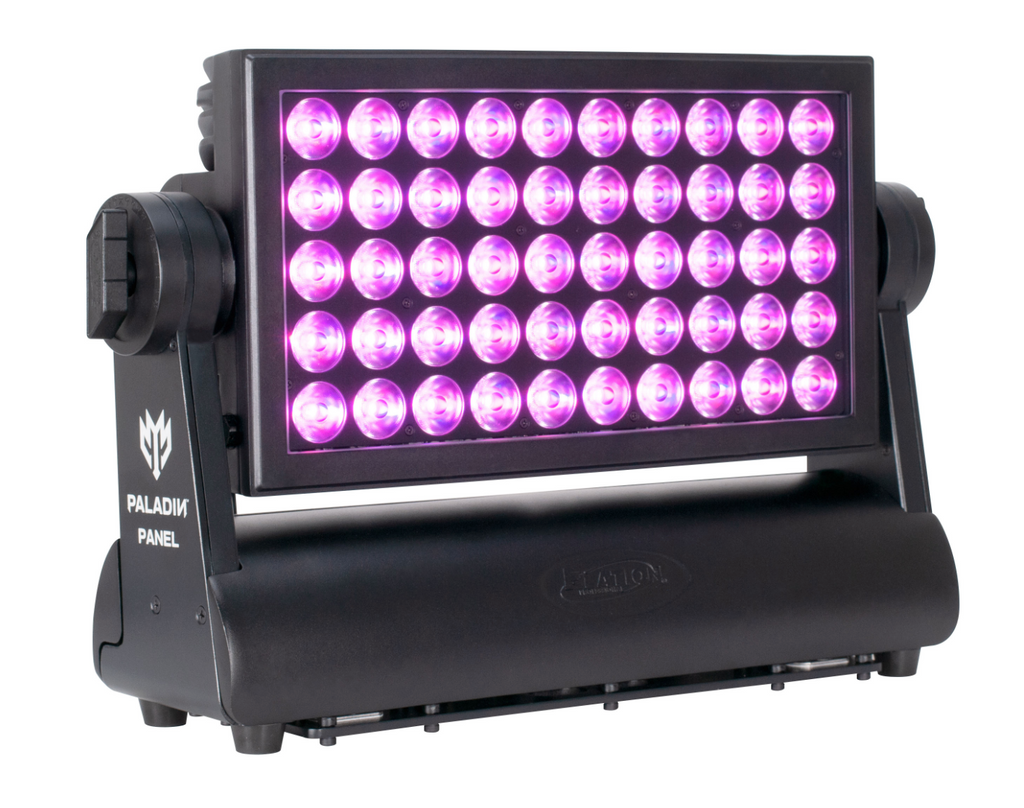

The PALADIN PANEL™ is a compact and powerful outdoor floodlight for a wide variety of applications. Using 50x15W RGBW cells it provides a total output of up to 20,000 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or be hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN PANEL also a versatile effects fixture or audience blinder.
Features:
Specifications:
SOURCE
50x 15W RGBW LED Emitters
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
6,000K Color Temperature
20,000 Total Lumen Output
13.5° Beam 24.3° Field Angle (without diffuser)
25.2° Beam 50.1° Field Angle (with diffuser)
CONTROL / CONNECTIONS
11 DMX Channel Modes (88 Total Channels)
5x2 Cell Control

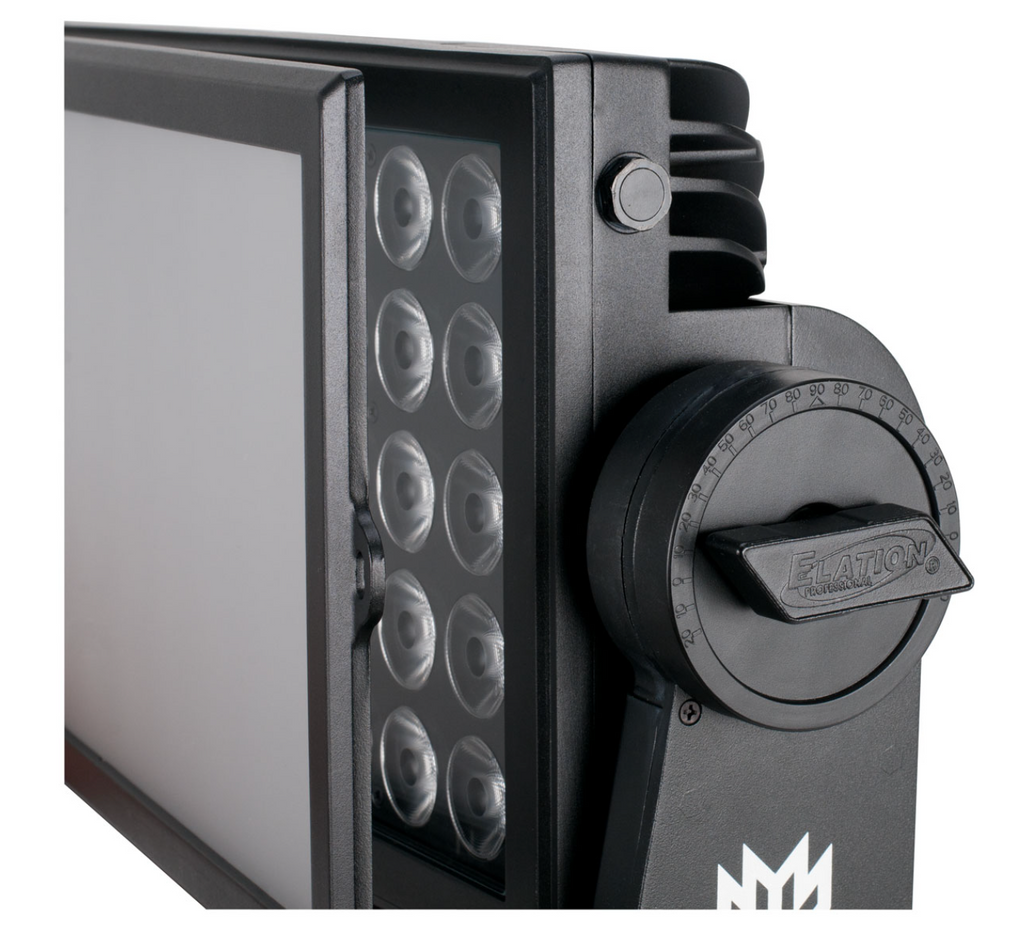

Manual Tilt Adjustment
DMX, RDM Protocol Support
Standalone and Primary/Secondary Operation

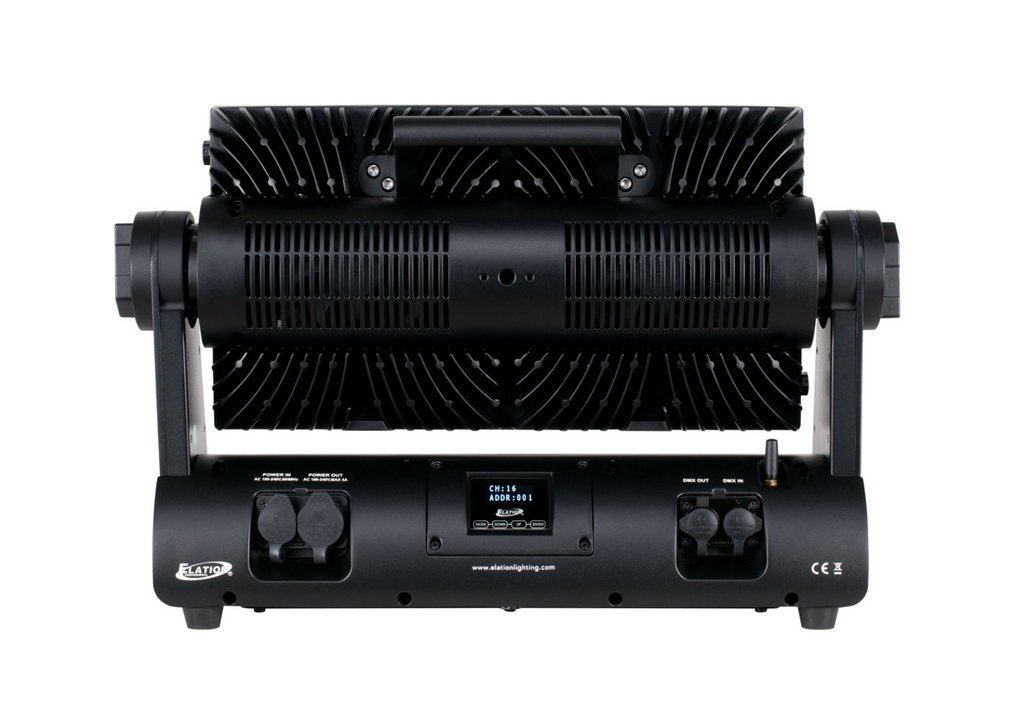

4 Button OLED Control Display
Elation’s E-FLY™ Internal Wireless DMX Transceiver
IP65 5pin DMX In/Out
IP65 Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 20.9” (531mm)
Width: 5.8” (148mm)
Height: 13.7” (348mm)
Weight 33.0 lbs. (15kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
800W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
FIRMWARE UPDATES
Current Version: V1.2.0
Click HERE for software updates
INCLUDED ITEMS:
PAL285/60°LK- 60° Lens Kit
Locking Power Cable
Specifications and documentation subject to change without notice.
Features:
- 750W RGBW Flood Light

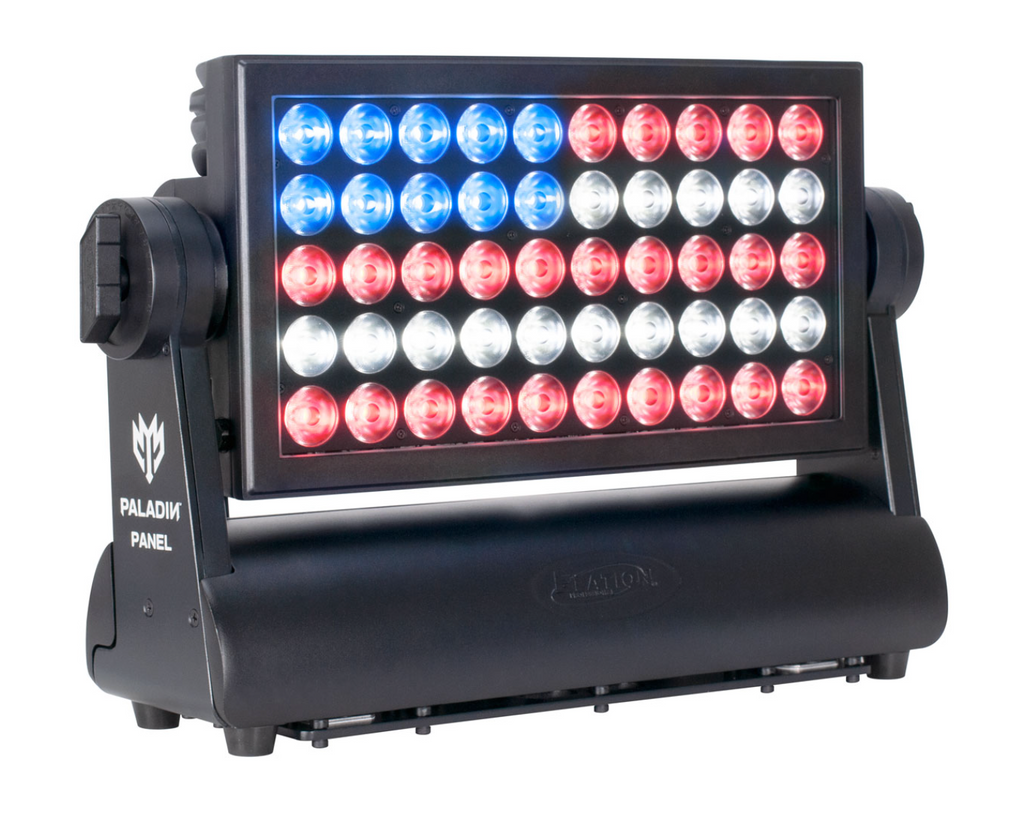

- 5x2 Cell Control
- Rugged IP65 Design for Outdoor Events
- Floor Standing or Mountable in any Orientation
- Optional 100 degree Lens Kits Available*

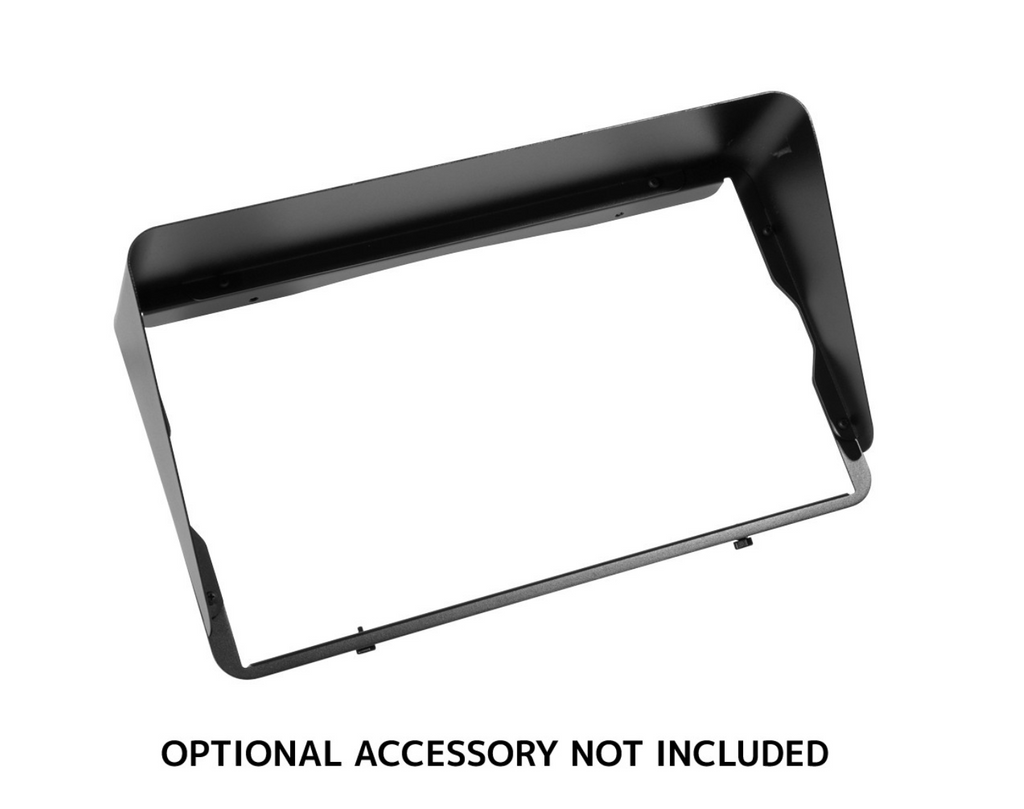

- Optional Barn Door Kit Available*
