Elation PIXEL DRIVER 1000IP IP65 Pixel Bar Driver ARTNET/SACN in/out 170 Pixels

Save $140.00
Elation LightingSKU: PIX301

Price:
Sale price$560.00 Regular price$700.00
 More payment options

Description

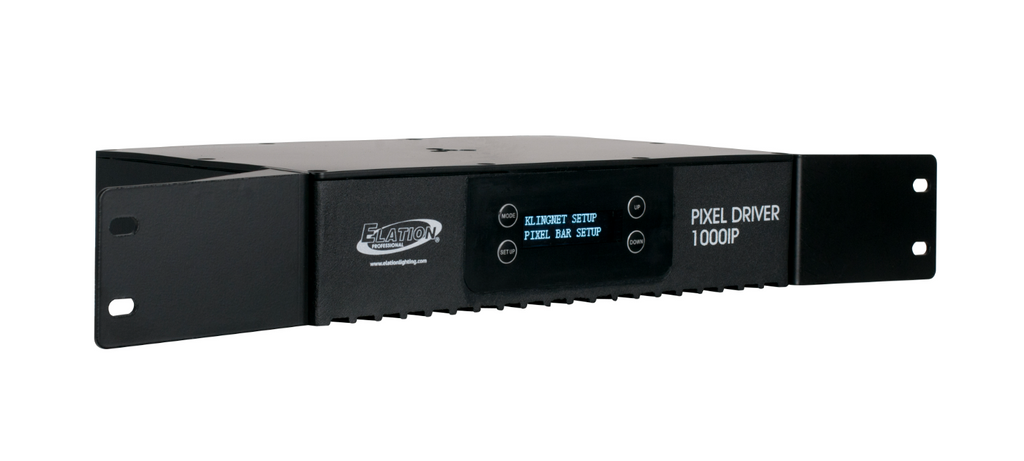

PIXEL DRIVER 1000IP™ is designed specifically for the Elation PIXEL BAR 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 1,020 max pixels via ArtNet, sACN or Kling-Net protocols.

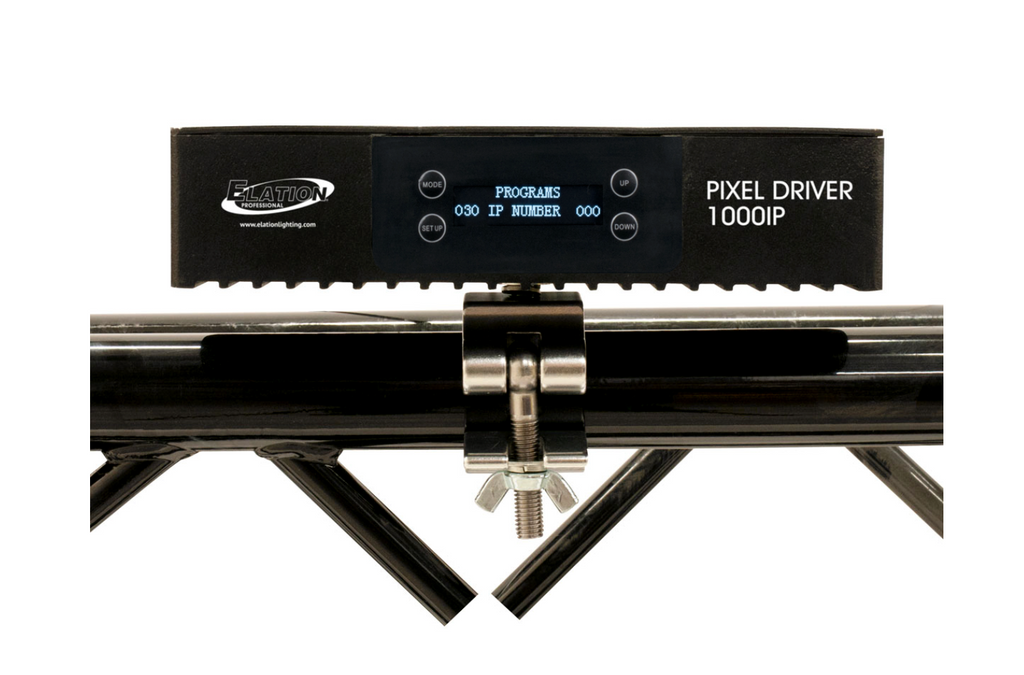

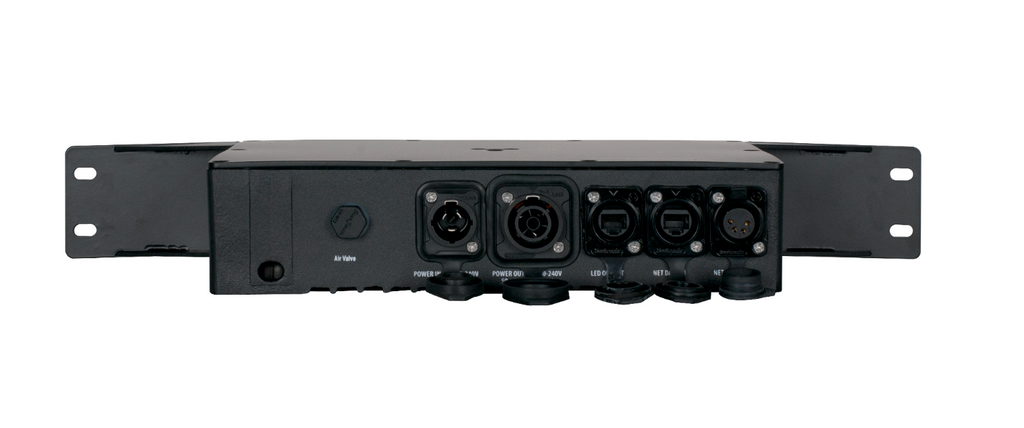

The PIXEL DRIVER 1000IP features a rugged IP65 housing, universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and a proprietary 4-pin, IP65 XLR type output that supplies power and data to the pixel bars connected to it, (Cables available in lengths from 2 to 50 meters). The PIXEL DRIVER 1000IP can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a Pro clamp (not included).

Features:
  • Power/Data Supply for Elation PIXEL BAR 30IP, PIXEL BAR 60IP, PIXEL BAR 120IP, PIXEL TAPE 16IP, PIXEL TAPE 40IP and PIXEL WASH 40IP
  • IP65 Rated
  • Simple On-Board Manual Dimming and Strobe Control
  • Kling-Net, Art-Net, and sACN Protocol Support
  • 1,020 Max Pixel Mapping via ArtNet, sACN or Kling-Net (Max 34pcs Pixel Bar 30IP or 17pcs Pixel Bar 60IP or 8pcs Pixel Bar 120IP per port)
  • 19-inch Rack or Truss Mounting Options
  • Multi Unit Linking via RJ45 Ethernet connections
  • (1) 4-pin Output
  • Power/Data Combo Cables (sold separately)*
*Available in lengths from 2-50 meters

Specifications:
CONTROL / CONNECTIONS
Manual RGB Mode
Internal Programs
Art-NET | sACN | Kling-NET
2 RJ45 Ethernet Ports
1 4-pin Power/Data Output

SIZE / WEIGHT
Length: 18.9” (480mm) * With Rack Ears
Width: 8.0” (203.5mm)
Height: 2.5” (64 mm)
Weight: 8 lbs. (3.6kg)

ELECTRICAL
AC Input 100-240V - 50/60HZ, 2.2A
DC Output 24V, 8.4A
IP65 rated locking power IN/Out
200W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)

APPROVALS
CE | cETLus

Specifications and documentation subject to change without notice.
