Description

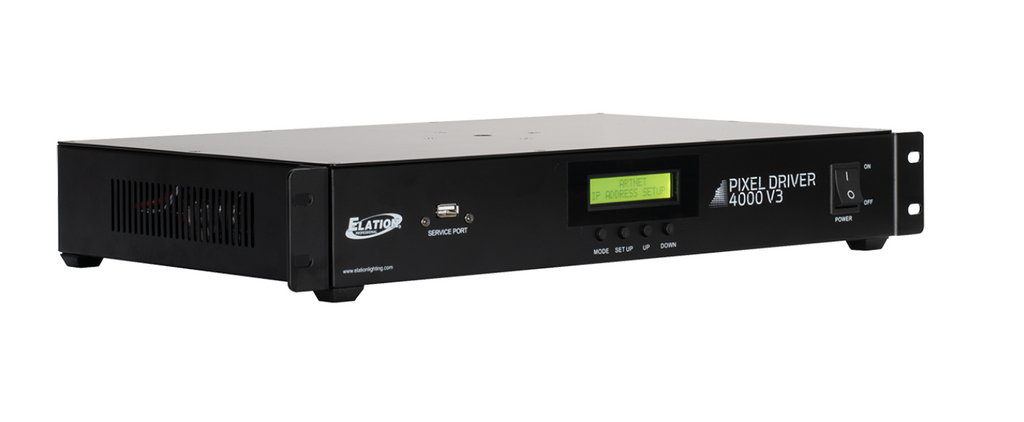

PIXEL DRIVER 4000 V3™ is designed specifically for the Elation PIXEL TAPE 16IP, 40IP, PIXEL BAR 30IP, 60IP, 120IP series and PIXEL WASH 40IP, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels, 1,020 pixels per port, via Kling-Net, Art-Net and sACN (streaming ACN) protocols.

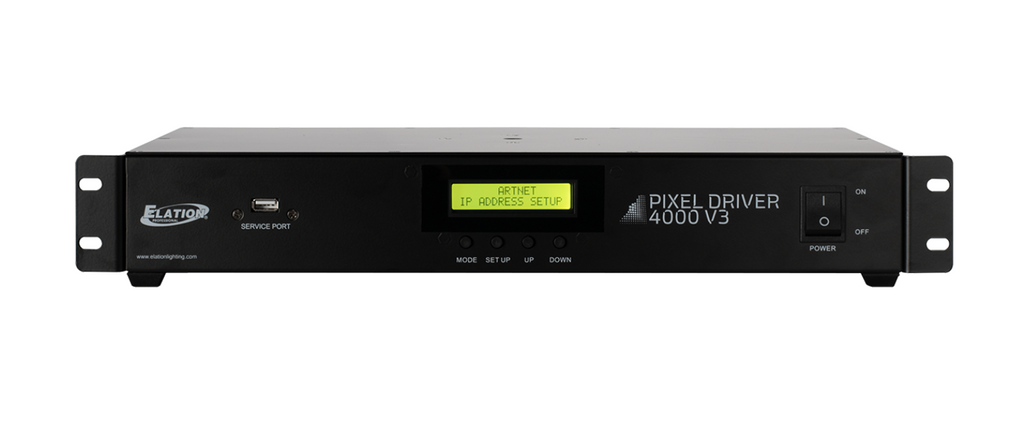

The PIXEL DRIVER 4000 V3 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel product, (available in lengths from 2 to 50 feet). The PIXEL DRIVER 4000 V3 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Features:
Specifications:
CONTROL / CONNECTIONS
Manual RGB Mode
Internal Programs
Art-NET | sACN | Kling-NET
2 RJ45 Ethernet Ports

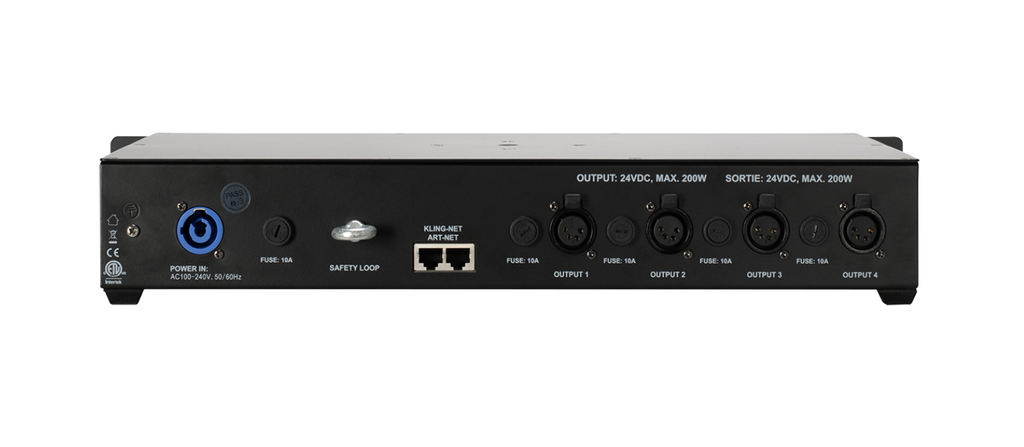

4 4pin Power/Data Outputs
USB Port for Firmware Updates
SIZE / WEIGHT
Length: 11.8” (301mm)
Width: 18.9” (480mm)
Height: 2.9” (74mm)
Weight: 10.8 lbs. (4.9kg)
ELECTRICAL
AC 100-240V - 50/60HZ
800W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
APPROVALS
CE | cETLus (Pending)
Specifications and documentation subject to change without notice.
The PIXEL DRIVER 4000 V3 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel product, (available in lengths from 2 to 50 feet). The PIXEL DRIVER 4000 V3 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Features:
- Power/Data Supply for Elation PIXEL TAPE 16IP, 40IP, PIXEL BAR 30IP, 60IP, 120IP, and PIXEL WASH 40IP
- Simple On-Board Manual Dimming and Strobe Control
- Kling-Net, Art-Net, and sACN Protocol Support
- 4,080 Max Pixel Mapping via Kling-Net, Art-Net and sACN (1,020 Pixels per Port)
- 10 Artnet / sACN Universes per Port (1,020 Pixels per Port)
- 19-inch (483mm) Rack Mount Kit Included

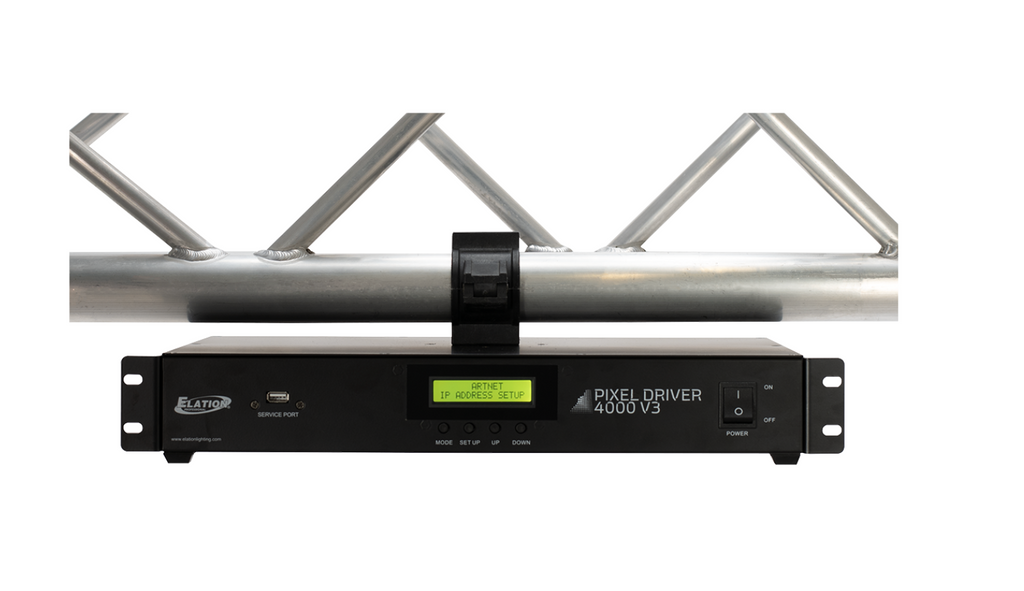

- Truss Mounting Options (clamp not included)
- Multi Unit Linking via RJ45 Ethernet
- (4) Outputs

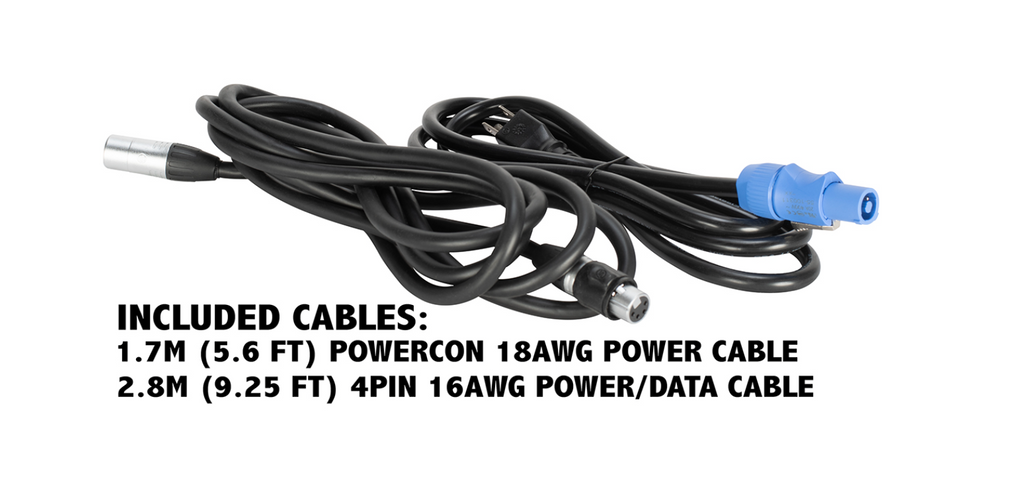

- 5.65ft (1.7m) Power Cable Included
- 9.25ft (2.8m) 16AWG Power/Data Cable Included

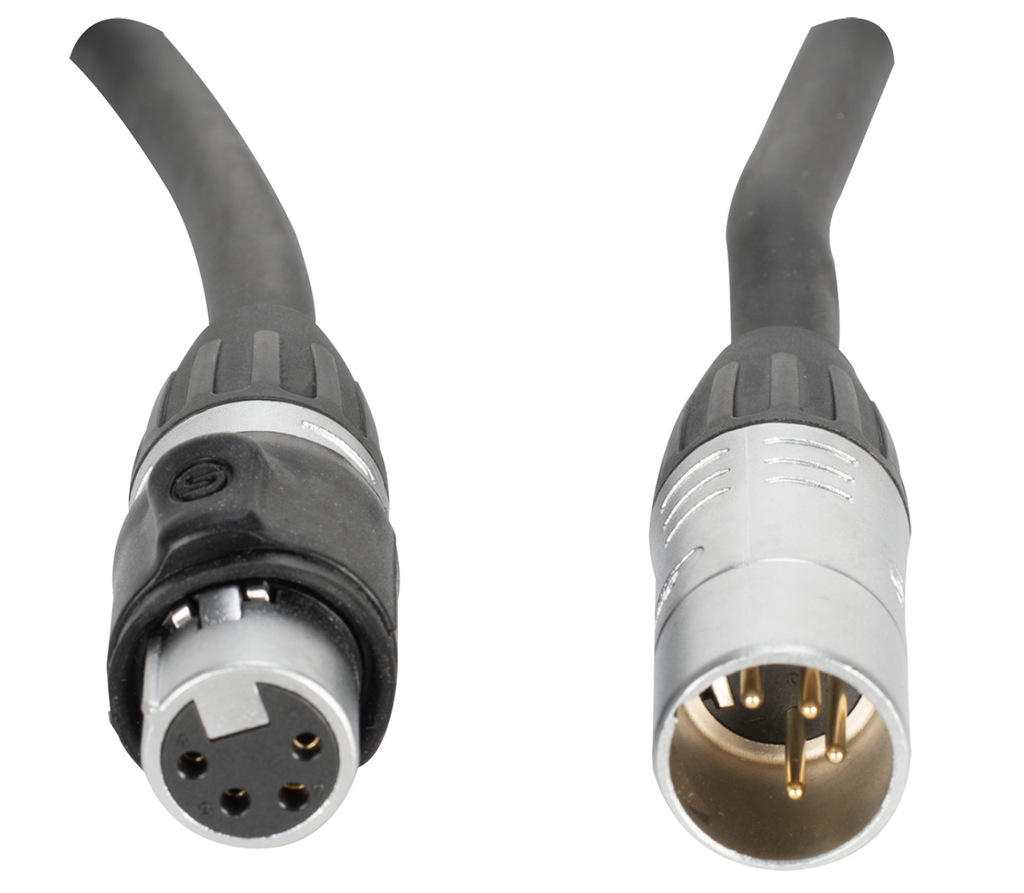

- Proprietary IP Rated Power/Data Combo Cables*
Specifications:
CONTROL / CONNECTIONS
Manual RGB Mode
Internal Programs
Art-NET | sACN | Kling-NET
2 RJ45 Ethernet Ports
4 4pin Power/Data Outputs
USB Port for Firmware Updates
SIZE / WEIGHT
Length: 11.8” (301mm)
Width: 18.9” (480mm)
Height: 2.9” (74mm)
Weight: 10.8 lbs. (4.9kg)
ELECTRICAL
AC 100-240V - 50/60HZ
800W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
APPROVALS
CE | cETLus (Pending)
Specifications and documentation subject to change without notice.
