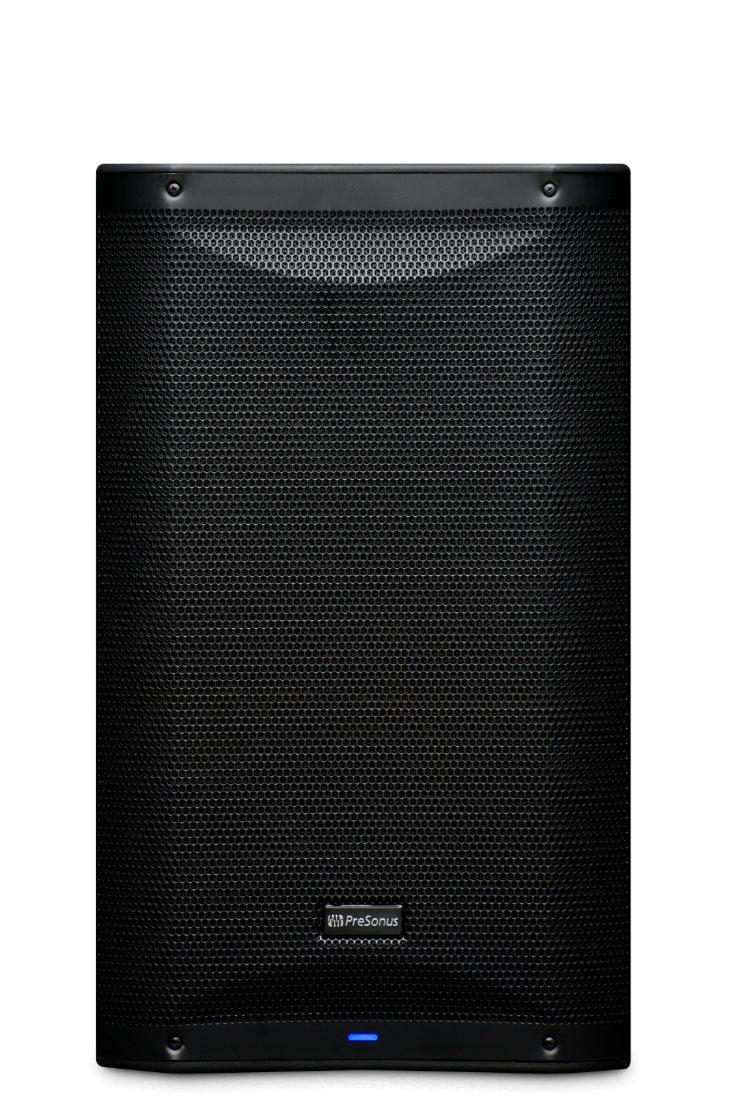

PreSonus AIR12
Roll over image to zoom in Click on image to zoom
PreSonus AIR12

PreSonus AIR12

PreSonusSKU: AIR12
Price:
$599.99

Description



AIR12

AIR12: Versatile, customizable, and easy to transport.

Compact and lightweight, AIR12 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car. Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR12 gives you all the power and tools you need for both mobile and installed sound.




Features

Main Components

  • Hybrid “best of both worlds” 1,200W (dynamic) power amp configuration:
    • Low-frequency driver: 900W, Class D amplifier
    • High-frequency driver: 300W, Class A/B amplifier
    • Maximum SPL 123 dB peak
  • 1.35-inch, high-frequency compression driver
  • 12-inch woofer with a 2.5-inch voice coil
  • 51 Hz to 20 kHz frequency response
  • 123 dB SPL (max)
  • 90° x 60° (horizontal x vertical) dispersion pattern
  • Onboard mixer with two combo XLR and ¼” inputs and one summed balanced output

Controls

  • Easy-to-use DSP performance presets:
    • DJ — music playback
    • FOH — normal front-of-house o Enhance – enhanced low end for a warmer sound
    • Monitor — optimized for floor wedge placement
    • Speech — applications where speech intelligibility is critical
  • EQ
    • HF response ±10 dB
    • LF response ±10 dB
  • Additional presets and controls:
    • Stand — for mounting on a pole or tripod
    • Bracket — for wall-mount applications
    • Suspend — for suspended applications

Convenience Features

  • Multi-angle enclosure for mains or monitor-wedge applications
  • Comfortable ergonomic handle
  • 35 mm pole socket with 7.5? downward tilt
  • M10 rigging points for suspended installation
  • Defeatable front-panel LED
  • Rugged plastic enclosure
  • Tour-grade, 1.2 mm steel grille


Technical Specifications
Acoustic Performance
Configuration Active 2-way
Frequency Range (-3 dB) 51 Hz to 20 kHz
Frequency Range (-10 dB) 48 Hz to 20 kHz
Crossover Frequency 1.6 kHz
Maximum Output 123 dB SPL
Nominal Dispersion (HxV) 90?x 60?
Transducer
LF Driver 12” (2.5” voice coil)
HF Driver 1.35” compression
Amplifier
Amplifier Type Class D (LF), Class AB (HF)
Total System Power 1,200W dynamic
LF Power 900W
HF Power 300W
Connections and Controls
Inputs 2 x XLR/TRS mic/line combo; 1 x 1/8” TRS stereo
Outputs 1 x XLR Mix Out
DSP
DSP Features LCD screen with EQ and multiple presets
Enclosure
Cabinet H-PP molded
Grille 1.2 mm steel
Handles 1 top, 1 side
Flypoints 2 top, 1 back
Pole Mounting Dual position (0?, 7.5?)*
Dimensions (H x W x D) 24.4" x 14.2" x 13.8" (619 mm x 360 mm x 351 mm)
Weight 37.5 lbs (17 kg)
Power
Power Input 115V / 230V ~50/60 switchable
Maximum Current 3.5A (230V-50 Hz), 7A (120V)
As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.

*AIR Speaker mounts are compatible with M20-threaded screw poles with a diameter of 33 mm and a length of 31.5"
