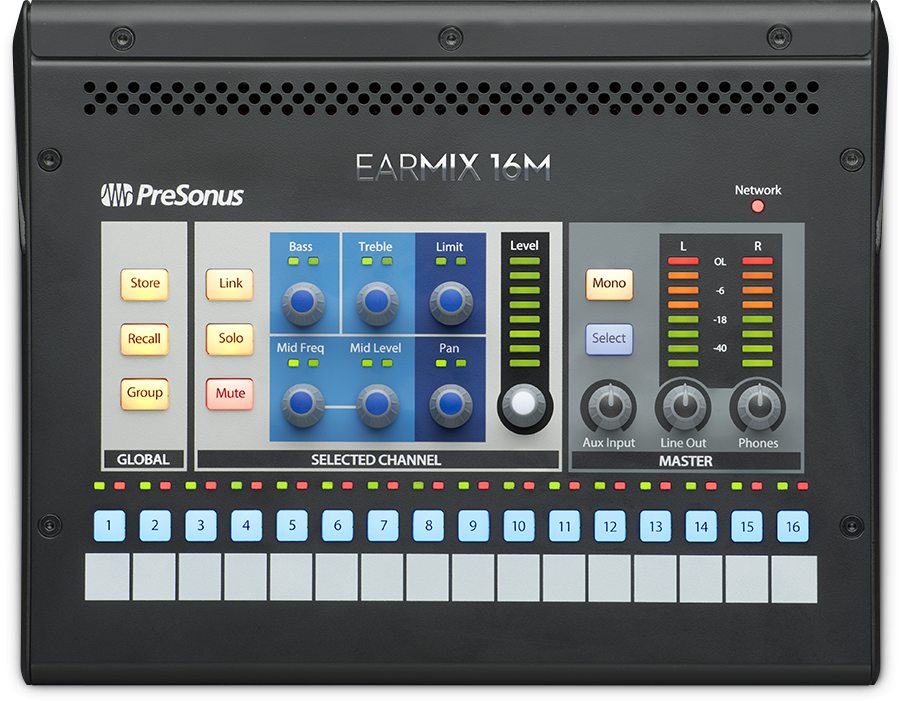

PreSonus EarMix 16M
Roll over image to zoom in Click on image to zoom
PreSonus EarMix 16M

PreSonus EarMix 16M

PreSonusSKU: EARMIX-16M
Price:
$449.99

Description



EarMix 16M

Professional, networked personal monitoring.

The PreSonus® EarMix 16M is an advanced 16-channel personal monitor mixer designed to provide a high-quality, expandable, networked monitoring solution for stage, installed sound systems, and studio recording. We gave the EarMix 16M professional sound quality, easy-to-use mixing features, and a high-performance headphone amplifier to ensure you have the monitoring tools you need for any situation.




Features

Analog Input/Output

  • 1/8-inch stereo aux input
  • 2 balanced ¼-inch TRS line outputs
  • ¼-inch TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors

Meters, Controls, and Processing

  • 3-band EQ with sweepable mid frequency on all channels and main mix
  • Limiter on all channels and main mix
  • Stereo channel linking
  • Channel grouping
  • Solo and Mute
  • Mix scene Store and Recall; store up to 16 mix scenes locally
  • 16 signal-present and clip LEDs (one for each input)
  • 8-segment stereo output meter
  • Channel Level rotary control with 8-segment level indicator
  • Aux Input level control
  • Independent Monitor (line out) and Phones level controls
  • Routing setup from StudioLive® Series III consoles and UC Surface

Digital

  • 16 mono channels of input via AVB networking
  • 2 AVB Ethernet ports
  • 24 bit, up to 48 kHz operation

Power

  • External 24 VDC power supply (included)
  • Support for PoE power

Physical

  • Mic stand mounting option (sold separately)


Technical Specifications
Headphone Output
Type ¼” TRS Female, active stereo
Maximum Output 150 mW/ch. @ 60? load
Frequency Response 20 Hz – 20 kHz (± 0.05 dB)
THD+N 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
Line Outputs
Type ¼” TRS Female, balanced
Maximum Output Level +18 dBu, ±0.5 dBu
Output Impedance 100?
Digital Audio
DAC Dynamic Range 115 dB (A-wtd, 48 kHz)
AVB Audio Network Ports RJ45
Sampling Rate 48 kHz, 44.1 kHz
Power
External Power Supply 24 VDC
PoE Power 802.3at Type 1
Physical
Height 1.8” (46 mm)
Width 9.4” (239 mm)
Depth 7.6” (193 mm)
Weight 1.2 lbs (0.5 kg)
