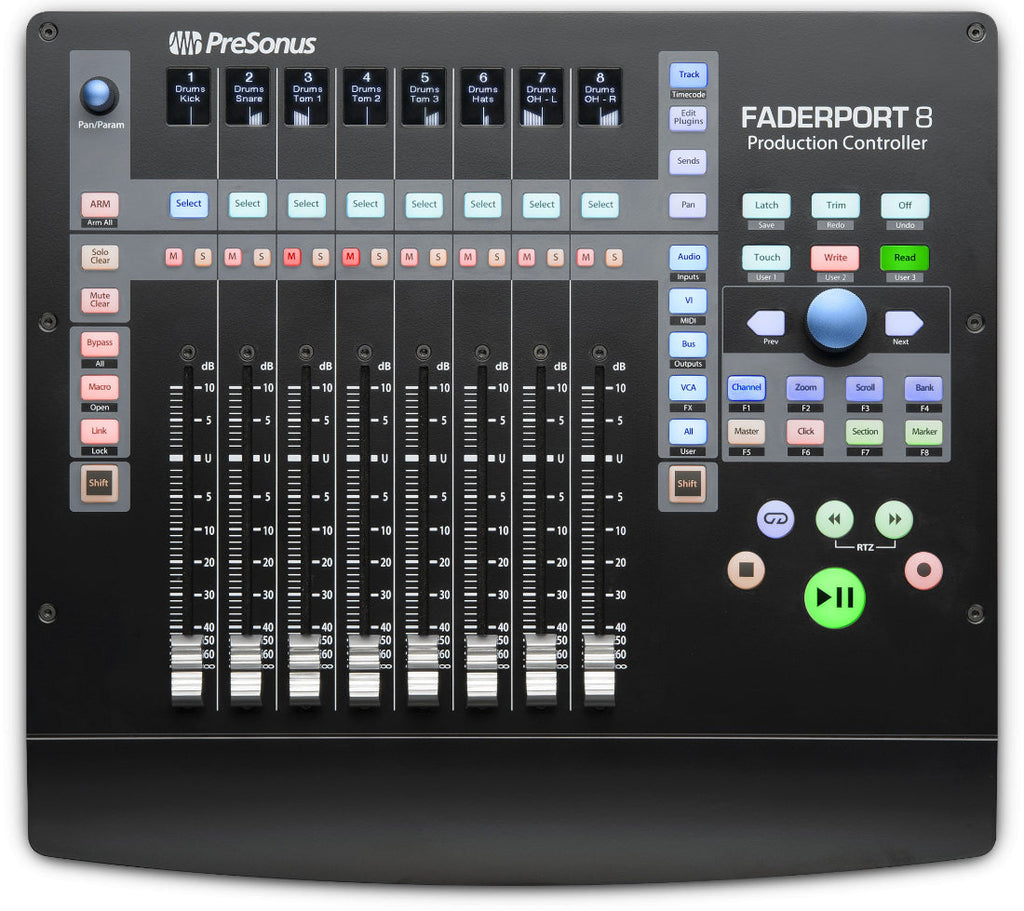

FaderPort 8

Don’t kill that mouse—give it a companion.

Although a keyboard and mouse are tried-and-true DAW-control devices, they’re far more effective when used in tandem with the FaderPort® 8’s precise tactile control over mix and automation functions. With 8 touch-sensitive, motorized, 100 mm faders and 65 buttons covering 78 different functions, you can quickly zoom in on audio files for editing, adjust your click-track tempo with a simple tap, modify plug-in parameters, manage aux mixes—and, of course, control track levels with the touch of a finger. With the FaderPort 8, you’ll enjoy the fastest, most efficient workflow you’ve ever experienced.

Computer system requirements:
Below are the minimum computer-system requirements for the FaderPort® 8:

macOS®
macOS version 10.13 or later
200 MB storage space for Universal Control (required for firmware updates)
Available USB port
Windows®
Windows 10 or later (64-Bit Only)
200 MB storage space for Universal Control (required for firmware updates and low-latency ASIO support)
Available USB port
The above are the hardware system requirements for this product.
DAW software and Operating System requirements vary.

Click here for Studio One’s system requirements.
PreSonus FaderPort 8 has been tested and approved to work with the following software:
Native Mode
PreSonus® Studio One® 3.5.3 or later
HUI Emulation
Supported by Pro Tools 12 or later
Mackie Universal Control Emulation*
Supported by Logic, Cubase, Nuendo, Sonar, and Ableton
*Users of third-party DAWs not listed that support the Mackie Control protocol, such as Reason, Bitwig Studio, and Reaper, should contact their DAW vendor for support.

As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.??

Note: A firmware update is currently required for full functionality. Please download and install Universal Control version 1.8.3 or later and run the firmware updater when prompted. See the FaderPort 8 Owner's Manual for instructions.

Technical Specifications
Input / Output
1 USB 2.0 port
1 Footswitch jack for hands-free stop/start
Faders
8 100 mm long-throw, touch-sensitive, motorized faders
Dual-servo motorized drive belt system for fast and quiet operation
Ultra-smooth feel and lightning fast
Heavy-duty construction
Resolution: 10-bit, 1,024 steps
Buttons and Knobs
General Controls Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins
Channel Controls Level, Pan, Solo, Mute, Select, Rec Arm
Automation Controls Touch, Latch, Trim, Write, Read, Off
Optional Fader Functionality Plug-in Edit, Bus Sends, Pan
Window View Mix, Project, Transport, Undo
Transport Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly depending on the DAW.)
Navigation Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Nudge
Console Management Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All
Displays 8 digital scribble strip displays, timecode display, channel meters
Power
12 VDC, 2A external power supply
Physical
Dimensions
Height 2.25" (57.2 mm)
Depth 11.85" (301 mm)
Width 13.15" (334 mm)
Weight 5 lbs. (2.3 kg)
