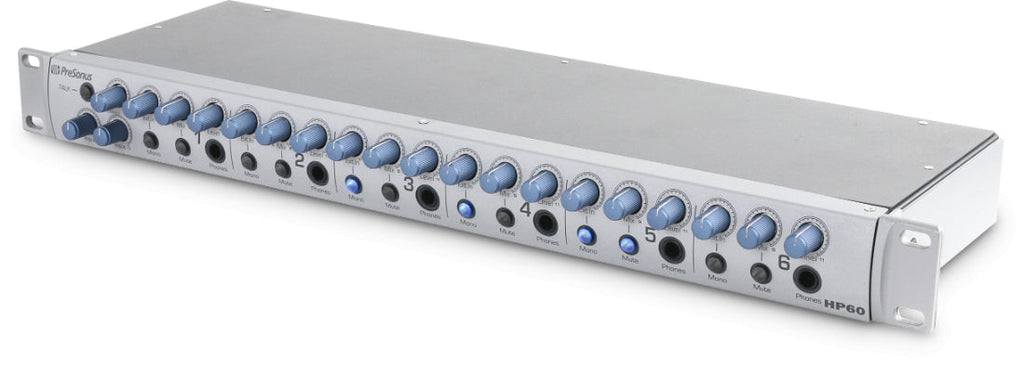

PreSonus HP60
Roll over image to zoom in Click on image to zoom
PreSonus HP60

PreSonus HP60

PreSonusSKU: HP60-
Price:
$339.99

Description



HP60

The problem solver.

“Turn my headphones up!” “More me, I can’t hear myself!” “Turn down that click!” If musicians can’t clearly hear what they want, their performance and attitude will suffer. With the PreSonus® HP60 headphone distribution system, you can easily resolve these problems and provide headphone mixes the musicians will love. That’s because the HP60 is more than a half-dozen headphone amps; it’s a field-tested, easy-to-use solution to a host of common headphone-monitoring issues.


Features

Input/Output

  • 6 screaming-loud (150 mW/channel) headphone outputs (front panel)
  • 6 unbalanced stereo ¼-inch line outputs (1 per channel); carries a copy of the channel mix
  • 6 unbalanced stereo ¼-inch external analog line inputs (1 per channel) for “more me,” with trim controls
  • 4 balanced ¼-inch analog line inputs (L/R Mix input pairs A and B)
  • 1 balanced XLR Talkback input for external dynamic microphone
  • 1 ¼-inch footswitch jack for hands-free Talkback operation

Meters, Controls, and Features

  • 2 stereo input channels (A and B)
  • Channel controls
    • External input level
    • Headphone level control for each headphone output
    • Mix A/B control (blends signals from input pairs A and B)
    • Mono switch for external input
    • Mute switch (mutes input pairs A and B)
  • Master controls
    • Input A level
    • Input B level
    • Talk button (momentary switch)
    • Talkback-mic level

Physical

  • 1U 19-inch rack-mountable, rugged steel chassis
  • Internal power supply with standard IEC connector


Technical Specifications
Inputs
Inputs A and B Connector Type (2 ea.) ¼” TRS balanced
External Input Connector Type ¼” TRS stereo unbalanced
Input Impedance 10 k?
Headphone Outputs
Connector type: ¼” TRS stereo unbalanced
Max Output Power 150 mW/Ch.
Frequency Response 20 Hz - 20 kHz, ±0.5 dB, 60? load
Headphone Impedance Working Range 32? - 600?
Power
Internal supply, standard IEC connector 115 or 230 VAC
Physical
Dimensions 1/3U rack-mount (with standard rack tray, not included)
Height 1.75” (44.45 mm)
Depth 5.5” (139.7 mm)
Width 19” (482.6 mm)
Weight 8.0 lbs. (3.63 kg)
As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein at any time, without notification.
