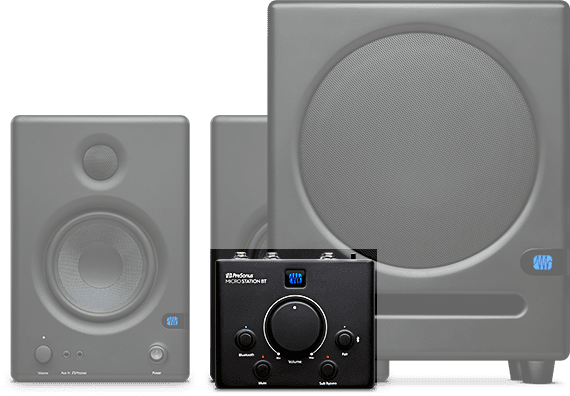

MicroStation BT

The little magic box.

MicroStation BT is the ultimate solution for anyone who wants to add Bluetooth connectivity to their favorite pair of studio or media reference monitors. Compact, convenient, and stylish, MicroStation BT also makes it easy to add a subwoofer to create a 2.1 listening environment while putting the overall system level control right under your fingertips.

Technical Specifications
Audio Inputs
Main L/R Inputs
Type ¼" Balanced TRS Active
Dynamic Range 108 dB
Frequency Response 20 Hz to 20 kHz
THD+N 0.001%
S/N Ratio > 102 dB
Bluetooth Input
Type Bluetooth 5.1
Frequency Response 20 Hz to 20 kHz
Auxiliary Input
Type 1/8" Unbalanced TRS
Frequency Response 20 Hz to 20 kHz
THD+N <0.01%
Dynamic Range 108 dB
Audio Outputs
Main Output
Type ¼” TRS Active Balanced
Frequency Response 20 Hz to 20 kHz
THD+N <0.02%
S/N Ratio >98 dB
Headphone Output
Type 1/8" Unbalanced TRS, Stereo
Maximum Level 32.5 mW / Channel
Frequency Response 20 Hz to 20 kHz
THD+N <0.50%
Aux Output
Cue Level Range 1/8" Unbalanced TRS, Stereo
Frequency Response 20 Hz to 20 kHz
THD+N 0.001%
Subwoofer Outputs
Type
1 ¼” Balance TRS Active

1 Unbalanced RCA

Frequency Response 20 Hz to 200 Hz
THD+N 0.002%
S/N Ratio >102 dB
Power
Power Supply Type USB-C™- compatible
Physical
Dimensions
Height 2.2” (56 mm)
Depth 3.9” (100 mm)
Width 4.9” (125 mm)
Weight 1 lb. (0.45 kg)
As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
