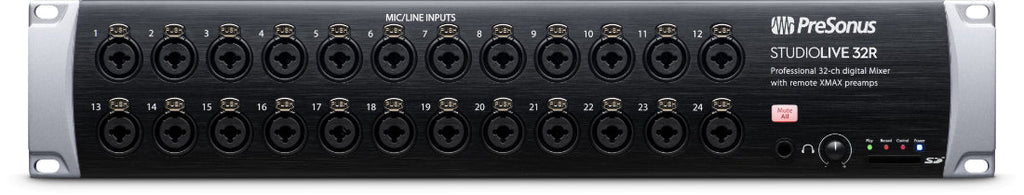

StudioLive 32R

The digital mixer that defines versatility.

The StudioLive® 32R digital mixer is four audio tools in two compact rack spaces. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. And of course, like other StudioLive Series III digital mixers, the StudioLive 32R has a continuously bidirectional 128-channel (64x64) USB audio interface onboard. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.

Computer system requirements:
Below are the minimum computer-system requirements for StudioLive 32R.

macOS®
macOS version 10.13 or later
200 MB storage space and 8 GB RAM for Universal Control (required for firmware updates)
Available USB port
Windows®
Windows 10 or later (64-Bit Only)
200 MB storage space and 8 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
Available USB port
The above are the hardware system requirements for this product.
DAW software and Operating System requirements vary.

Click here for Studio One’s system requirements.

Click here for Qmix-UC’s system requirements

Click here for UC Surface’s system requirements.
VST Compatible Logo ASIO Compatible Logo

VST is a registered trademark of Steinberg Media Technologies GmbH
ASIO is a trademark and software of Steinberg Media Technologies GmbH
USB-C® is a registered trademark of USB Implementers Forum
All other trademarks are property of their respective holders
Technical Specifications
Mi crophone Preamplifier
Input Type

Combo locking XLR mic-¼” TRS line

Frequency Response to Main Output (at unity gain)

20-20 kHz, ±0.5 dBu

Input Impedance

1 k?

THD to Main Output

<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)

94 dB

Common Mode Rejection Ratio (1 kHz at unity gain)

65 dB

Gain Control Range (±1 dB)

0 dB to +60 dB

Maximum Input Level (unity gain)

+12 dBu

Phantom Power (±2 VDC)

48 VDC, switchable per channel

Unbalanced Inputs (Ch. 31-32)
Type

RCA Female, unbalanced (stereo pair)

Maximum Input Level

+12 dBu, ±0.5 dBu

Main Outputs
Type

XLR Male, balanced

Maximum Output Level

+24 dBu, ±0.5 dBu

Output Impedance

100?

Mix Outputs
Type

¼” TRS Female, balanced

Maximum Output Level

+18 dBu, ±0.5 dBu

Output Impedance

100?

Headphone Output
Type

¼” TRS Female, active stereo

Maximum Output

100 mW/ch. @ 60? load

Frequency Response

20 Hz – 20 kHz (± 0.5 dB)

THD+N

0.01%, 1 kHz, max gain, 20 Hz BW, unwtd

S/N Ratio

96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

System Crosstalk
Input to Output

-90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Adjacent Channels

-87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Digital Audio and Control
ADC Dynamic Range

115 dB (A-wtd, 48 kHz)

DAC Dynamic Range

115 dB (A-wtd, 48 kHz)

USB Recording Port

USB 2.0, Type-B

Network Control Port

RJ-45

AVB Audio Network Port

Locking XLR Ethernet

Internal Processing

32-bit, ?oating point

Sampling Rate

48 kHz, 44.1 kHz

A/D/A Bit Depth

24

Reference Level for 0 dBFS

+18 dBu

Total System Latency

1.9 ms (local routing, analog in-analog out, all processing active)

Clock
Jitter

<20 ps RMS (20 Hz - 20 kHz)

Jitter Attenuation

>60 dB (1 ns in, 1 ps out)

Power / Environmental
Connector

IEC

Input-Voltage Range

90 to 230 VAC (±10%)

Power Requirements (continuous)

85W

Recommended Ambient Operating Temperature

0? to 40? Celsius / 32? to 104? Fahrenheit

Physical
Height

3.5” (90 mm)

Width

19” (483 mm)

Depth

12” (305 mm)

Weight

11.2 lbs. (5 kg)

As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
