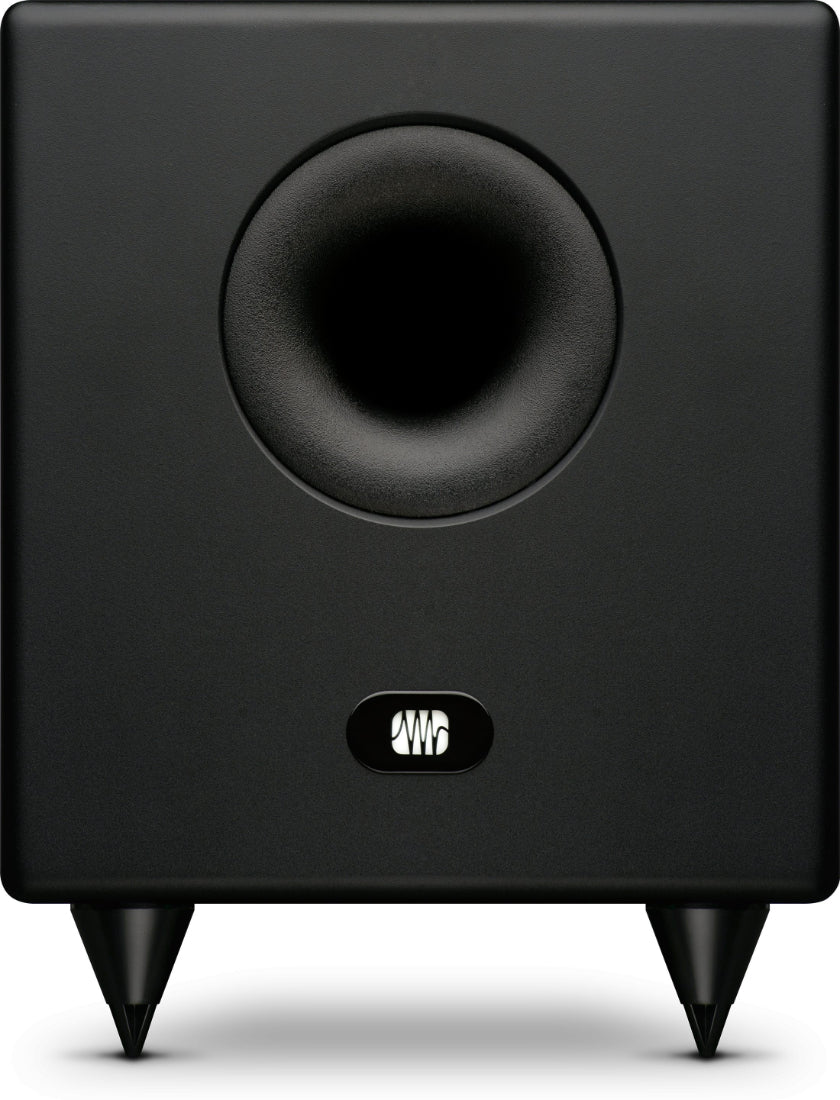

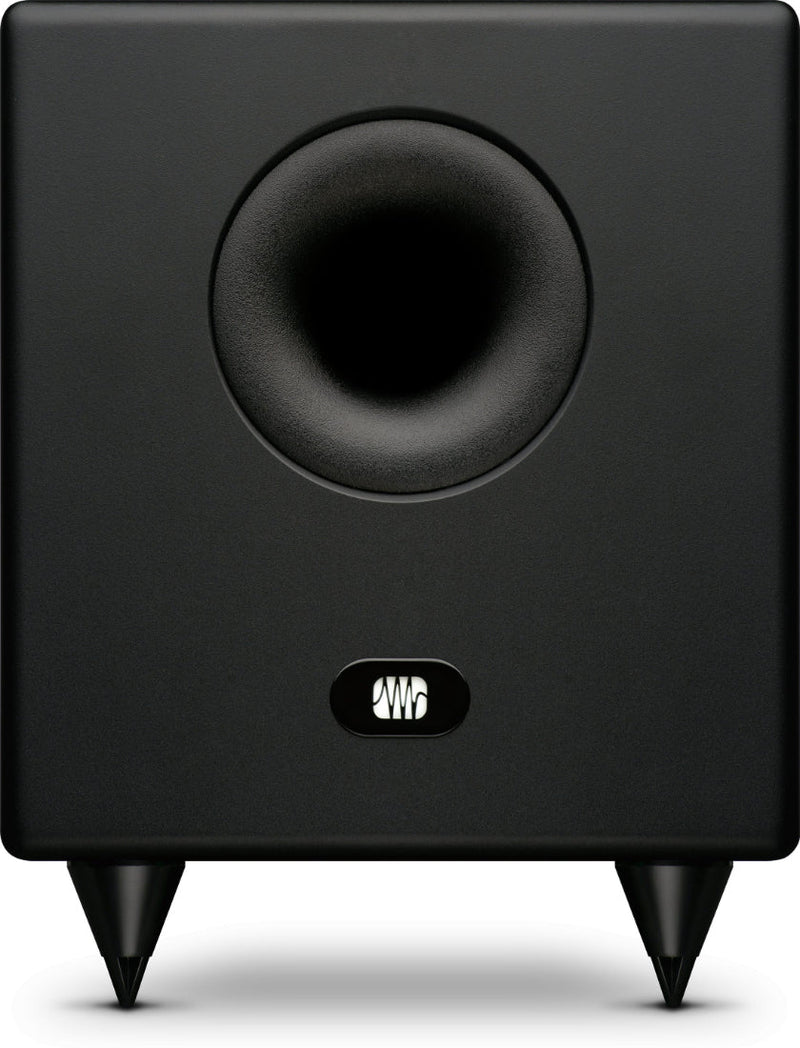

Temblor T8

A solid foundation for mixing.

A subwoofer provides the extra-deep low frequencies you need when mixing on relatively small monitors, especially for music that requires serious low-end punch. Powerful and musical, Temblor® T8 active, downward-firing subwoofers are designed to deliver fast and accurate transient response, extending low frequencies without a hint of “tubbiness” or overshoot. This ensures that Temblor-series subwoofers complement full-range monitors without overshadowing them, naturally extending the reach of your full-range system’s low end so that you can produce your best mix from top to bottom.

Technical Specifications
Inputs
2- Balanced ¼” TRS

2- Unbalanced RCA

Outputs
2- Balanced ¼” TRS (full range with 80 Hz HPF option

2- Unbalanced RCA (full range with 80 Hz HPF option)

Performance
Frequency Response 30 Hz – 200 Hz
Low Pass Filter Frequency 50 – 130 Hz (variable)
Signal-to-Noise Ratio >98 dB (A weighted)
THD 0.05%
Amplifier Power 200W peak, 100W RMS
Power Consumption 120W
Amplifier Type Class AB
Peak SPL at 1m 104 dB
Woofer 8” glass-composite, downward-firing
Acoustic Port Front-firing bass reflex (round)
User Controls
Input Gain Range -30 to +6 dB
Polarity Switch 0° or 180°
Low Pass Filter Control 50 Hz to 130 Hz
High Pass Filter Switch On/Off
Protection
RF interference

Output-current limiting

Over-temperature

Turn-on/off transient

Subsonic filter

External mains fuse

Power
100-120V ~50/60 Hz or 220-240V ~50/60 Hz
Cabinet
Vinyl-laminated MDF
Physical
Width 10.2” (260 mm)
Depth 12.6” (320 mm)
Height 11” (280 mm)
Weight 21.2 lbs (9.6 kg)
As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
