QSC AC-C2T
Roll over image to zoom in Click on image to zoom
QSC AC-C2T

QSC AC-C2T

QSCSKU: AC-C2T
Price:
$98.50

Description

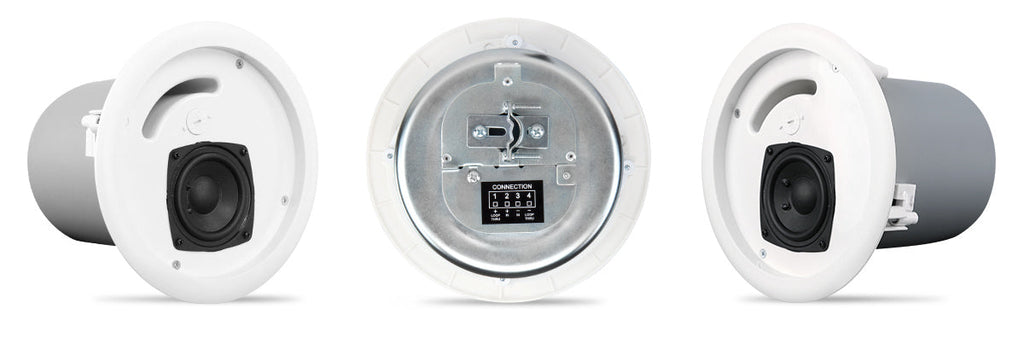

2.75" Full-range ceiling speaker, 70/100V transformer with 8? bypass, 170° conical coverage, includes C-ring and rails for blind mount installation. Priced individually but must be purchased in pairs.

AC-C2T

2.75-inch Full-range, 170° conical


Features

  • High quality 2.75-inch full-range transducer provides exceptional clarity through the critical voice range.
  • Low-saturation 70V/100V transformers with 8-ohm bypass.
  • 4-pole Euroblock connector for easy system wiring.
  • Advanced voicing filter sets using QSC Intrinsic Correction™ are available through either Q-SYS processing or CXD amplifier platforms.
  • White (RAL 9010) with UV inhibitors to match complementing QSC product families.
  • Complete EASE, CAD, and BIM information available online.


How to choose: AC-C2T vs AC-C4T

AC-C2T AC-C4T
Ideal for: background music, VoIP, hospitality w/ low ceiling Ideal for: foreground audio, POTS, airports, public address, Cinema lobbies
Raised LF / HF Response = subjectively more musical HF roll-off above 8kHz = ideal for voice (far-end, paging, etc)
Smaller cone / magnet (Bl) = lower sensitivity (84 dB) Larger cone / magnet (Bl) = higher sensitivity (89 dB)
Wider coverage (170°) = ideal for lower ceilings (<10ft) Narrower coverage (140°) = ideal for higher ceilings (<15ft)
Specifications AC-C2T
Effective frequency range 70 Hz to 20 kHz
Rated noise power / voltage 16 watts / 11.3 volts (rms)
Broad-band sensitivity 84 dB
Coverage angle (-6 dB) 170° (500 Hz to 5 kHz)
Maximum continuous SPL 96 dB
Maximum peak SPL 102 dB
Rated impedance 8 ohms
Transformer taps:
          70 V 16, 8, 4, 2, 1 watts and 8-ohm bypass
          100V 16, 8, 4, 2, watts and 8-ohm bypass
Transducer 2.75-inch treated paper cone with rubber surround
Input connector type Euroblock connector with parallel output terminals
Baffle material Painted ABS polymer
Grille material Powder coated steel
Back can material Powder coated steel
Testing Listed UL1480, UL2043 safe for use in air handling space
Net weight 4.2 lb / 1.9 kg
Product dimensions 8.4-inch × 7.9-inch (214 × 201 mm)
Cut-out Dimensions 7.31-inch (185.67mm)
Ceiling Capture Thickness 0.25-inch to 1.5-inch (6.35 to 38.1mm)
Shipping weight 15.1 lb / 6.86 kg
Shipping dimensions 10.75-inch × 24-inch × 10.5-inch (273.1 × 609.6 × 266.7 mm)
Included accessories Rails and C-ring for ceiling tile installation
Optional accessories AC-MR4 mud ring for sheet rock installation


All specifications are subject to change without notice.
