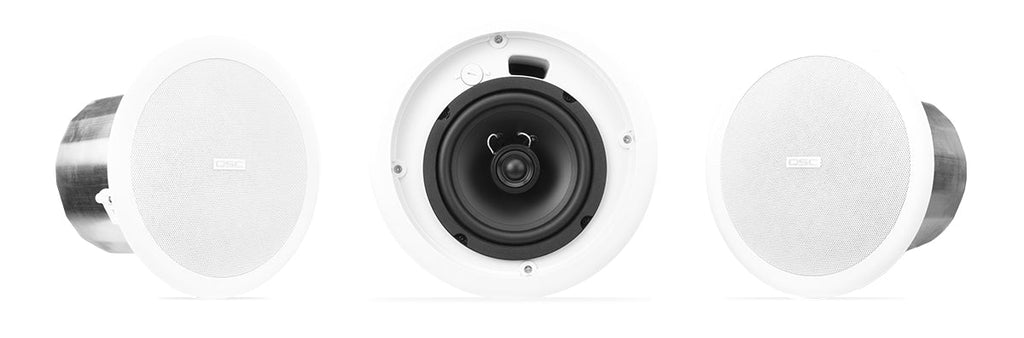

QSC AC-C6T
Roll over image to zoom in Click on image to zoom
QSC AC-C6T

QSC AC-C6T

QSCSKU: AC-C6T
Price:
$148.50

Description

6.5" Two-way ceiling speaker, 70/100V transformer with 8? bypass, 110° conical coverage, includes C-ring and rails for blind mount installation. Priced individually but must be purchased in pairs.

AC-C6T

C-C6T Full-range, ceiling mount loudspeaker


Features

  • High quality 6.5-inch 2-way system provides exceptional clarity through the critical voice range.
  • Low-saturation 70V/100V transformers with 8-ohm bypass.
  • 4-pole Euroblock connector for easy system wiring.
  • Advanced voicing filter sets using QSC Intrinsic Correction™ are available through either Q-SYS processing or CXD amplifier platforms.
  • White (RAL 9010) with UV inhibitors to match complementing QSC product families.
  • Complete EASE, CAD, and BIM information available online.

Specifications AC-C6T
Effective frequency range 65 Hz to 20 kHz
Rated noise power / voltage 30 watts / 15.5 volts (rms)
Broad-band sensitivity 89 dB SPL
Coverage angle (-6 dB) 110° (500 Hz to 5 kHz)
Maximum continuous SPL 104 dB
Maximum peak SPL 110 dB
Rated impedance 8 ohms
Transformer taps:
                 70 V: 30, 15, 7.5, 3.7, 1.9 watts and 8-ohm bypass
                 100V: 30, 15, 7.5, 3.8, watts and 8-ohm bypass
HF Transducer .86-inch silk dome tweeter, coaxially mounted
LF Transducer 6.5-inch Polypropylene cone with butyl rubber surround
Input connector type Euroblock connector with parallel output terminals
Baffle material Painted ABS polymer
Grille material Powder coated steel
Back can material Galvanized steel
Testing Listed UL1480, UL2043 safe for use in air handling space
Net weight 7.6 lb / 3.5 kg
Product dimensions 10.24-inch × 8.4-inch (260 × 213 mm)
Cut-out Dimensions 9-inch (229 mm)
Ceiling Capture Thickness 0.25-inch to 1.5-inch (6.35 to 38.1mm)
Shipping weight 21 lb / 9.5 kg pair packed
Shipping dimensions 24.5-inch × 12.5-inch × 12.8-inch (622 × 318 × 324 mm)
Included accessories Rails and C-ring for ceiling tile installation
Optional accessories AC-MR6 mud ring for sheet rock installation


All specifications are subject to change without notice.
