QSC AC-C8T-nb
Roll over image to zoom in Click on image to zoom
QSC AC-C8T-nb

QSC AC-C8T-nb

QSCSKU: AC-C8T-NB
Price:
$76.00

Description

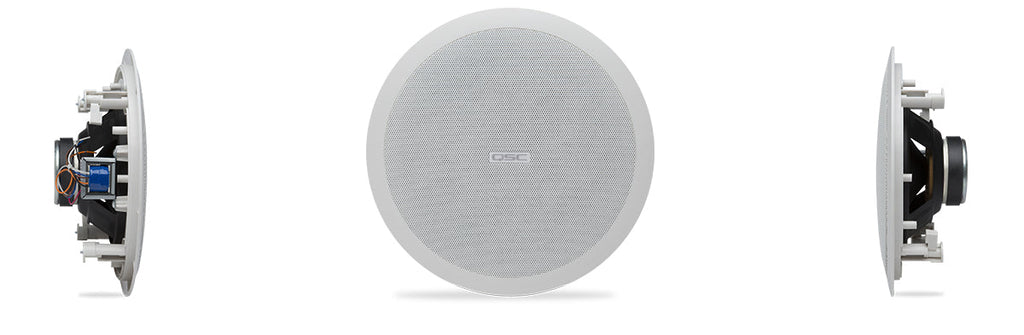

8" Full-range no backcan (non UL) ceiling speaker, 70/100v transformer, 130° conical coverage. Priced individually but must be purchased in quantities of four (4).

AC-C8T-nb

8-inch Full-range, 130° conical


Features

  • High quality 8-inch full-range transducer provides exceptional clarity through the critical voice range.
  • Low-saturation 70V/100V transformers with 8-ohm bypass.
  • 4-pole Euroblock connector for easy system wiring.
  • White (RAL 9010) with UV inhibitors to match complementing QSC product families.

Specifications AC-C8T-nb
Transducer 200 mm [8-inch] weather resistant paper cone
Rated noise power [rms] (1) 6 W
Nominal Impedance 8?
Transformer taps:
          70 V 6, 3, 1.5, 0.75 W
          100V 6, 3, 1.5 W
Effective frequency range (2) 53 Hz - 20 kHz
Rated Coverage(3) 130° conical
Directivity Factor 5.6
Directivity Index [dB] 7.5
Sensitivity (4) 96 dB
Maximum continuous SPL (5) 104 dB
Maximum peak SPL (5) 110 dB
Baffle material ABS
Grille material Powder coated steel
Cutout Dimensions Ø 254 mm [Ø 10 -inch]
Net weight 1.5 kg [3.4 lb]
Product dimensions (Diameter x Height) Ø 283 x 84 mm [Ø 11.14 x 3.3-inch]
Shipping weight 7.8 kg [17.3 lb] (packs of 4)
Shipping dimensions (H x W x D) 343 × 324 × 635 mm [13.5 × 12.75 × 25-inch] (packs of 4)


1 AES2-1984 noise signal for 2 Hrs, 8?
2 Free-field, -10 dB from on-axis sensitivity
3 -6 dB from on-axis, 500 Hz-5 kHz
4 Free-field, on-axis, 2.83V, 1 m
5 Calculated from rated noise voltage and sensitivity
