QSC AD-P4T-WH
Roll over image to zoom in Click on image to zoom
QSC AD-P4T-WH

QSC AD-P4T-WH

QSCSKU: AD-P4T-WH
Price:
$275.00

Description



AD-P4T

4.5-inch, 2-way, 150° conical DMT

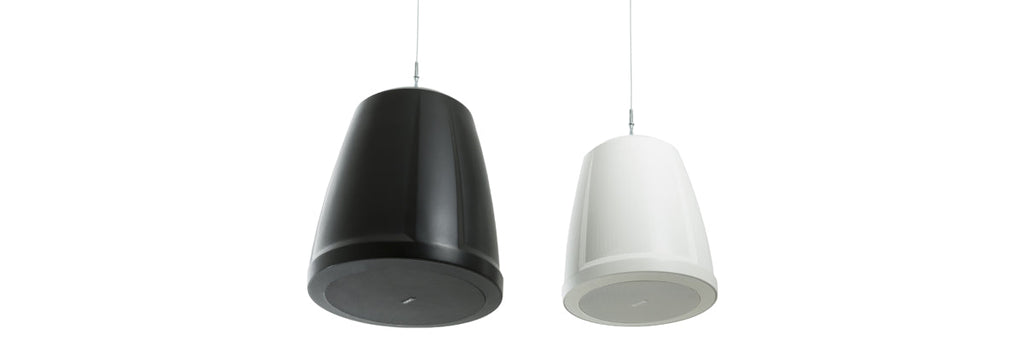

The QSC AcousticDesign™ AD-P4T is a 4.5-inch two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16? bypass configurations.


Features

  • Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
  • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
  • Snap-fit magnetic grille
  • 2x quick-link suspension cables and slip-lock fasteners provided
  • Intrinsic Correction™ voicings available via Q-SYS Q-SYS Platform and CXD amplifiers
  • Low-saturation and low-loss 70/100V transformers with 16? bypass
  • Blemish-free removable logo
  • Sealable input cover to prevent moisture from entering the input terminal block
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, & BIM information available online


System Details

AD-P4T

Effective frequency range 2

65 Hz – 20 kHz

Rated noise power / voltage 1

30 watts / 22 volts (rms)

Sensitivity [dB] 3
Sensitivity at 4m, 100V maximum tap

87.9
TBD

Rated coverage (-6 dB) 4

150° conical DMT™

Directivity factor 4

4.5

Directivity index [dB] 4

6.5

Maximum continuous SPL [dB] 5

102

Maximum peak SPL [dB] 5

108

Nominal impedance [ohms]

16

Recommended amplifier

60 watts

Transformer taps / impedance

16? (in bypass setting)
3.75W (70V); 7.5W (100V) Tap: 1333?
7.5W (70V); 15W (100V) Tap: 667?
15W (70V); 30W (100V) Tap: 333?
30W (70V); N/A (100V) Tap: 167?

LF transducer

114 mm [4.5-inch] weather treated paper cone woofer

HF transducer

19 mm [0.75-inch] aluminum dome tweeter

Input connector type

Euroblock connector with parallel output

Enclosure material

Impact Resistant ABS

Grille material

Powder coated steel

Ingress protection

IP-34

Operating environment

Designed for indoor use

Operating temperature range

-20 to 50° C [-4 to 122° F]

Net weight

2.9 kg [6.5 lb]

Product dimensions (Diameter x Height)

Ø 237 x 272 mm [Ø 9.3 x 10.7-inch]

Shipping weight

3.9 kg [8.7 lb]

Shipping dimensions (H x W x D)

298 x 362 x 286 mm [11.75 x 14.25 x 11.25-inch]

Included mounting hardware

Two quick-link cable assemblies (length 3.25m/ 128-inch 2mm thickness), two slip-lock fasteners, locking euro-block connector, sealable input cover and screws, snap-fit magnetic grille.

Safety Agency

UL1480, Transformer UL registered per UL1876, ROHS, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems

1 IEC Noise, 2 Hrs
2  -10dB from rated sensitivity
3  Transformer bypassed, 1W, 1m, IEC Baffle, 200-10kHz average, on-axis
4 500Hz-5kHz average
5 Calculated from rated noise voltage and sensitivity

All specifications are subject to change without notice.
