QSC AD-P.SUB-WH
Roll over image to zoom in Click on image to zoom
QSC AD-P.SUB-WH

QSC AD-P.SUB-WH

QSCSKU: AD-P-SUB-WH
Price:
$542.00

Description



AD-P.SUB

6.5-inch Dual Voice Coil, Small Format Pendant Subwoofe

The QSC AD-P.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.


Features

  • Dual voice coil for improved thermal dissipation and higher output
  • Low saturation and low-loss 70 / 100 V transformers with 4 ? bypass
  • 4x built-in high-pass filtered outputs
  • Snap-fit magnetic grills
  • Locking 4-pole Euroblock connectors
  • 2x quick link cable assemblies and slip-lock fasteners supplied
  • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers

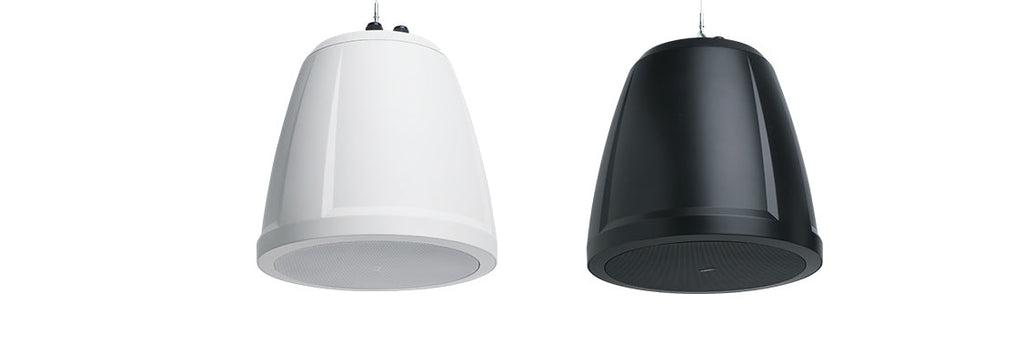

  • Available in black (RAL 9011) or white (RAL 9010)
  • UL1480 certified

Specifications AD-P.SUB
LF transducer 6.5-inch (165 mm) dual voice coil weather treated paper cone woofer
HF transducer N/A
Effective frequency range 55 Hz – 150 Hz
Rated noise power / voltage 100 W / 20 V (rms)
Sensitivity [dB] (rated @1 W, 1 m) 86
Coverage (-6 dB) Omni
Directivity factor TBD
Directivity index [dB] TBD
Maximum SPL [dB] (continuous / peak) 100 / 106
Recommended amplifier 100 W
Transformer taps / impedance Bypass:4 ?
100 W (70 V); NA (100 V) Tap: 50 ?
50 W (70 V); 100 W (100 V) Tap: 100 ?
25 W (70 V); 50 W (100 V) Tap: 200 ?
12.5 W (70 V); 25 W (100 V) Tap: 400 ?
Connectors Mono input: 4-pole Euroblock with thru output
Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
Enclosure material ABS
Grille material Powder coated steel
Ingress protection IP-34
Operating environment Designed for indoor use
Operating temperature range -4 to 122° F (-20 to 50° C)
Net weight 16.5 lb (7.5 kg)
Product dimensions (Ø x H) Ø 13.6 x 13.8-inch (Ø 4.3 x 4.5 mm)
Shipping weight TBD
Shipping dimensions
(H x W x D)		 TBD
Included accessories 2x cable rigging, 3x Euroblock connector, 2x sealed input cover, grill
Safety agency UL1480, Transformer UL registered per UL1876, ROHS, CE compliant


As part of QSC's ongoing commitment to product development, specifications are subject to change without notice.
