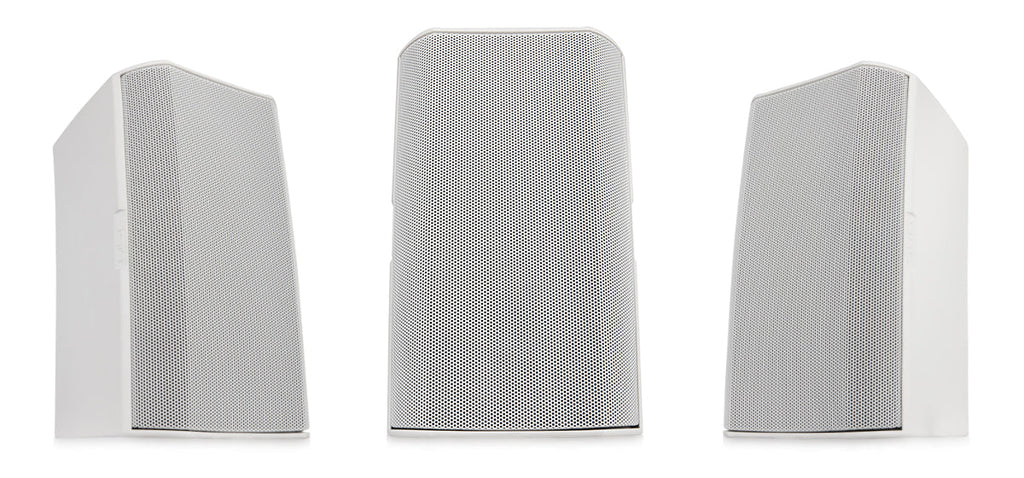

QSC AD-S10T-WH
Roll over image to zoom in Click on image to zoom
QSC AD-S10T-WH

QSC AD-S10T-WH

QSCSKU: AD-S10T-WH
Price:
$870.00

Description



AD-S10T


Features

  • 10-inch weather treated woofer; 1.4-inch compression driver
  • 90° conical DMT coverage
  • 100 watt low-saturation and low-loss 70/100V transformers with 8? bypass
  • Maximum peak SPL 122 dB (8 ohm bypass)
  • DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS or CXD amplifier platform
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online

System Details AD-S10T
Effective frequency range1 50 Hz - 19 kHz
Rated noise power / voltage2 250 watts / 45 volts (rms)
Broadband sensitivity3 92 dB SPL
Coverage angle (-6 dB) 90° conical DMT
Directivity factor (Q) 10
Directivity Index 10 dB
Maximum continuous SPL4 116 dB
Maximum peak SPL4 122 dB
Rated impedance 8 ohms
Recommended amplifier power
(loudspeaker "program" power)		 500 watts
Transformer taps 70 V: 100, 50, 25, 12.5 W and 8? bypass

100V: 100, 50, 25 W and 8? bypass
HF transducer 1-inch exit / 1.4-inch voice coil compression driver
LF transducer 10-inch weather resistant paper cone woofer

2.5-inch / 64 mm voice coil
Input connector type Euroblock connector with parallel output terminals
Enclosure material  Painted ABS polymer
Grille material  Powder coated aluminum
X-Mount material  Powder coated aluminum
Enclosure Details
Ingress protection  IP-54
Operating environment Designed for indoor and outdoor use
Testing The AD Series loudspeakers qualified for outdoor use using the following tests:

  • Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
  • Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
  • High and low temperature: tested to QSC internal standards between -20° and 50° C
Net weight 31 lb / 15 kg
Product dimensions
(HWD) inches		 20.3 × 12.5 × 11.7
Product dimensions
(HWD) mm		 516 × 318 × 298
Shipping weight 40.6 lb / 18.45 kg
Shipping dimensions
(HWD) inches		 31.7 × 16.1 × 16.1
Shipping dimensions
(HWD) mm		 805 × 409 × 409
Included accessories X-Mount mounting system, Euroblock connector,
input panel cover
Optional accessories YMS10T yoke mount, M10 Kit-C

1 Free-field, -10 dB from on-axis sensitivity
2IEC60268-1 noise signal for 2 hours
3On-Axis, free-field sensitivity, 2.83V, 1 m
4Calculated from rated noise voltage and sensitivity


All specifications are subject to change without notice.
