QSC AD-S162T-BK
Roll over image to zoom in Click on image to zoom
QSC AD-S162T-BK

QSC AD-S162T-BK

QSCSKU: AD-S162T-BK
Price:
$1,095.00

Description

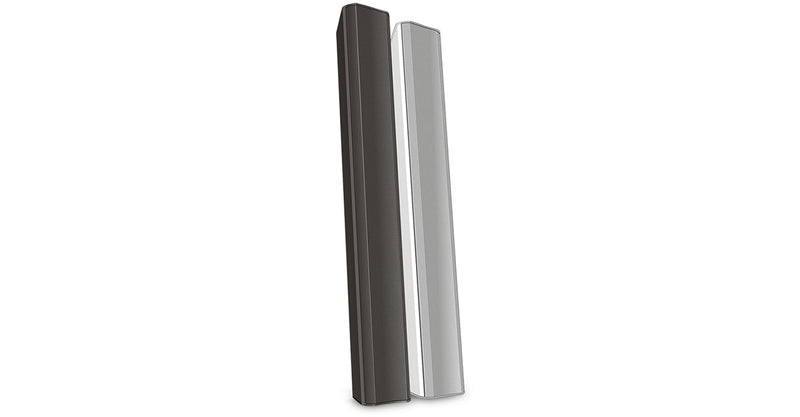

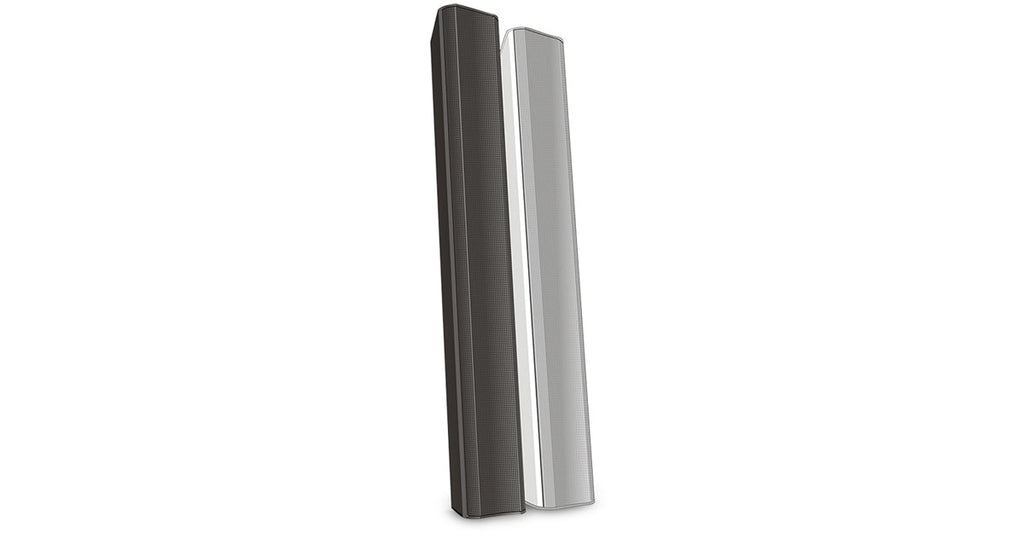

AD-S162T

Surface-Mount Loudspeaker

The all-new AcousticDesign™ Series AD-S162T is a 16-driver column surface-mount loudspeaker. This premium full-range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.


Features

  • Deliberately unobtrusive industrial design.
  • Available in white (RAL 9010) or black (RAL 9011).
  • Paintable enclosure and grill.
  • Complete EASE, CLF, CAD & BIM information.
  • Rugged aluminum construction.
  • UV Inhibitors in all white models.
  • IP-54 rating for dust and splash resistance.
  • Powder-coated grills and weather-treated cones.
  • Close to wall pan/tilt bracket included.
  • Low saturation 70/100V transformers.
  • 8 ohm low impedance bypass.
  • Selectable broad/narrow beam contour
  • Screw-down Euro block connector with loop-through.
  • Sealable input weather cup – keeps moisture away from wiring.


System Details

AD-S162T

Effective frequency range 1

200 Hz – 17K Hz

Power Capacity 2

240 W

System Sensitivity

90 dB WIDE
92 dB NARROW

Coverage Angle
Horizontal  (-6dB)

150°  (1.2K Hz - 6K Hz) WIDE
150°  (2K Hz - 6K Hz) NARROW

Coverage Angle
Vertical (-6 dB)

30° (900 Hz - 17K Hz) WIDE
15° (1.5K Hz - 17K Hz) NARROW

Output 4
(Peak SPL @ 1M)

120 dB WIDE
122 dB NARROW

Driver Information

(x16) 2.5-inch weather resistant paper cone woofer

Rated Impedance

8 ohm

Input Connectors

4-pin Euro terminal

Enclosure

Aluminum

Ingress Protection

IP-54

Net Weight

TBD

1 Free-field, -10 dB from on-axis sensitivity
2  IEC60268-1 noise signal for 2 Hrs
3  On-axis, field-fre sensitivity, 2.83V, 1 m
4 Calculated from rated noise voltage and sensitivity

All specifications are subject to change without notice.
