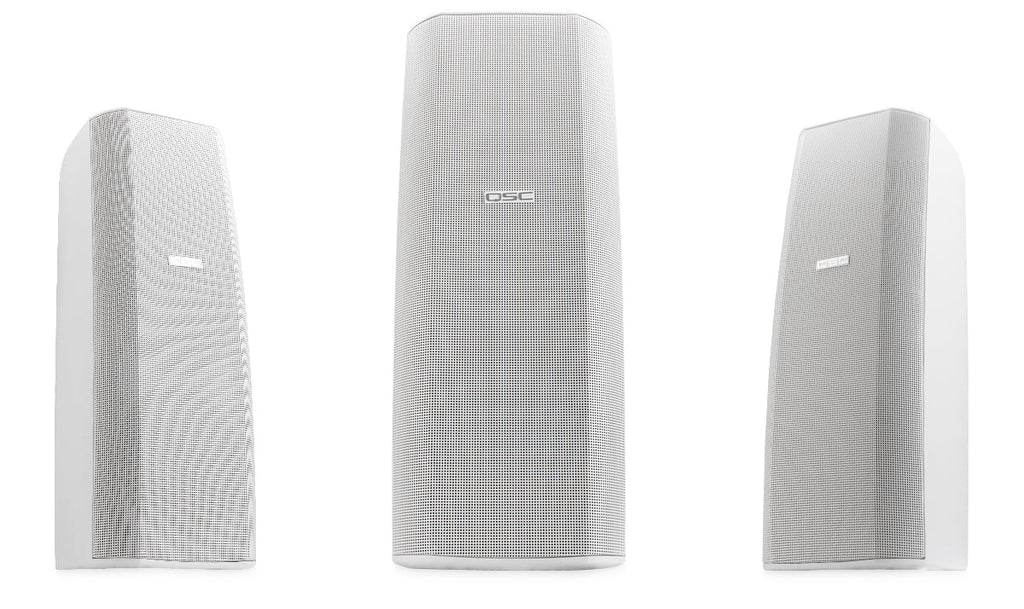

QSC AD-S282H-WH
Roll over image to zoom in Click on image to zoom
QSC AD-S282H-WH

QSC AD-S282H-WH

QSCSKU: AD-S282H-WH
Price:
$1,135.00

Description



AD-S282H

Dual 8-inch 2-way, 90° x 60° (rotatable)


Features

  • Contemporary style, weather-resistant enclosure and components - ideal for a wide range of applications.
  • Dual 8-inch, 2-way system - in a lightweight, multipurpose enclosure featuring a heavy duty, powder coated aluminum grill.
  • Versatile mounting options - The included yoke mount bracket can be used for mounting and aiming the system in vertical or horizontal orientations. Provision for optional Omni-mount™ bracket is built in.
  • Advanced Directivity™ rotatable waveguide - (90° × 60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation.
  • Low impedance and transformer versions - Standard 8 ohm system is selectable for passive or bi-amp operation while the AD-S282HT transformer version provides taps for both 70V and 100V distributed system use.

Package Includes:

AD-S282H or AD-S282HT loudspeaker
Yoke mount and hardware
Connector protection cap

SPECIFICATIONS AD-S282H / AD-S282HT
Configuration Compact two way, ported enclosure
Transducers
Low Frequency Transducer

High Frequency Transducer		 Dual 8-inch high power, treated paper cone, 2-inch voice coil, neodymium magnet

1-inch high output compression driver
Frequency Range1
Frequency Response (-6 dB)
Useable Frequency Range (-10 dB)
80 Hz - 27.7 kHz
60 Hz - 29.5 kHz
Maximum Output (SPL at 1 m)2
Fullrange (passive mode)
LF (biamp mode)
HF (biamp mode)
Continuous Peak
120 dB 126 dB
124 dB 130 dB
121 dB 127 dB
Nominal Impedance
Passive
LF
HF
8 ohms
8 ohms
8 ohms
Power Rating3
Passive
LF
HF
450 W (IEC 8 hours)
500 W (IEC 8 hours, 50 Hz - 2 kHz)
45 W (IEC 8 hours, 2 kHz - 20 kHz)
Recommended Max Amp Power (Passive) 900 W RMS
Sensitivity (SPL, 1 W at 1 m)4
Passive
LF
HF
93 dB (100 Hz - 10 kHz)
97 dB (200 Hz - 2 kHz)
104 dB (2 kHz - 10 kHz)
Nominal Coverage 90° H x 60° V (-6 dB) (rotatable to 60° H x 90° V)
Bass Loading Ported, tuned to 60 Hz

Transformers (AD-S282HT)
Type Custom low distortion laminated core, wide bandwidth design
Taps 70V 200, 100, 50, 25 W; 8? bypass
100V 200, 100, 50 W; 8? bypass

Enclosure
Material Injection molded, weather resistant, high impact polystyrene
Finish White or black (paintable)
Weather Resistant Yes
Grille Heavy duty powder coated aluminum
Connectors Barrier strip, (switchable: passive/active on AD-S282H)
Mounting Hardware Yoke mount (included)
Weight 27.7 lb (12.6 kg) net
35.6 lb (16.1 kg) shipping

1 All frequency ranges specified refer to measured free field response (full space, 4pi)
2 Calculated using specified power capacity and system sensitivity. 6 dB peak-to-average signal ratio assumed.
3 Continuous IEC specified test signal
4 Based on nominal impedance, measured in full-space.

All specifications are subject to change without notice.
