QSC AD-S32T-BK
Roll over image to zoom in Click on image to zoom
QSC AD-S32T-BK

QSC AD-S32T-BK

QSCSKU: AD-S32T-BK
Price:
$179.00

Description

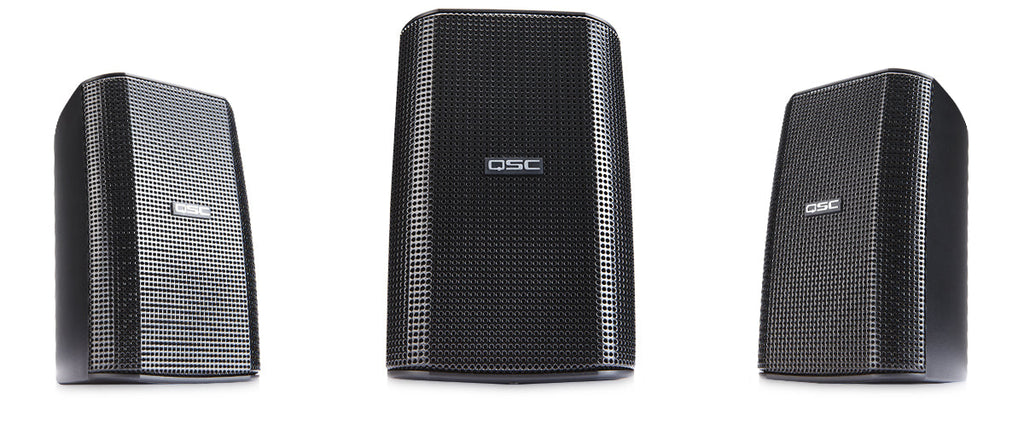

3" Two-way surface speaker, 70/100V transformer with 8? bypass, 90° conical coverage, includes ball-mount and yoke assembly. Available in black. Priced individually but must be purchased in pairs.

AD-S32T

3-inch 2-way, 100° conical


Features

  • 3-inch polypropylene cone woofer
  • 0.75-inch titanium dome tweeter
  • 30 Watts continuous power handling, 120 watts peak
  • 70/100 volt multitap transformer with 8 ohm bypass
  • Includes ball mount assembly and yoke mount
  • Available in black or white

Package Includes:
Two AD-S32T loudspeakers
Two yoke mounts
Two ball mounts
Two connector protection caps

SPECIFICATIONS
 AD-S32T
Configuration Compact two way, ported enclosure
Transducers
Low-frequency
High-frequency
3-inch (7.6 cm) weather resistant, polypropylene cone woofer
0.75-inch titanium dome tweeter
Frequency Range 1
Frequency Response (-6 dB)
Useable Frequency Range (-10 dB)
73 Hz to 20 kHz
65 Hz to 20 kHz
Maximum Output 2
Calculated Peak Output
Calculated Continuous Output
105 dB SPL
99 dB SPL
Nominal Impedance 8 ohms switchable
Power Rating
Continuous power handling3
Recommended max amp power
30 W (100 hours IEC)
60 W (loudspeaker "program" power)
Sensitivity 85 dB, 2.83 V, 1 m, free space (4 pi)
Nominal Coverage 100° × 100°

TRANSFORMERS
Type Custom low-distortion laminated core, wide-bandwidth design
Taps 70 V: 30, 15, 7.5, 3.8 W / 8? bypass>
100 V: 30, 15, 7.5 W / 8? bypass
Environmental Exceeds Mil Spec 810 for humidity, salt spray and dust; IEC 60529 IP-X3 splash rating
Agency Rating Transformer—listed UL1876

ENCLOSURE
Material Injection molded, weather resistant high impact polystyrene
Finish White or black (paintable)
Grille Heavy duty powder coated aluminum
Connectors Screw terminals
Mounting hardware Ball mount assembly; yoke mount bracket included
Product Dimensions
H x W x D		 7.9-inch x 4.8-inch x 5.5-inch
202 mm x 123 mm x 140 mm
Weight 4 lb (1.8 kg) net
10 lb (4.5 kg) shipping (pair)

1All frequency ranges specified refer to measured free field response.
2Calculated SPL at 1 m, (free space, 4 pi), speaker operating at rated continuous power with pink noise within specified frequency range
3Maximum input power tested in accordance with IEC 268-5 recommendations, 50 Hz–20 kHz band limiting, 6 dB signal crest factor.

Specifications are subject to change without notice.

The versatile mounting options and compact size of the AD-S32T make it a perfect fit for most any application. (Some mounting accessories sold separately)
