QSC AD-S402T-WH
Roll over image to zoom in Click on image to zoom
QSC AD-S402T-WH

QSC AD-S402T-WH

QSCSKU: AD-S402T-WH
Price:
$392.00

Description



AD-S402T

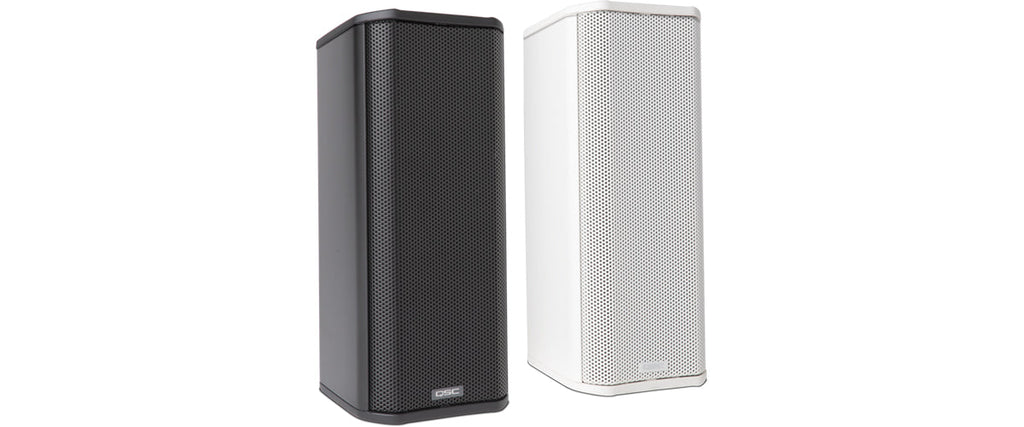

Column Surface-Mount Loudspeaker

The AcousticDesign™ Series AD-S402T is a 4-driver column surface-mount loudspeaker. This premium full range system is capable of 70 V / 100 V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.


Features

  • Deliberately unobtrusive industrial design.
  • Available in white (RAL 9010) or black (RAL 9011).
  • Paintable enclosure and grille.
  • Complete EASE, CLF, CAD & BIM information.
  • Rugged aluminum construction.
  • UV Inhibitors in all white models.
  • IP-54 rating for dust and splash resistance.
  • Powder-coated grille and weather-treated cones.
  • Close to wall pan/tilt bracket included.
  • Low saturation 70 V / 100 V transformers.
  • 16 ohm low impedance bypass.
  • Screw-down Euro block connector with loop-through.
  • Sealable input weather cup – keeps moisture away from wiring.


System Details

AD-S402T-BK, AD-S402T-WH

LF Transducer

(x4) 2.5 in (63.5 mm) weather treated paper cone woofer

Effective frequency range 1, 2, 3, 8

110 Hz – 20 kHz

Rated noise power / voltage 6

60 W / 31 V (rms)

Sensitivity [dB]

Rated @1 W, 1m 2, 3, 4, 8 : 85

Coverage (?6 dB) [°]
Horizontal x Vertical 9

Rated 2, 5, 8 : 150 x 35
500 Hz: 180 x 90,    1kHz: 180 x 80
2k Hz: 160 x 46,     4kHz: 180 x 28

Directivity factor 2, 5, 8

 11

Directivity index [dB] 2, 5, 8

10.5

Maximum SPL [dB]

Rated, 1m (continuous / peak) 7 : 105 / 111

Recommended amplifier

120 W

Transformer taps / impedance

Bypass: 16 ?
7.5 W (70 V); 15 W (100 V) Tap: 666 ?
15 W (70 V);  30 W (100 V) Tap: 333 ?
30 W (70 V);  60 W (100 V) Tap: 167 ?

Input connector type

Euroblock connector with parallel output

Enclosure material

Powder coated aluminum

Grille material

Powder coated aluminum

Ingress protection

IP-54

Operating environment

Designed for indoor or outdoor use

Operating temperature range

-4 to 122° F (-20 to 50° C)

Net weight

7.5 lb (3.4 kg)

Product dimensions (H x W x D)

12.89 x 5.17 x 4.97 in
(327.5 x 131.3 x 126.1 mm)

Shipping Weight

11 lb (5 kg)

Shipping Dimensions (H x W x D)

21.4 x 12.2 x 9.6 in
(544 x 310 x 244 mm)

Included accessories

Sealed input cover plate with gland nut
Quick Hang Pan/Tilt wall bracket
Shoulder eyebolt safety tether anchor

Safety Agency

UL1480A
Transformer UL registered per UL1876, ROHS, CE compliant

1 -10dB from rated sensitivity
2 Full-space, 4m
3 Reference axis
4 200 - 10kHz average
5 1k - 10kHz average
6 IEC, 2hrs
7 Calculated from rated noise power and sensitivity
8 Reference plane is the plane coincident with the loudspeaker baffle plane. Reference axis is the axis perpendicular to the reference plane and passing through the center of the baffle. Vertical plane is the plane intersecting the reference plane at a right angle, including the reference axis and the taps selector knob. Horizontal plane is the plane intersecting the reference plane and the vertical plane at a right angle, including the reference axis.
9 Per EN54-24

As part of QSC's ongoing commitment to product development, specifications are subject to change without notice.
