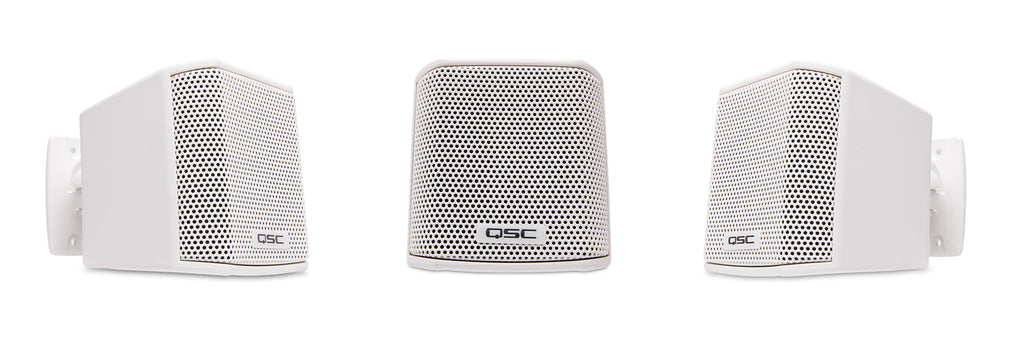

QSC AD-S.SAT-WH
Roll over image to zoom in Click on image to zoom
QSC AD-S.SAT-WH

QSC AD-S.SAT-WH

QSCSKU: AD-S-SAT-WH
Price:
$103.50

Description

2.75" Satellite surface speaker, 16?, 150° conical coverage, includes mounting bracket for surface installation. Available in white. Priced individually but must be purchased in pairs.

AD-S.SAT

2.75-inch Small Format Surface Satellite Loudspeaker

The QSC AD-S.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.


Features

  • Inverted aluminum dome dust cap
  • Rated at 16 ?
  • Locking 2-pole Euroblock connectors
  • X-Mount™ Mini mounting hardware provides repeatable angles without drift or sag
  • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
  • Available in black (RAL 9011) or white (RAL 9010)

Specifications AD-S.SAT
LF transducer N/A
HF transducer 2.75-inch (70 mm) weather treated paper cone woofer
Effective frequency range 150 Hz – 20 kHz
Rated noise power / voltage 6 25 W / 20 V (rms)
Sensitivity [dB]
(rated @ 1 W, 1 m)		 82
Coverage (?6 dB) [°] 170 Conical
Directivity factor TBD
Directivity index [dB] TBD
Maximum SPL [dB]
(rated, 1 m (continuous / peak)		 90 / 96
Recommended amplifier 25 W (with 1st order high-pass filter at 200 Hz)
Transformer taps / impedance Bypass: 16 ?
Connector 2-pole Euroblock
Enclosure material ABS
Grill material Powder coated steel
Ingress protection IP-34
Operating environment Designed for indoor use
Operating temperature range -4 to 122° F (-20 to 50° C)
Net weight 0.95 lb (433 g)
Product dimensions including wall bracket
(H x W x D)		 3.6 x 3.5 x 5.4-inch (92.5 x 89 x 136 mm)
Shipping weight TBD (pair packed)
Shipping dimensions (H x W x D TBD (pair packed)
Included accessories X-Mount Mini, Euroblock connector (pair packed)
Safety agency Transformer UL registered per UL1876, ROHS, CE compliant


As part of QSC's ongoing commitment to product development, specifications are subject to change without notice
