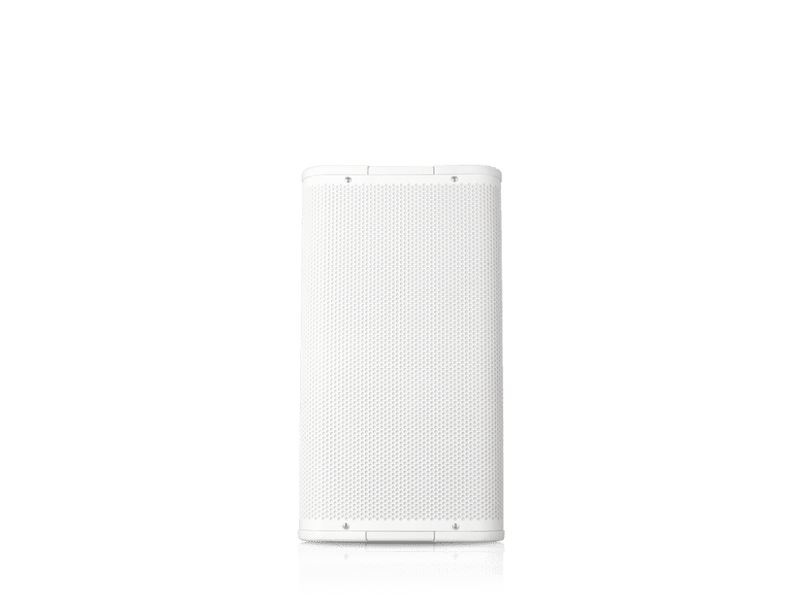

10" High-power two-way surface speaker, 105° conical DMT™ coverage, trapezoidal install enclosure with M10 suspension fittings. Available in white.

AP-5102

High-Power, 10-inch 2-way, 105?

Features

DMT™ (Directivity Matched Transition) ensures smooth, coherent power response across the listening plane
3-inch diaphragm compression delivers a clean and powerful high frequency response
M10 fittings and yoke mount fittings offer flexible deployment options for a variety of applications
Clean industrial design with unadorned grilles complement most decors and settings
NL4 Speakon connector and covered barrier strip terminals*
Bi-Amp / Passive Switchable
Constructed from 15-ply Baltic birch plywood
16-Gauge powder coated steel grilles
Available in black (RAL 9011) and white (RAL 9010)

AP-5102
Frequency response (-10 dB)	60 Hz - 18 kHz
Rated noise power / voltage1	450 watts / 54 volts rms
Broadband sensitivity2	94 dB SPL
Coverage angle	105? conical DMT
Directivity factor (Q)	4.6
Directivity index (DI)	6.6
Recommended crossover	950 Hz, 48 dB/octave
Maximum SPL at 1 m (passive)	121 dB continuous3 127 dB peak4
Rated impedance	8?
HF transducer	76 mm (3-inch) voice coil, compression driver; 72 W / 24 V (2 hours)
LF transducer	254 mm (10-inch) driver with 76 mm (3-inch) voice coil; 450 W / 54 V (2 hours)
Optional accessories	AP-YM12 Yoke mount M10 Kit-W
Enclosure details
Input connector	Covered barrier strip, NL4 connector
Enclosure material	15-ply Baltic birch plywood
Attachment points	Fifteen M10 threaded inserts
Color	Black (RAL 9011), White (RAL 9010)
Grille	16-gauge powder coated steel
Dimensions (HWD) inches	22 × 12 × 10.5
Dimensions (HWD) mm	559 x 305 x 267
Net weight	48 lb / 21.7 kg
1 Two hour rating using IEC60268 noise based on minimum impedance 2 Mid-band based on nominal impedance; 2.83 V at 1 m 3 Calculated as the nominal sensitivity plus 10× the log of continuous rated power in volts squared divided by nominal impedance 4 Calculated as the continuous calculated max output plus 6 dB

All specifications are subject to change without notice.
