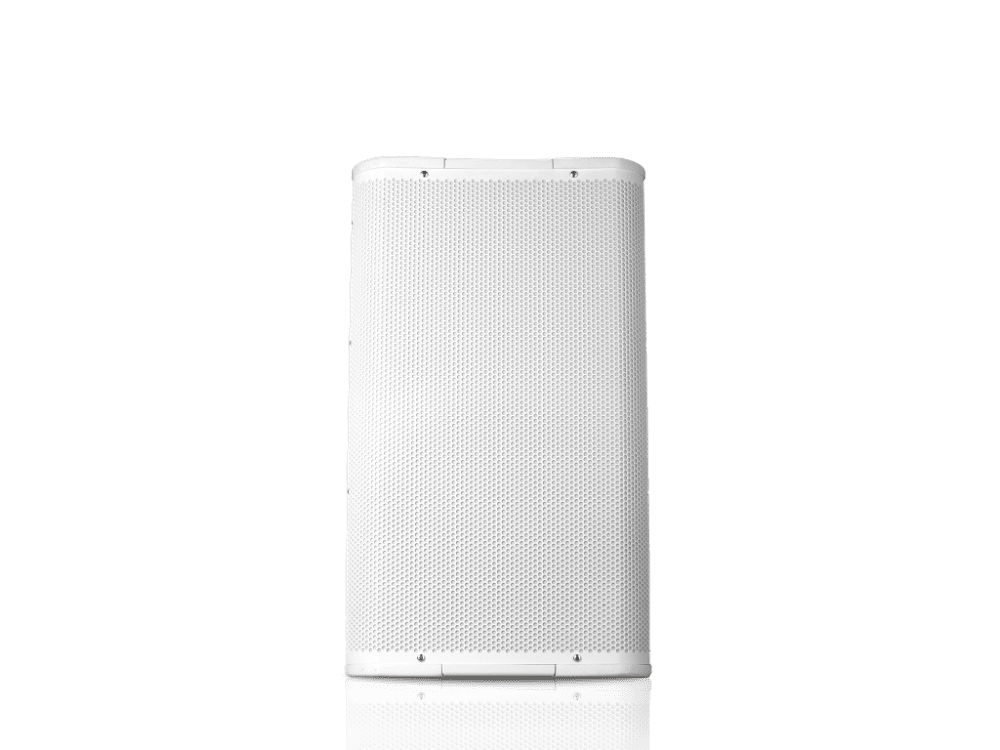

12" High-power two-way surface speaker, 90° conical DMT™ coverage, trapezoidal install enclosure with M10 suspension fittings. Available in white.

AP-5122

High-Power, 12-inch 2-way, 90?

Features

DMT™ (Directivity Matched Transition) ensures smooth, coherent power response across the listening plane
3-inch diaphragm compression delivers a clean and powerful high frequency response
M10 fittings and yoke mount fittings offer flexible deployment options for a variety of applications
Clean industrial design with unadorned grilles complement most decors and settings
NL4 Speakon connector and covered barrier strip terminals*
Bi-Amp / Passive Switchable
Constructed from 15-ply Baltic birch plywood
16-Gauge powder coated steel grilles
Available in black (RAL 9011) and white (RAL 9010)

	AP-5122
Frequency response (-10 dB)	48 Hz - 18 kHz
Rated noise power / voltage1	550 watts / 60 volts rms
Broadband sensitivity2	95 dB SPL
Coverage angle	90? conical DMT
Directivity factor (Q)	6.0
Directivity index (DI)	7.8
Recommended crossover	950 Hz, 48 dB/octave
Maximum SPL at 1 m (passive)	122 dB continuous3 128 dB peak4
Rated impedance	8?
HF transducer	76 mm (3-inch) voice coil, compression driver; 72 W / 24 V (2 hours)
LF transducer	305 mm (12-inch) driver with 102 mm (4-inch) voice coil; 550 W / 60 V (2 hours)
Optional accessories	AP-YM12 Yoke mount M10 Kit-W
Enclosure details
Input connector	Covered barrier strip, NL4 connector
Enclosure material	15-ply Baltic birch plywood
Attachment points	Fifteen M10 threaded inserts
Color	Black (RAL 9011), White (RAL 9010)
Grille	16-gauge powder coated steel
Dimensions (HWD) inches	26 × 15 × 13
Dimensions (HWD) mm	660 x 381 x 330
Net weight	65 lb / 29.5 kg
1 Two hour rating using IEC60268 noise based on minimum impedance 2 Mid-band based on nominal impedance; 2.83 V at 1 m 3 Calculated as the nominal sensitivity plus 10× the log of continuous rated power in volts squared divided by nominal impedance 4 Calculated as the continuous calculated max output plus 6 dB

All specifications are subject to change without notice.
