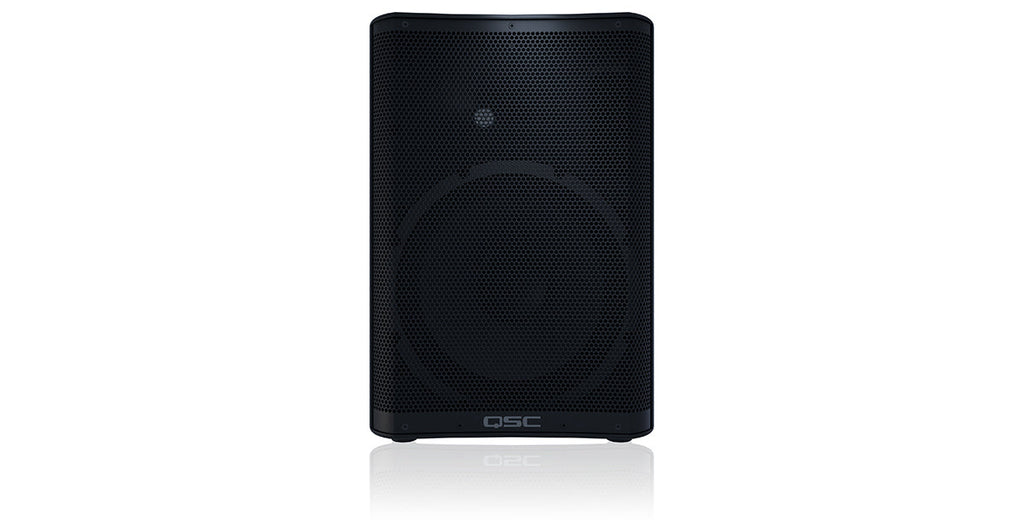

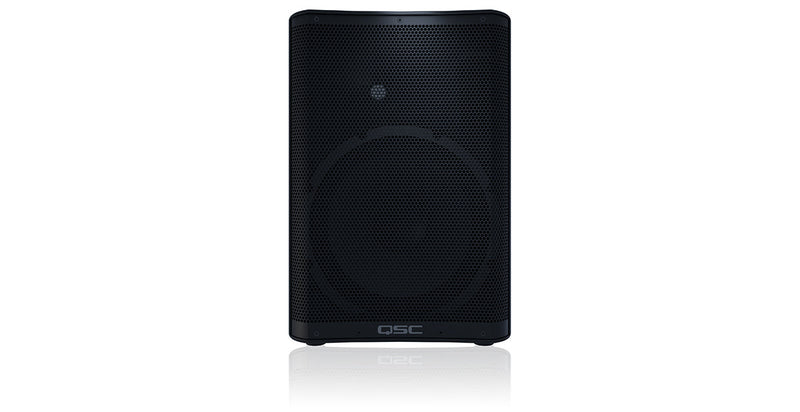

QSC CP12
Roll over image to zoom in Click on image to zoom
QSC CP12

QSC CP12

Save $102.60
QSCSKU: CP12
Price:
$599.99 $702.59

Description



CP12

12-inch Compact Active Loudspeaker

High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.


Features

  • Compact and powerful performance
  • 1000 Watt peak power Class-D amplifier module
  • Easily selected contours for commonly-used applications
  • Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
  • Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
  • Light weight and highly portable
  • Professional appearance looks great in any application
  • Use for main PA, stage monitor, or instrument amplifier
  • 35 mm pole socket
  • Optional yoke, tote, and outdoor cover accessories
  • Complete EASE and CAD information available online
  • 6-Year Warranty*

* 1 year warranty may be extended by an additional 5 years, with QSC Product Registration

Model CP12
Configuration Two-way active loudspeaker
LF Transducer: 305 mm (12 in), cone
HF Transducer: 35.6 mm (1.4 in) compression driver
Frequency Response (-6 dB) 49 - 20 kHz
Frequency Range (-10 dB) 47 - 20 kHz
Nominal Coverage Angle: 75° Axisymetric
Maximum Rated SPL1: 126 dB
Amplifier: Class D
Peak: 800 W (LF), 200 W (HF)
Controls: Power
2 × Gain
Mic Boost Push Switch
6-way Contour Selection Switch
Indicators: Power LED
2 × Input Signal LED
Input B MIC selected LED
Limiter active LED
Connectors: 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input)
1 × 3.5 mm TRS (Stereo Input)
1 × XLR/M (Mix Output)
1 × IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (1/8th Power): 100 VAC, 0.75A - 240VAC 0.31A
Enclosure Material: Polypropylene
Attachment Points: M8 threaded insert
Color: Black (RAL 9011)
Grille: 18 Gauge powder-coated steel
Speaker Dimensions (H×W×D): 516 × 350 × 323 mm
20.3 × 13.8 × 12.7 in
Carton Dimensions (H×W×D): 430 × 430 × 604 mm
17 × 17 × 23.8 in
Net Weight: 13.7 kg / 30.3 lb
Shipping Weight: 16.5 kg / 36.4 lb
Regulatory: EMC, UL, CB
Optional Accessories: CP12 Tote, CP12 Outdoor Cover, CP12 Yoke


1 Peak SPL is measured on-axis at 1 m, with dynamic pink noise

*Preliminary specifications are subject to change.
