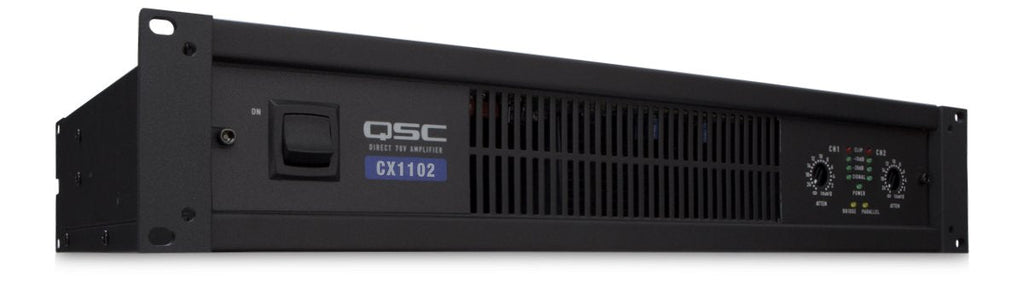

CX1102

2-Channel Low-Z Power Amplifier

Exclusive PowerLight switch-mode power supply technology for high performance and compact size
Custom integrated security cover for tamper proof installations
Variable speed fan for low noise
1-dB detented gain controls for fast and accurate gain settings
Active inrush limiting eliminates AC inrush current, removing the need for expensive power sequencers
XLR and detachable Euro style input connectors
HD15 DataPort connector for Q-SYS networked control and monitoring
Dip switch control for clip limiters, high pass filters, bridge mono and parallel operation
Selectable high pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (33 Hz or 75 Hz)
Comprehensive front panel indicators including signal, clip, protect and QSC's exclusive bridge mono and parallel input LEDs
Barrier strip output connector
Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
Class H complementary bipolar output circuitry for high efficiency
Optional external transformer accessory pack for isolated 25-, 70-, and 100-volt outputs
Compact size - only 2 rack units high and 14" deep for reduced rack cost and floor space
Lightweight - weighs only 21 pounds (9.5 kg) for easier racking and shipping
3-year warranty plus optional 3-year extended service contract
All CX Series amplifiers meet the European Union's 2006 RoHS directive to restrict the use of hazardous materials used in electronic devices.

SPEC	CX 302	CX 502	CX 702	CX 902	CX 1102	CX 302V	CX 602V	CX 1202V
	POWER PER CHANNEL, STEREO MODE, Both Channels Driven
8?, 20 Hz–20 kHz, 0.05% THD	200 W	300 W	425 W	550 W	700 W	-	550 W	700 W
4?, 20 Hz–20 kHz, 0.05% THD	325 W	500 W	700 W	900 W	1100 W	-	-	1100 W
2?, 1 kHz, 1% THD	600 W	800 W	1200 W	1500 W	1700 W	-	-	-
70V, 20 Hz–20 kHz, 0.05% THD	400 W with IT-42*	-	-	400 W	800 W	200 W	400 W	800 W
70 V, 1 kHz, 0.05% THD	-	-	-	440 W	1000 W	250 W	440 W	1000 W
70 V, 1 kHz, 1% THD	-	-	-	600 W	1200 W	300 W	600 W	1200 W
