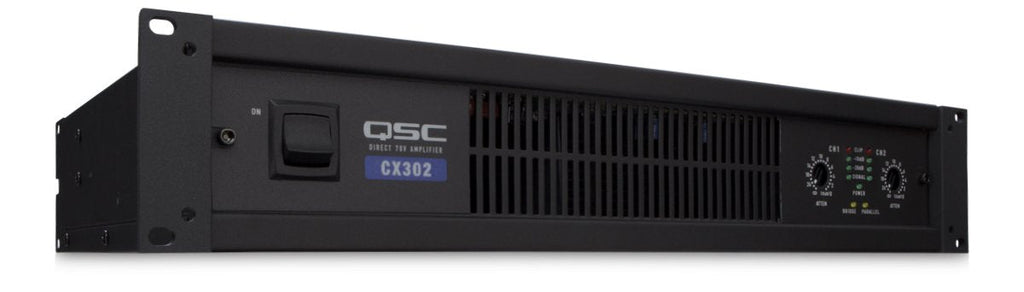

QSC CX302

QSCSKU: CX302

Price:
Sale price$1,450.00

Description



CX302

2-Channel Low-Z Power Amplifier



Features

  • Exclusive PowerLight switch-mode power supply technology for high performance and compact size
  • Custom integrated security cover for tamper proof installations
  • Variable speed fan for low noise
  • 1-dB detented gain controls for fast and accurate gain settings
  • Active inrush limiting eliminates AC inrush current, removing the need for expensive power sequencers
  • XLR and detachable Euro style input connectors
  • HD15 DataPort connector for Q-SYS networked control and monitoring
  • Dip switch control for clip limiters, high pass filters, bridge mono and parallel operation
  • Selectable high pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (33 Hz or 75 Hz)
  • Comprehensive front panel indicators including signal, clip, protect and QSC's exclusive bridge mono and parallel input LEDs
  • Barrier strip output connector
  • Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
  • Optional external transformer accessory pack for isolated 25-, 70-, and 100-volt outputs (converts CX302 to 400 watts per channel, or 300 watts into 25 V)
  • Compact size - only 2 rack units high and 14" deep for reduced rack cost and floor space
  • Lightweight - weighs only 21 pounds (9.5 kg) for easier racking and shipping
  • 3-year warranty plus optional 3-year extended service contract
  • All CX Series amplifiers meet the European Union's 2006 RoHS directive to restrict the use of hazardous materials used in electronic devices.

SPEC

CX

302

CX

502

CX

702

CX

902

CX

1102

CX

302V

CX

602V

CX

1202V

  POWER PER CHANNEL, STEREO MODE, Both Channels Driven

8?, 20

Hz–20 kHz,

0.05% THD

200 W 300 W 425 W 550 W 700 W - 550 W 700 W

4?, 20

Hz–20 kHz,

0.05% THD

325 W 500 W 700 W 900 W 1100 W - - 1100 W

2?, 1 kHz,

1% THD

600 W 800 W 1200 W 1500 W 1700 W - - -
70V, 20 Hz–20 kHz, 0.05% THD 400 W
with IT-42*
- - 400 W 800 W 200 W 400 W 800 W
70 V, 1 kHz, 0.05% THD - - - 440 W 1000 W 250 W 440 W 1000 W
70 V, 1 kHz, 1% THD - - - 600 W 1200 W 300 W 600 W 1200 W
