QSC E110
Roll over image to zoom in Click on image to zoom
QSC E110

QSC E110

Save $114.50
QSCSKU: E110
Price:
$599.99 $714.49

Description



E110

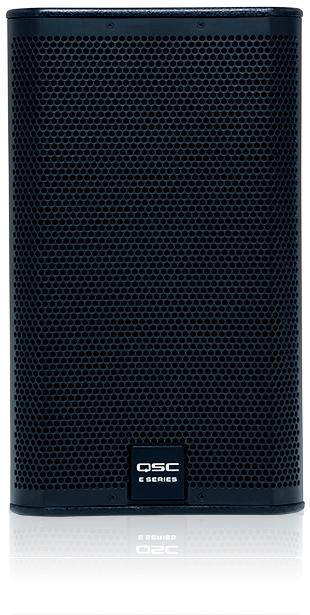

The E110 is a compact, two-way loudspeaker with a 10-inch, die cast frame woofer with a 2.5-inch voice-coil housed in a multi-purpose enclosure that’s at home in stage monitor or main PA deployment. It incorporates QSC’s DMT (Directivity Matched Transition) design with a wide 85° coverage. When used as a stage monitor, the E110 is angled up at a 55° angle allowing it to be placed near the performer when used on a crowded stage.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.


Features

  • High output, professional quality sound with 300 W continuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
  • E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:

             - For PLD/CXD visit Amplifier Navigator Software
             - For GXD visit the GXD Firmware Updater

  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Suitable for main PA and stage monitor
  • Available U-Style Yoke and M8 rigging kit for permanent installation
  • Dual angle pole socket

Model E110
Configuration 1 × 10-inch, 2-way, non-powered
Frequency Response (-6 dB) 68Hz – 20kHz
Frequency Range (-10 dB) 50Hz - 20kHz
Power capacity²: continuous/peak 300 W / 1200 W
Sensitivity 95 dB, 1 W @ 1 m
Coverage Angle 85° conical DMT
Output1 (Peak SPL @ 1m) 126 dB

Drivers

LF

HF



254 mm (10 in) driver with 64 mm (2.5 in) voice coil;

25 mm (1 in) exit, 45 mm (1.75 in) voice coil, compression driver
Nominal Impedance 8?
Cross-over Full-range only, 1.8 kHz
Input Connections 2 × NL4, 1 × barrier strip
Enclosure Multi-angle plywood, black texture paint finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining.
Mounting and suspension 9 × M8 suspension points, dual angle, 35 mm pole-socket
Speaker Dimensions
(W×H×D) 		 330 × 560 × 330 mm
13 × 22 × 13 in
Carton Dimensions (H×W×D) 430 × 430 × 660 mm
17 × 17 × 26 in
Net speaker weight 20 kg / 44 lb
Shipping weight 23 kg / 50 lb


1 With QSC Processing
2 Power that the device can withstand for two hours without permanent change in acoustical, mechanical, or electrical characteristics, greater than 10%, using IEC60268 noise based on nominal impedance in the cabinet with Xover, full range 30 Hz 12 dB/oct.

*Preliminary specifications are subject to change.
