Save $291.00
QSCSKU: K12.2
Price:
$899.99 $1,190.99

Description

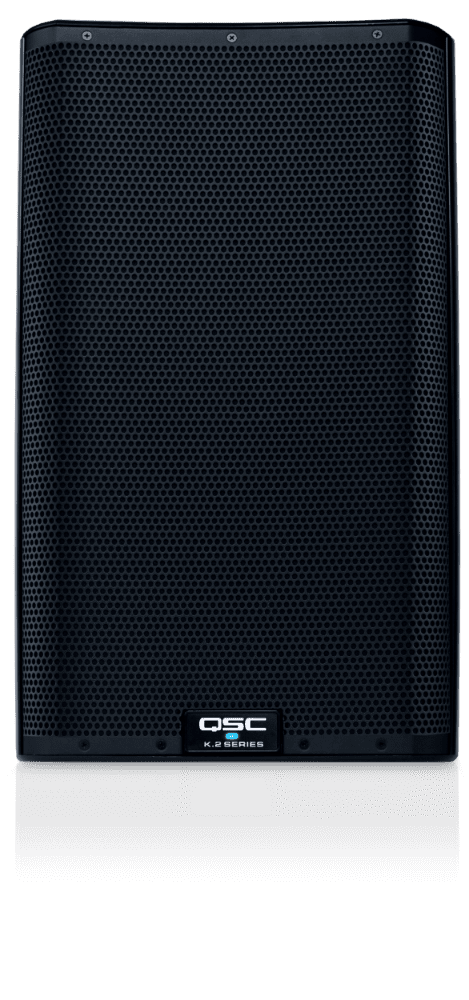

K12.2

Active 12-inch 2-way

The QSC K.2 Series™ represents the best-inclass loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.


Features

  • Best in class audio performance
  • 2000 Watt Class-D amplifier module
  • Intrinsic Correction™ tuning and  loudspeaker management
  • Directivity Matched Transition™ (DMT)  design provides excellent power response and consistent performance across the listening area
  • Refined, professional appearance looks great in any application
  • Rugged ABS enclosure for long life and lasting durability

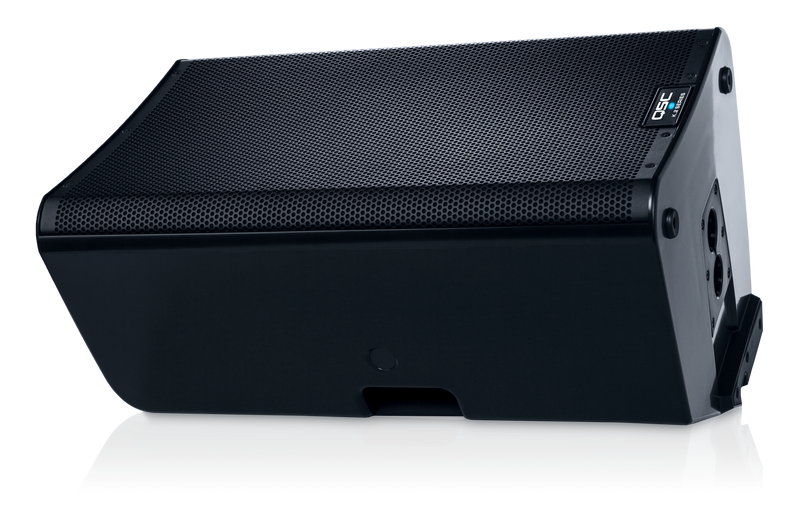

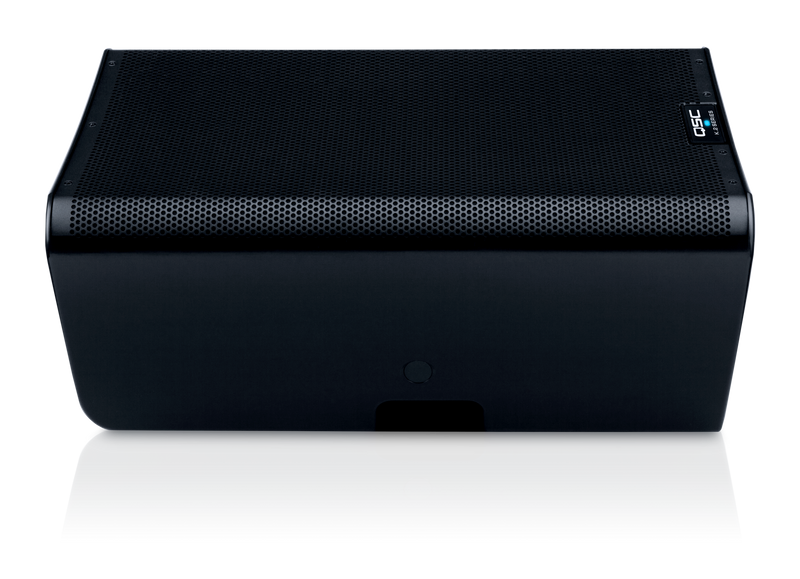

  • Deployment in either main PA or floor monitor position
  • Factory Presets and savable/recallable Scenes for commonly-used application
  • Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour

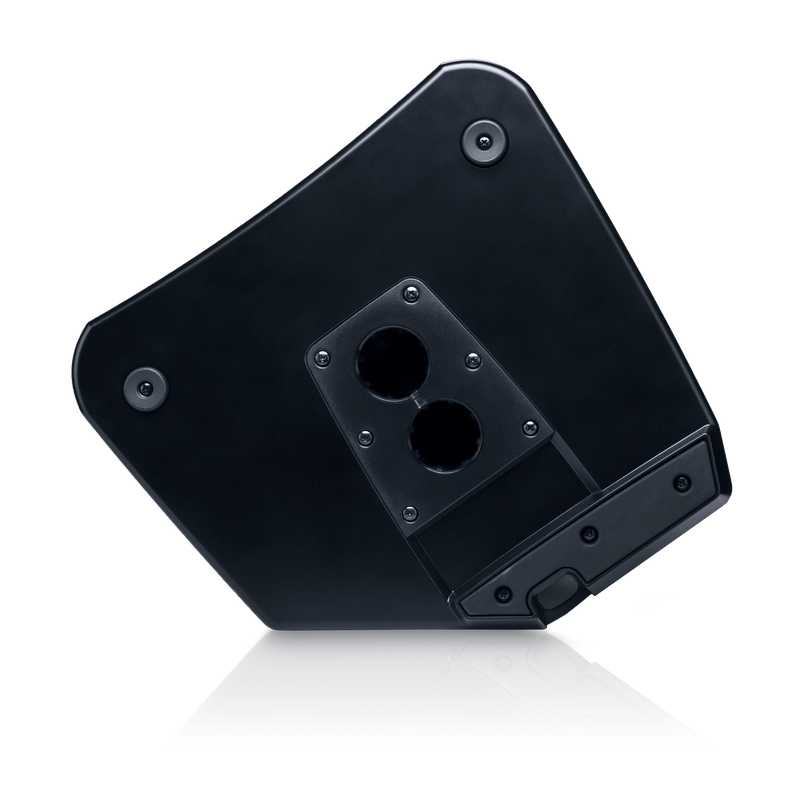

  • Dual pole cup mounts (standard and 7.5 degree down-tilt)
  • M10 fittings for flown applications
  • Optional security panel prevents  unauthorized tampering of controls
  • Complete EASE and CAD information  available online
  • 6-Year Warranty (with product registration)

Model K12.2
Configuration Multi-purpose, 2-way active loudspeaker
LF Transducer 305 mm (12-inch), cone
HF Transducer 35.6 mm (1.4-inch) titanium diaphragm compression driver
Frequency Response (-6 dB) 50 Hz - 20 kHz
Frequency Range (-10 dB) 45 Hz - 20 kHz
Nominal Coverage Angle 75° Axisymetric
Maximum Rated SPL1

Amplifier

Cooling		 132 dB @ 1 M, peak 126 dB @ 1 M, continuous

Class D
Peak: 1800 W (LF), 225 W (HF)

Low-noise, variable speed fan

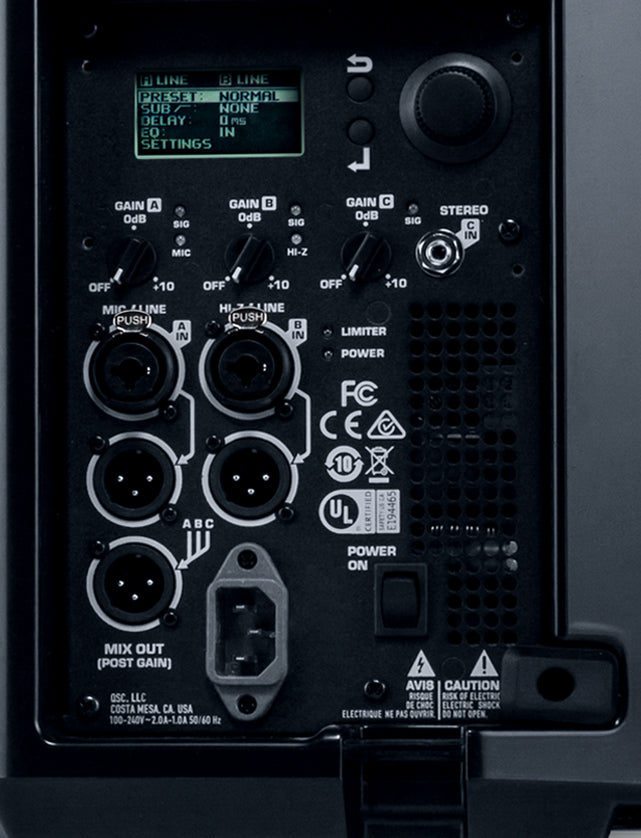

Controls Power
3 × Level
Rotary encoder (push)
2 × selection buttons
Indicators Monochrome LCD Display 1.75-inch x 1-inch (45 mm x 25.4 mm)
2 × Power LED (front and rear)
3 × Input Signal LED
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED

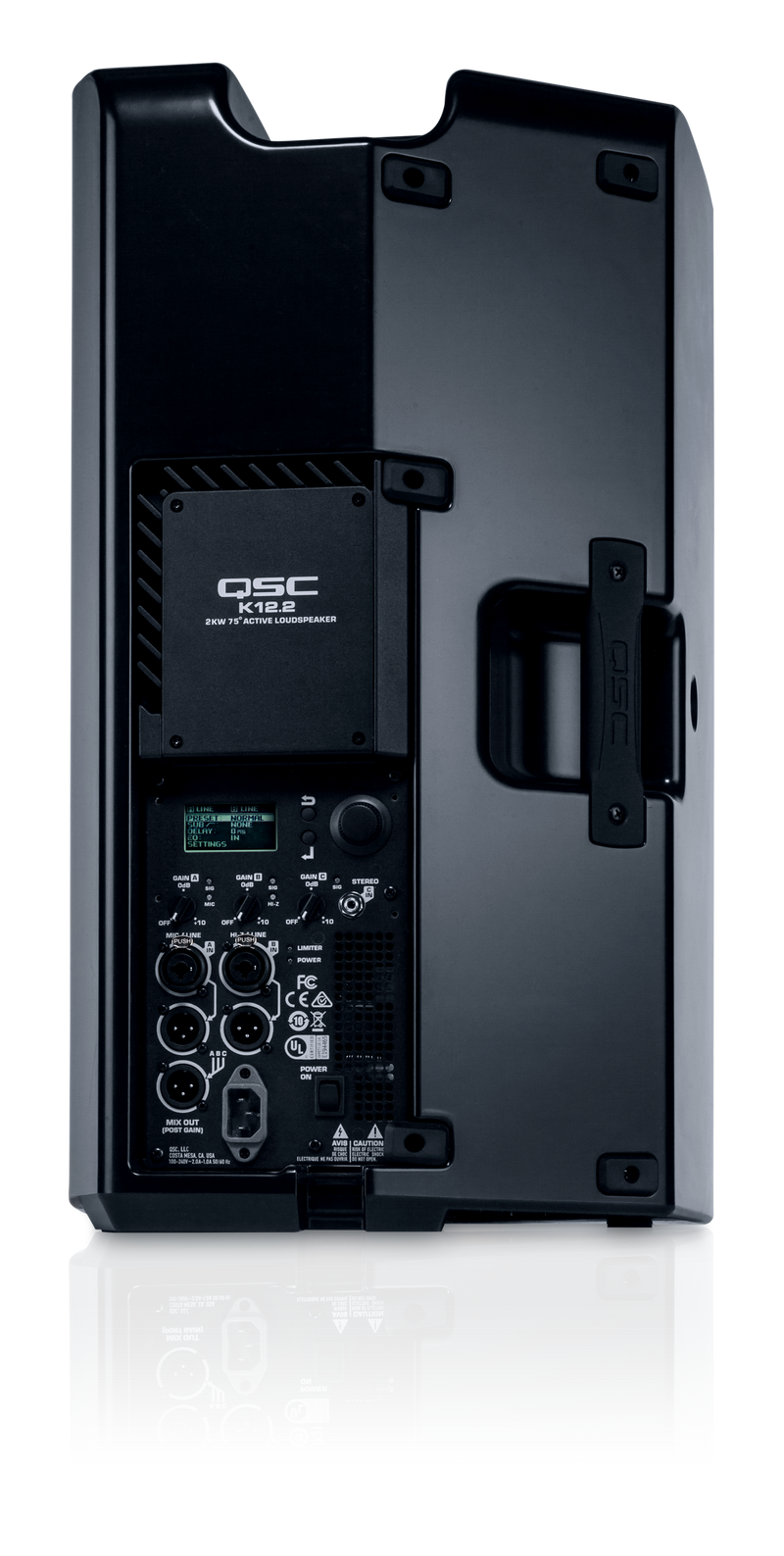

Connectors 2 × locking XLR/F ¼????? combo (Mic/Line Input and Hi-Z/Line Input
1 × 3.5 mm TRS (Stereo Input)
2 × XLR/M (Loop-thru Output)
1 × XLR/M (Mix Output)
1 × locking IEC power connector
AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power2 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
AC Power Consumption - Standby 0.2 A at any voltage
Enclosure Details
Enclosure Impact Resistant ABS
Attachment Points 2 × M10 threaded inserts plus Pull-Back
Color Black (RAL 9011)
Grille 18 Gauge powered coated steel, internal cloth lining
Speaker Dimensions (HxWxD) 602 × 356 × 350 mm
23.7 × 14 × 13.8 in
Carton Dimensions (HxWxD) 570 × 470 × 464 mm
22.5 × 18.5 × 18.3 in
Net Weight 17.7 kg / 39 lb
Shipping Weight 21.6 kg / 47.6 lb
Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories K12 Tote, K12 Outdoor Cover
M10 Kit-C, K.2-LOC LockOut Cover
K12.2 Yoke

1 Calculated for 1 m, based on sensitivity (full-space for full range systems and half-space for LF-only and subwoofer systems) and peak power capability of amplifier.
2 1/8 power is representative of current draw with typical music program material with occasional clipping.

All specifications are subject to change without notice.
