QSC KS112
Roll over image to zoom in Click on image to zoom
QSC KS112

QSC KS112

Save $428.60
QSCSKU: KS112
Price:
$999.99 $1,428.59

Description

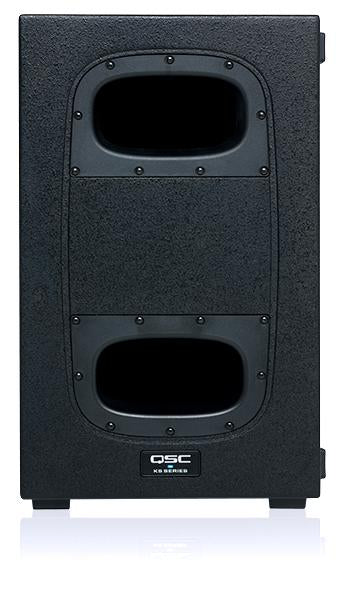

The KS112 is an ultra-compact active subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 Watt peak power Class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).


Features

  • High Output in an ultra-compact form factor

  • 2000 Watt Class D amplifier module

  • 12-inch, long-excursion driver; 6th order bandpass design

  • Intrinsic Correction™ tuning and loudspeaker management

  • Refined, professional appearance looks great in any application

  • Rugged painted wood enclosure for long life and lasting durability

  • Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings

  • Optional KS-LOC security cover prevents unauthorized tampering of controls

  • Complete EASE & CAD information available online

  • 6-Year Warranty*



SPECIFICATIONS KS112
Configuration 6th-Order Bandpass Subwoofer
LF Transducer 305 mm (12 in), Cone
Frequency Response (-6 dB) 41 Hz - 108 Hz
Frequency Range (-10 dB) 38 Hz - 121 Hz
Maximum Rated SPL1 128 dB @ 1 m (peak)
Amplifier Class D
2000W (peak)
Cooling Low-noise, variable speed fan
Controls Power On/Off
Gain Control
Rotary encoder
2 × selection buttons
Indicators 2 × Power LED (front and rear)
Input Signal LED
Limiter Active LED
Connectors 2 × locking XLR/F 1/4-inch combo
2 × XLR/M (Loop-thru Output)
1 × locking IEC power connector
AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
Enclosure Details
Enclosure 15 mm Birch Plywood
Color Black (RAL 9011)
Grille Internal woofer cover
Speaker Dimensions (H×W×D) 622 × 394 × 616 mm
24.5 × 15.5 × 24.25 in
Carton Dimensions (H×W×D) 740 × 500 × 673 mm
29 × 19.7 × 26.5 in
Net Weight 28.4 kg / 62.6 lb
Shipping Weight 35 kg / 77.2 lb
Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Included Accessories 4 × Low-Noise, Heavy Duty Casters
Optional Accessories

KS112 CVR Transport Cover, KS-LOC Lock-Out Cover
SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole

1 Peak SPL is measured on-axis at 1m, pink noise crest factor 10dB, unweighted Continuous SPL is based on theoretical calculations based upon transducer sensitivity and peak available power (for comparison purpose and in accordance with common industry practice.

All specifications are subject to change without notice.
