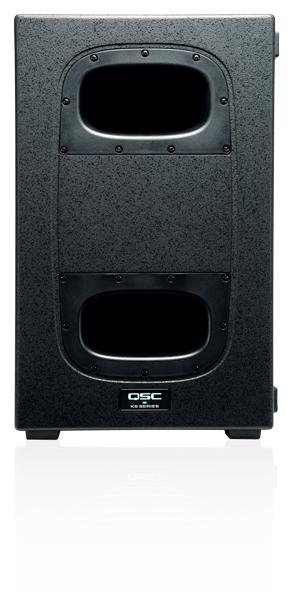

QSC KS212C
Roll over image to zoom in Click on image to zoom
QSC KS212C

QSC KS212C

Save $169.50
QSCSKU: KS212C
Price:
$2,099.99 $2,269.49

Description



KS212C

K Cardioid Subwoofer

The KS212C subwoofer represents the world’s first-in-class single-box active cardioid subwoofer solution for highly portable entertainment and installation applications.

A breakthrough in innovation and design, the 3,600 Watt KS212C subwoofer uniquely provides all the benefits of cardioid deployment in a single, compact enclosure. “Keeping bass in its place” for mobile entertainers, AV production and rental professionals, as well as modestly-sized performance venues, the KS212C subwoofer is unparalleled in its ability to manage low frequencies on the stage, or any application where undesirable low frequency energy needs to be minimized.


Features

  • 3600 Watt Class D power module

  • Dual 12-inch long excursion drivers; Dual 6th order band-pass design

  • 15 dB SPL attenuation front-to-rear

  • Two M20 threaded sockets (one on top, one on side) accept 35 mm speaker pole

  • Four low-noise, heavy-duty casters

  • HxWxD = 24.5-inch x 15.5-inch x 33.5-inch (622 x 394 x 851 mm)

  • Net Weight: 40.1 kg (88.5 lbs)

Powered by a 3,600 Watt Class D amplifier, processed with the latest DSP technology, and featuring dual 12-inch long excursion drivers each arranged in a 6th order band pass chamber, these components all combine seamlessly to produce a staggering 15 dB more output at the front of the cabinet than at the rear. Highly portable, the cabinet features comfortable, aluminum handles and four, rear-mounted casters. Two M20 sockets accept a 35 mm loudspeaker pole in either horizontal or vertical orientation.

SPECIFICATIONS KS212C
Configuration Dual 6th-order bandpass cardioid subwoofer
LF Transducer 2 × 305 mm (12 in), cone
Frequency Response (-6 dB) 44 Hz - 104 Hz
Frequency Range (-10 dB) 39 Hz - 118 Hz
Nominal Coverage Angle 180? Cardioid (15dB rear rejection @ 70Hz)
Maximum Rated SPL1 132dB @1m, peak
Amplifier Class D
2 × 1800W (peak)
Cooling Low-noise, variable speed fan
Controls Power
Gain
Rotary encoder
2 × selection buttons
Indicators 2 × Power LED (front and rear)
Input Signal LED
Limiter active LED
Connectors 2 × locking XLR/F ¼????? combo
2 × XLR/M (Loop-thru Output)
1 × locking IEC power connector
AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th power
Enclosure Details
Enclosure 15mm birch plywood
Color Black (RAL 9011)
Grille Internal woofer cover
Speaker Dimensions (H×W×D) 622 × 394 × 851 mm
24.5 × 15.5 × 33.5 in
Carton Dimensions (H×W×D) 970 × 500× 670 mm
38.2 × 19.7 × 26.4 in
Net Weight 40.1 kg / 88.5 lb
Shipping Weight 50 kg / 110.3 lb
Regulatory CE, WEEE, UL, CHina RoHS, RoHS II, FCC Class B
Optional Accessories KS212CCVR Transport Cover, KS-LOC Lock-Out Cover
SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole

1 Peak SPL is measured on-axis at 1m, pink noise crest factor 10dB, unweighted Continuous SPL is based on theoretical calculations based upon transducer sensitivity and peak available power (for comparison purpose and in accordance with common industry practice.

All specifications are subject to change without notice.
