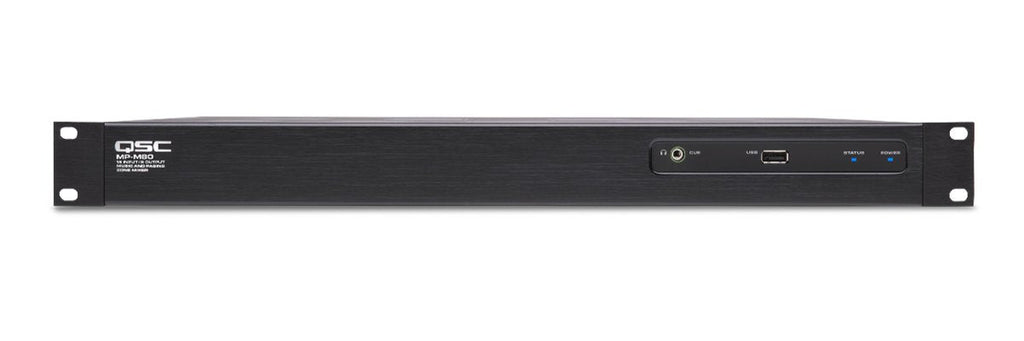

QSC MP-M80
Roll over image to zoom in Click on image to zoom
QSC MP-M80

QSC MP-M80

QSCSKU: MP-M80
Price:
$1,900.00

Description



MP-M80

Music and Paging Mixer

The QSC MP-M music and paging mixers are fixed architecture mixer/processors offering unprecedented capabilities combined with ease of configuration and operation. The products are intended for retail and hospitality applications in which high-quality audio from various sources is routed to multiple zones. Live mixing functions are also supported for applications requiring reinforcement of entertainment, presentations or conferences.


Features

  • Easy configuration and design: MP Install app gives you an attractive graphic user environment with an intuitive workflow and controls that make it simple to manage all the inputs and outputs.
  • Workflow Wizard: Helps the installer keep track of tasks and easily navigate the mixer.
  • QSC loudspeaker voicings: Apply Intrinsic Correction™ (factory FIR/IIR presets) to QSC loudspeakers to maximize the performance and value of the system.
  • Customized control level: Fine tune controls to allow as much or as little as the installation requires on the available MP-M Series control peripherals.
  • Wired/wireless control options: Use optional MP-MFC wall-mounted controllers with graphic display to control zone source selection, zone output levels, input level selection and scene recall. MP Manage app expands these control options with wireless, more granular controls. In both cases, facility staff may be restricted to only those controls that they are authorized to use.
  • Complimentary aesthetics: MP-M Series mixers match the appearance aesthetic of the QSC MP-A Series music and paging amplifiers for an installation that looks as good as it sounds.

Model MP-M40 MP-M80
Inputs
Total 8 16
Mic/Line 4 (Euroblock) 8 (Euroblock)
RCA 4 (mono-summed RCA pairs) 8 (mono-summed RCA pairs)
Outputs
Total 6 10
Line 4 (Euroblock, balanced) 8 (Euroblock, balanced)
Music on Hold 1 (Euroblock, transformer balanced) 1 (Euroblock, transformer balanced)
Cue (phones) 1 (3.5 mm, stereo) 1 (3.5 mm, stereo)
Input Processing
EQ 4-band parametric EQ with high/low shelving option, variable 24/octave HPF and LPF
Dynamics Gate, choice of Auto Gain Control (AGC) or Compressor
Output Processing
EQ 1/3 octave GEQ
Anti-feedback Filters 12-band variable notch filters
Dynamics Comp/limiter, ducker, loudness
Delay 100 msec
Loudspeaker tunings Factory: Intrinsic Correction™ voicing for QSC loudspeakers
User: 6-band parametric EQ, HPF & LPF (Linkwitz-Riley or Butterworth; 12, 18 or 24 dB/octave)
Effects & RTA
Effects 1 multi-effects processor
RTA 1/3 octave RTA
Control Accessories
MP-MFC Optional wall controller
MP Install app For configuration/design functions (for iOS/Android tablets, Windows and Mac OS PCs),
MP Manage app For end user control functions (for iOS/Android tablets and smartphones)
Other Connections
Ethernet 1 × RJ45 for connection to Wi-Fi router (user supplied)
MP-MFC ports 2 × RJ45
GPI 2 Inputs (Euroblock)
Net Dimensions (HWD) 45 × 483 × 356 mm
1.75 × 19 × 14-in
Weight - Shipping 5.0 kg / 11 lb
Weight - Net 3.2 kg / 7 lb
Phantom Power All microphone inputs (+12 volts)
Power Requirements TBD W, 100-240 VAC, 50-60 Hz, universal supply, IEC inlet
Indicators Blue POWER LED, blue STATUS LED

All specifications are subject to change without notice
