QSC MP-MFC-BK
Roll over image to zoom in Click on image to zoom
QSC MP-MFC-BK

QSC MP-MFC-BK

QSCSKU: MP-MFC-BK
Price:
$320.00

Description

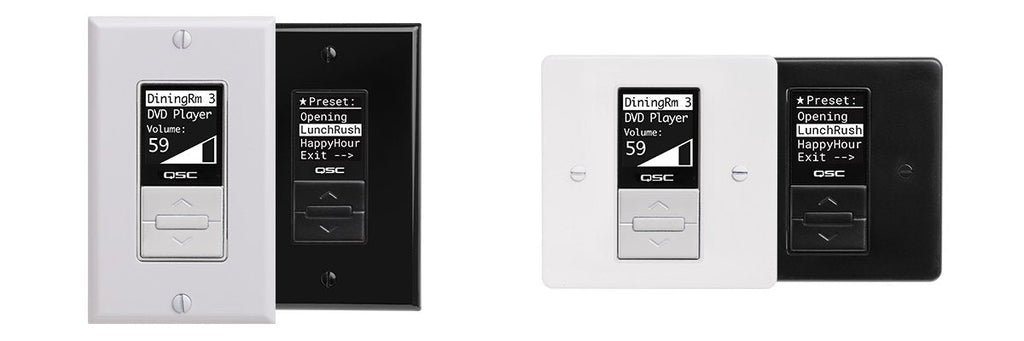

MP-MFC Controller

Wall mount controller for MP-M Series mixers

The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer.  Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.


Features

  • For use with the MP-M paging and music mixer/processor only
  • Control zone source selection, zone output level, input level selection and scene recall
  • Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
  • Ability to daisy chain up to four MP-MFC controllers
  • Up to 250 m cable length (CAT5)
  • Up to eight MP-MFC controllers per MP-M Series mixer
  • Available in black or white
  • Available in NA and EU sizes

Model MP-MFC
Controls Three buttons (increment, decrement, and select)
Connectors 2× RJ45
Display 128 × 128 pixels, 27 (L) × 26 (W) mm viewing area
Available Colors Black, white
Connection Max Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length
Total:  Up to 8 controllers per MP-M Series mixer
Versions MP-MFC-NA-BK – North American version, black
MP-MFC-NA-WH – North American version, white
MP-MFC-EU-BK – European version, black
MP-MFC-EU-WH – European version, white
Dimensions (H×W×D)
North American versions 		114 × 7 × 35 mm
4.5 × 2.75 × 1.4 in
Dimensions (H×W×D)
European versions 		89 × 89 × 36 mm
3.5 × 3.5 × 1.4 in
Net Weight All Versions: 0.1 kg / 0.2 lb
