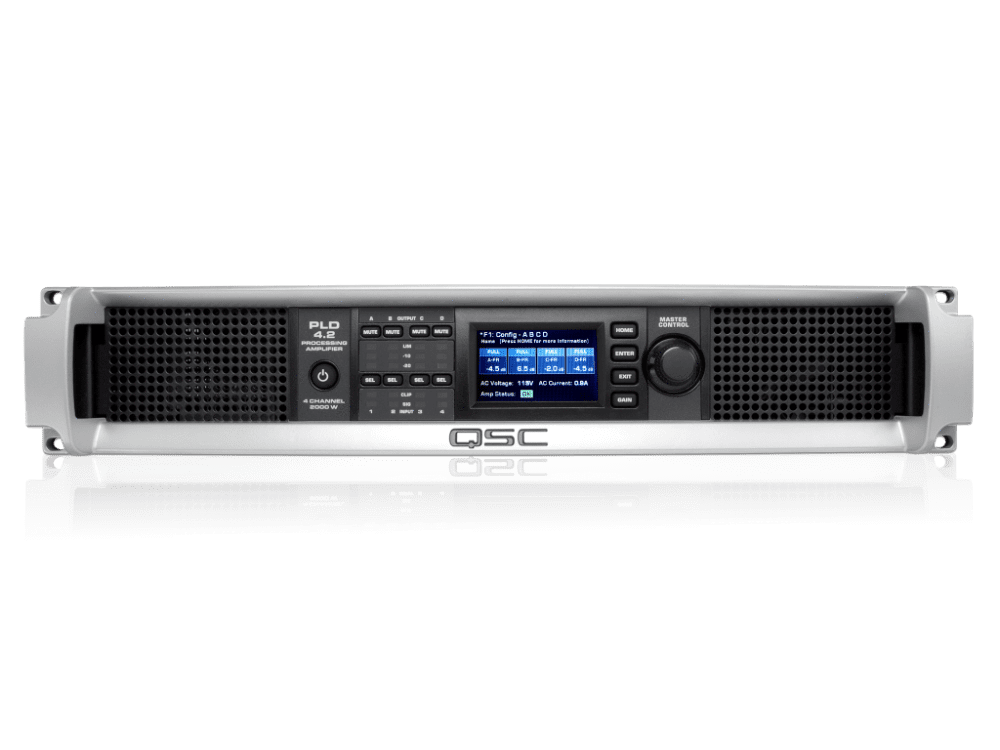

QSC PLD4.2
Roll over image to zoom in Click on image to zoom
QSC PLD4.2

QSC PLD4.2

Save $230.50
QSCSKU: PLD4-2
Price:
$1,339.99 $1,570.49

Description



PLD4.2

Processing Amplifier

With four flexible channels of up to 700 watts each, lightweight PowerLight universal power supply, DSP on-board for each channel, and all the right connectors, the PLD4.2 is ideal for production and live sound applications.


Features

  • Flexible Amplifier Summing Technology™ (FAST) drives most any loudspeaker system or configuration by distributing total amplifier power across one, two, three, or all four channels.
  • Four channels of full function onboard loudspeaker DSP with crossover and parametric EQ filters, limiting and alignment delay eliminate the need for outboard loudspeaker processors.
  • E Series Entertainment System DSP Tunings are now available for PLD processing amplifiers:

             - Visit the Amplifier Navigator Software to download and update

  • Powerful Intrinsic Correction™ processing maximizes the sonic performance of QSC loudspeakers.
  • 20 factory preset configurations that can be modified and stored in the 50 user presets.
  • PowerLight universal switch mode power supply with PFC for highest efficiency, improved audio performance, and low weight.
  • Four input XLR connectors and six NL4 output connectors.
  • Integrated front panel with channel Select and Mute buttons, input and output LED metering, 400×240 LCD, intuitive navigation buttons, LED power button and indicator, and cast aluminum handles.
  • Preset Wizard simplifies amplifier configuration, providing selection from a list of the top selling passive loudspeakers.




General Specifications

    PLD4.2 PLD4.3 PLD4.5
Typical Distortion
0.01–0.06%
Maximum Distortion   1.0%
Frequency response   20 Hz–15 kHz ±0.2 dB
20 Hz–20 kHz +0.2/-0.7 dB
Noise:
Unweighted Output Unmuted
-101 dB
Noise:
Weighted Output Muted		   -109 dB
Gain 1.2V 34.0 dB 38.4 dB 38.4 dB
Damping factor   >150
Input impedance   >10 k?, balanced or unbalanced
Maximum rms input level 3.9V
12.28 V (+24 dBu)
1.2V 3.88 V (+14 dBu)
Amplifier and load protection   Short circuit, open circuit, thermal, RF protection. on/off muting, DC fault shutdown, active inrush limiting, input current limiting
AC Power Input   4.2: Universal Power Supply 100-132/200–240 VAC, 50–60 Hz
4.3/4.5: Universal Power Supply 100–240 VAC, 50–60 Hz
