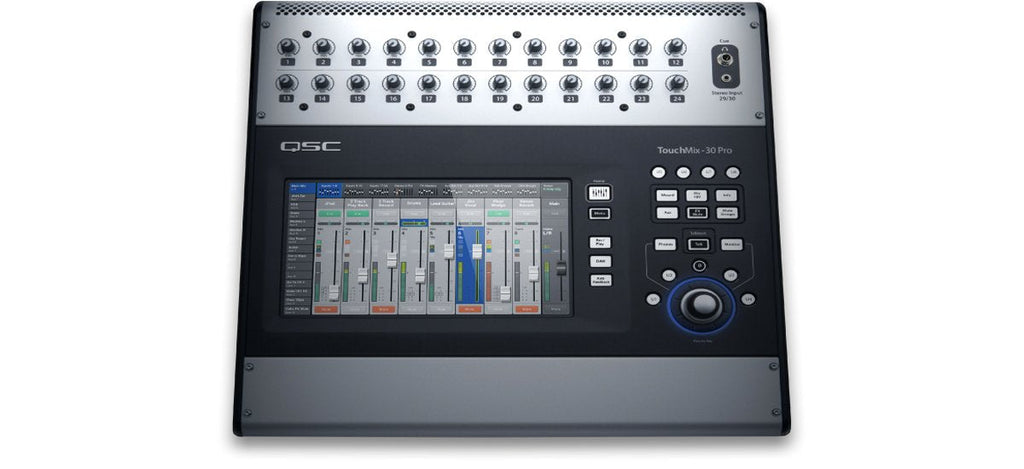

TouchMix-30 Pro

32-Channel Professional Digital Mixer

TouchMix is quite simply the most powerful, compact mixer ever created. It offers the features, capabilities and sound quality of the world's most esteemed large format consoles in a highly compact and portable package that’s small enough to be carry-on luggage. Perfect for musicians, larger bands, AV production professionals and performance venues, the TouchMix-30 Pro goes "Beyond Mixing" by offering Wizards, Presets and other beneficial tools that help seasoned audio professionals and novices alike get great results quickly and easily.

Its 32 mixing channels (24 Mic/Line, 6 Line, Stereo USB) and 16 outputs offer tremendous signal management ?exibility for a wide range of applications. Advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, two real-time analyzers (RTA), patch matrix, 32-channel direct-to-external-drive recording and DAW interface with MacOS® and Windows® computers make it equally competent as both a professional live sound and a recording tool.

The touch-and-turn interface of TouchMix allows for tactile control over fader and mixer parameters while also providing a hardware connection to mixer functions. Mixer functions and displays are duplicated via iOS or Android devices over Wi-Fi, providing both portable, wireless connectivity as well as additional control surfaces of mixer functionality.

With firmware version 2.0, TouchMix-30 Pro now supports 3 custom fader banks of 8 channels each, allowing versatile, personalized channel display for the most demanding users and applications. This latest firmware version also gives the TouchMix-30 Pro the capability to interface with select third party control surfaces with motorized faders using Mackie Control Protocol. Two modes of operation exist: TouchMix-30 Pro mixer wired to the control surface, or iOS tablet paired with the control surface and connected to the TouchMix-30 Pro mixer via Wi-Fi. The complementary new channel strips display presents controls and indicators for the selected fader group.

• Large (10-inch) multi-touch touchscreen offers a wealth of on-screen information while also providing confident hands-on control
• Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
• Two real-time analyzers (RTA) provide instantaneous display of channel tonal balance and room response
• Touch-and-route patch matrix provide easy “multing” and rearrangement of inputs
• 14 Aux mixes provide ample monitor configuration options
• Eight sub-groups with 6-band full parametric EQ, variable high- and low-pass ?lters and limiter may be linked for stereo
• A gain sharing Automatic Microphone Mixer is available for all 24 mic/line input channels
• 32-channel direct-to-hard drive record/playback — capture and recall performances without the need for an external computer
• 32-channel DAW interface with macOS® and Windows® computers allows for bidirectional I/O with popular workstation software
• MP3 playback direct from USB
• Download future upgrades directly from the Internet

1 A list of drives that have been validated by QSC may be found at qsc.com. The hard drive market is continuously changing. There are many drives QSC has not validated that are compatible with TouchMix multi-track recording. Always test external drives for compatibility before using. Minimum requirement is USB 3.0  SSD (recommended) or minimum 7800 RPM hard-drive , FAT32 format.
2 The TouchMix Personal Monitor App requires iOS 8 or higher.
3 TouchMix mixers do not support off the shelf USB Wi-Fi adaptors. Only QSC part number CP-000033-00 is supported.

All specifications are subject to change without notice.
