Description

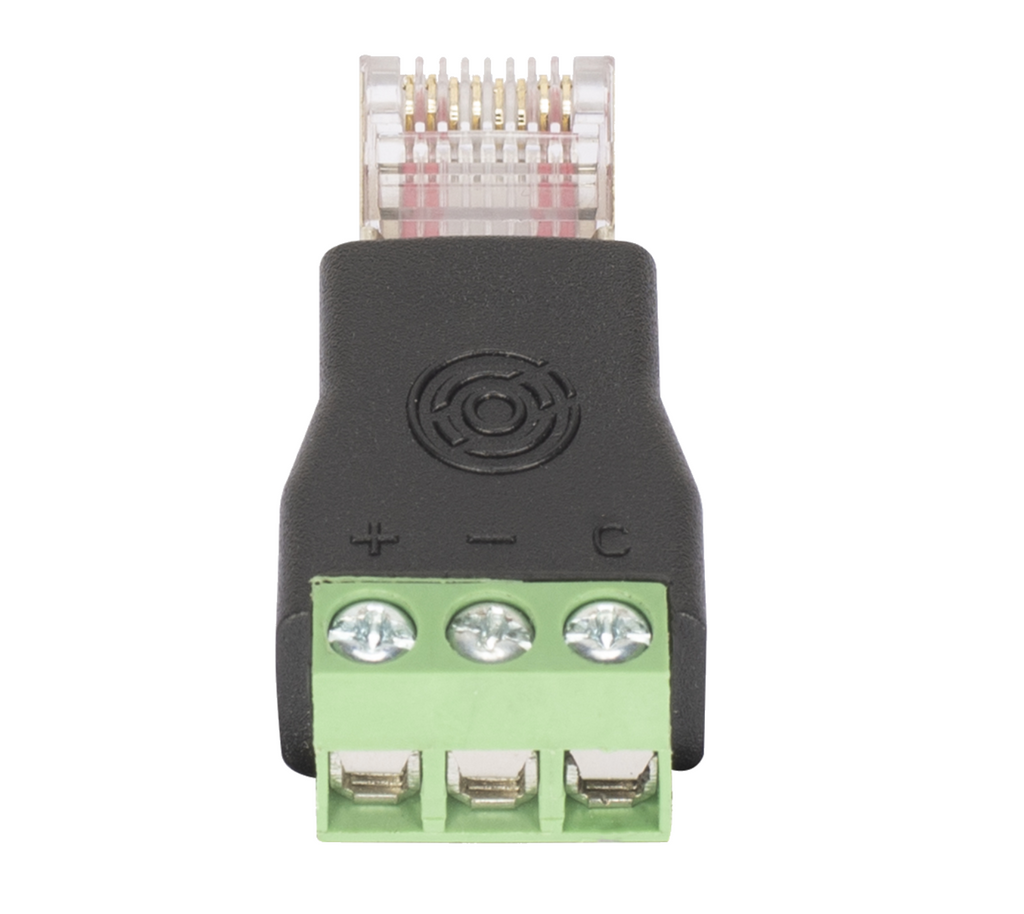

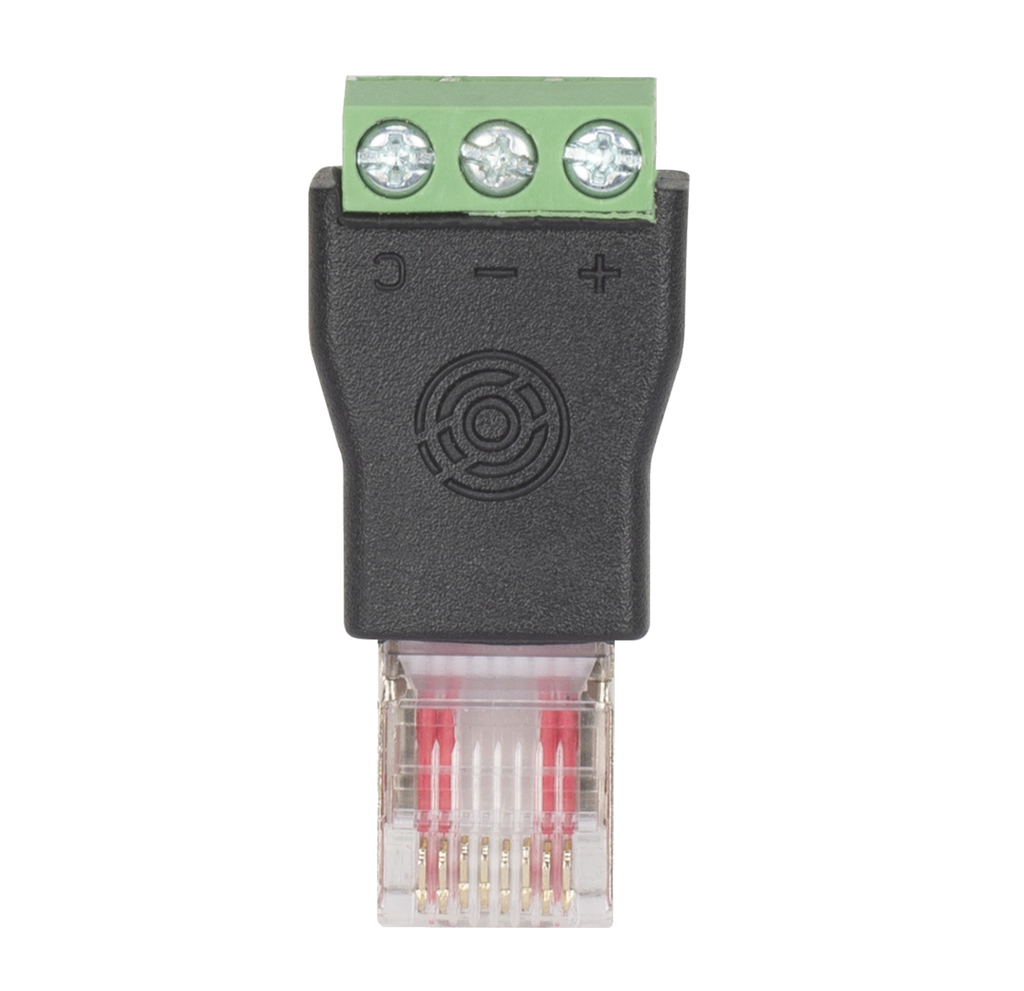

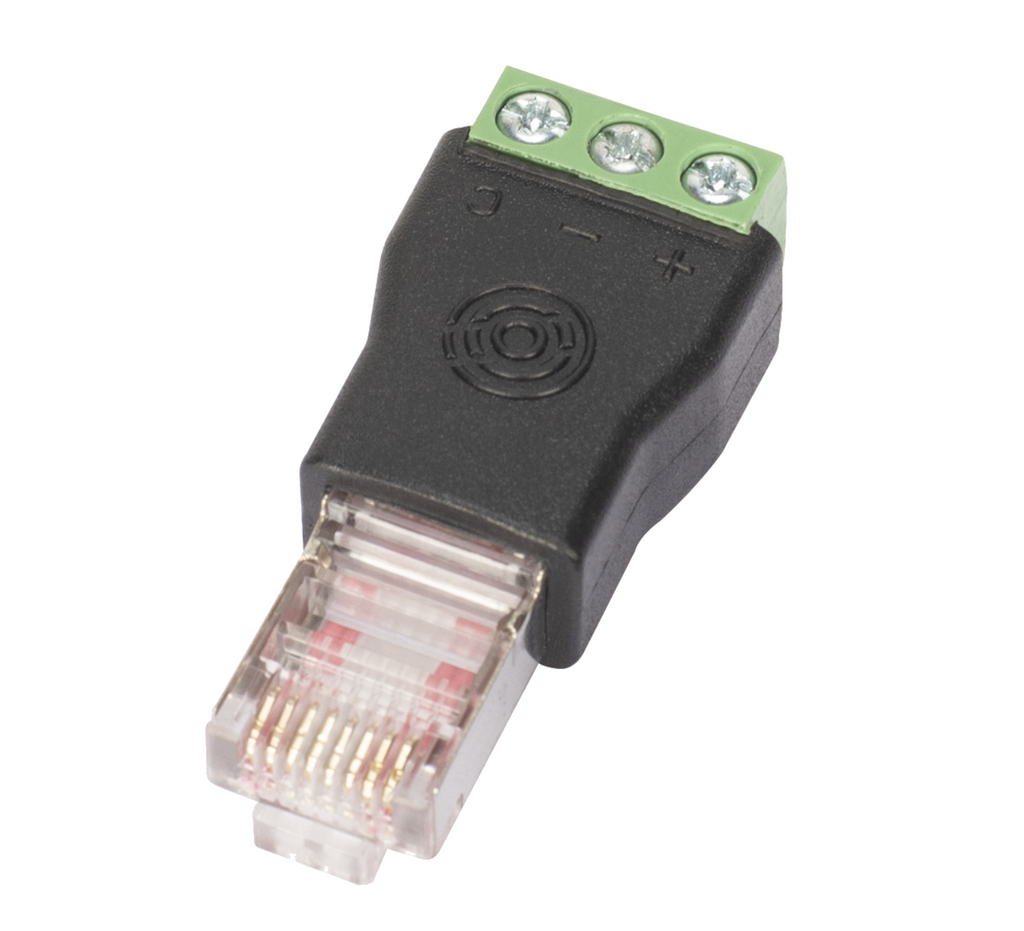

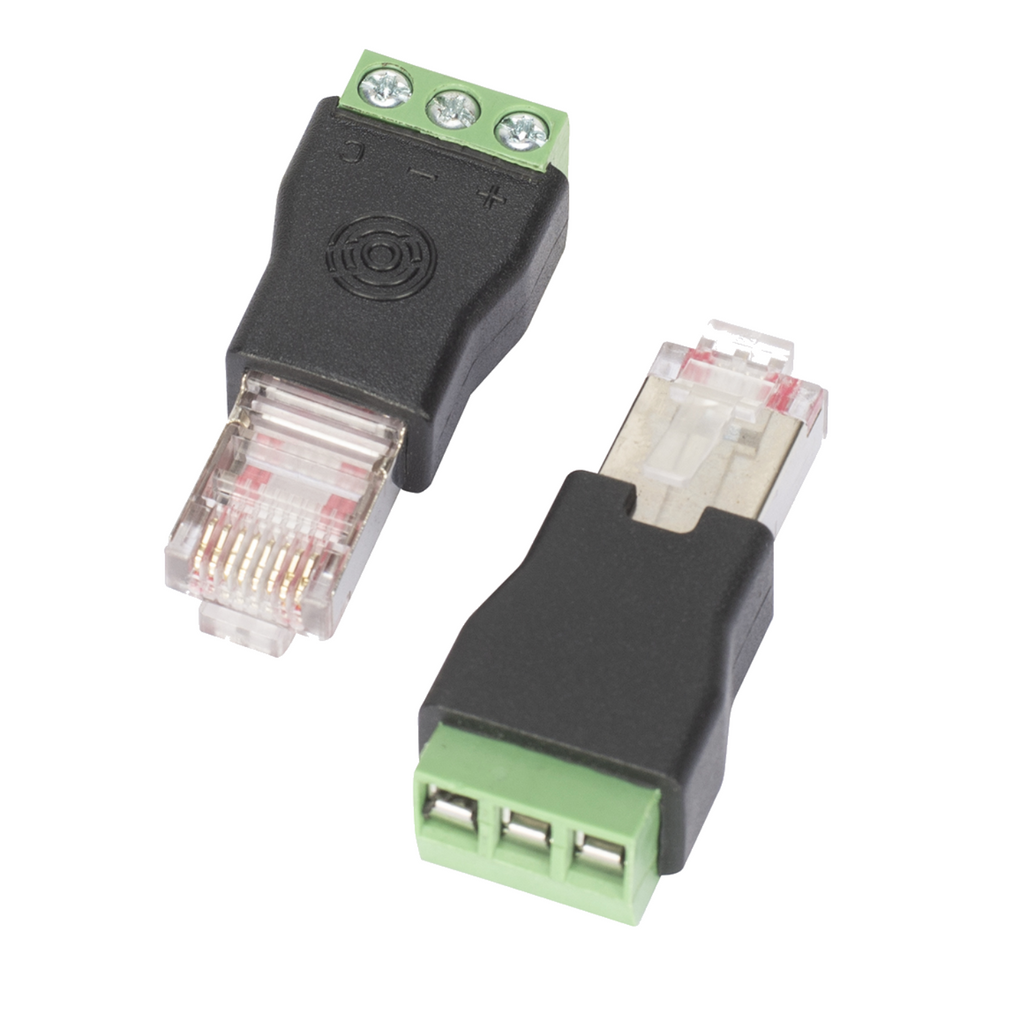

The NETRON RJ-T is a compact useful adapter to convert ESTA compliant RJ45 DMX ports to a 3-wire screw terminal.
Ideal for installations of NETRON RJ45 products like the RDM645 or the EN12-45 it is also a compatible with any other existing RJ45 DMX wiring infrastructure.
Features:
- RJ45 to screw terminal DMX/RDM Adapter
- ESTA compliant DMX pin-out
- Compact and short injection molded housing
- Compatible with all ESTA DMX compliant fixtures and DMX distribution devices
Specifications:
Details
RJ45 Connection
ESTA Compliant DMX pin-outÂ
3x Screw Terminals AWG 14-30Â
Compatible with EN12-45 and RDM645
Physical
Length: 43 mm (1.7 in.)Â
Width: 11 mm (0.43 in.)Â
Height: 18 mm (0.71 in.)
Included Items

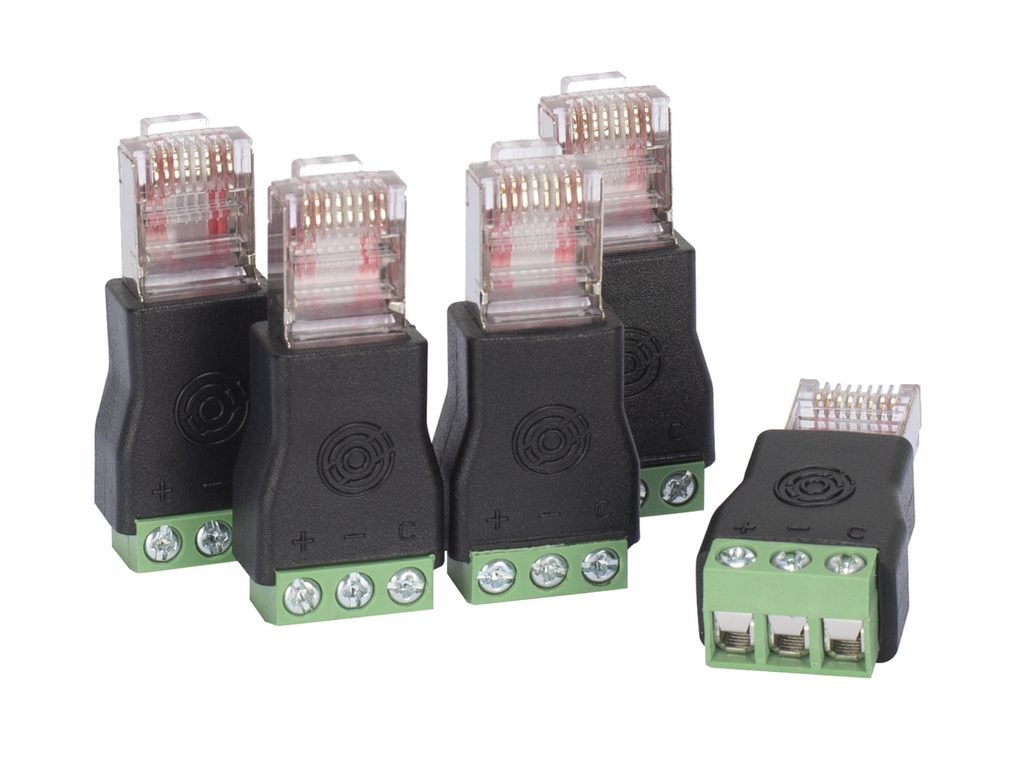

5x RJ45 DMX Adapter
