Sennheiser SI 30
Roll over image to zoom in Click on image to zoom
Sennheiser SI 30

Sennheiser SI 30

Save $80.95
SennheiserSKU: SI-30
Price:
$359.00 $439.95

Description



SI 30

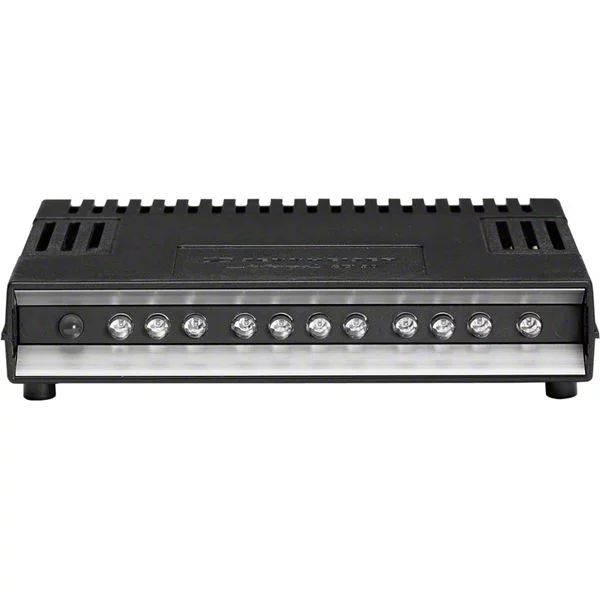

The SI 30 is a wideband modulator with an integral radiator.


Overview

The SI 30 is a wideband modulator with an integral radiator. It can be switched between operation on channel 1 (2.3 MHz), channel 2 (2.8 MHz) and stereo operation. Due to its compact size and relatively low radiating power, the SI 30 modulator/radiator and the SZI 30 radiator are an ideal choice for smaller or medium-sized

rooms, for covering recesses or for applications which require transmission of audio information to well defined zones, e.g. in museums.


Features

  • Compact radiator and modulator/radiator for the carrier frequencies 2.3 MHz and 2.8 MHz

  • Easy installation and precise alignment


What's in the box?

  • SI 30: 1x SI 30 modulator/radiator,
  • 1 x AF connection cable, 3.5 mm stereo jack plug to Texas connector, length 2 m 1x 3.5 mm/1 / 4 " stereo jack adaptor
  • SZI 30: 1 x SZI 30 radiator
  • 1 3.5 mm stereo jack plug to Texas connector
  • 1 3.5 mm/1/4 ” stereo jack adapter


Technical Data

  • Dimensions
    118 x 25 x 90 mm
  • Weight
    251 g
  • Nominal deviation
    +/- 50 kHz
    • Modulation
      FM
    • Output impedance
      50 Ohm
    • Carrier frequencies
      2,3 MHz + 2,8 MHz
    • Current consumption
      180 mA
    • Operating voltage (mains)
      24-27 V DC
    • Input voltage range
      45 mV- 4V
    • Effective radiated power
      0,5 W
    • IR Diodes
      11
    • Max. coverage area
      80 m²
    • RF output
      3,5 mm mono
