Description

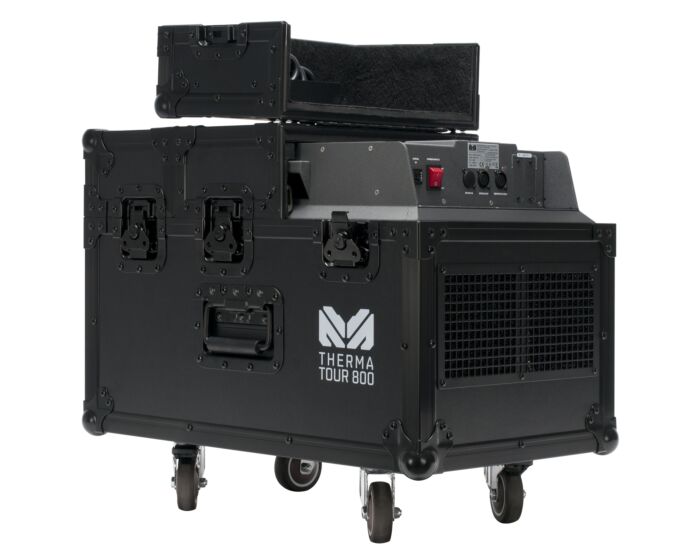

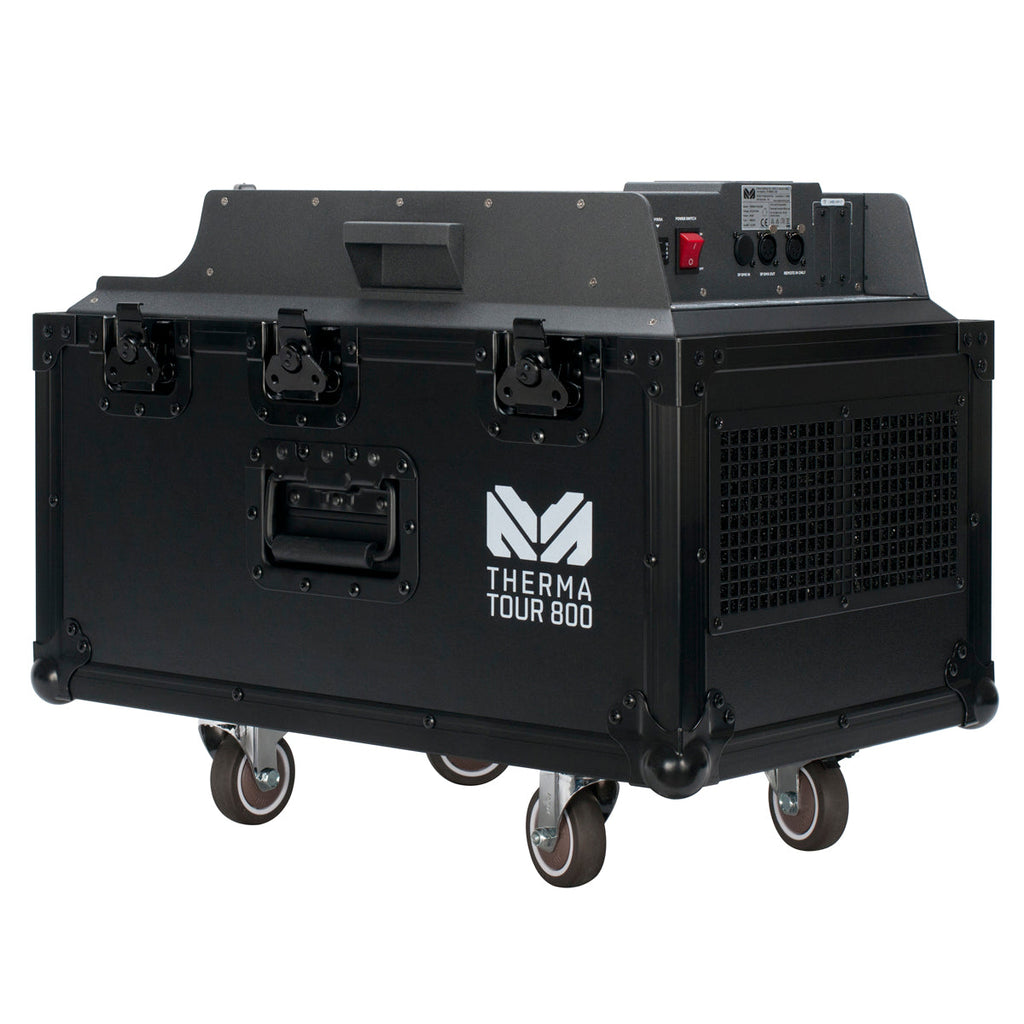

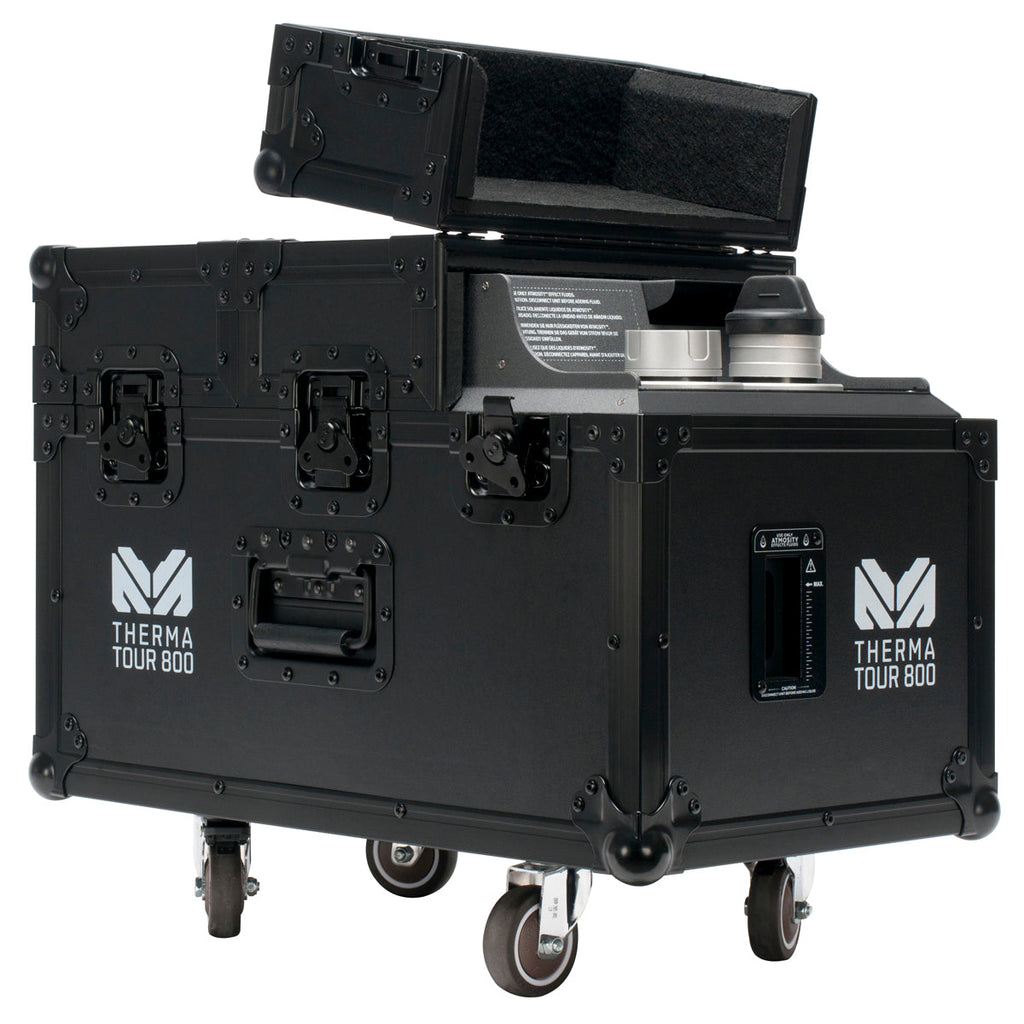

The Therma Tour 800 is a powerful oil-based haze effect generator that produces an exceptionally fine, long-lasting atmospheric haze that excels at revealing light beams and mid-air effects. The 800W THERMA TOUR 800 creates a safe, clean and odorless haze effect that leaves no residue. The perfect small-particle haze for highlighting light beams, the unit holds two liters of fluid for over 35-hours of run time with no warm up time required. Hang time is incredibly long at over 3 hours in an enclosed space! Compact yet ruggedly built to withstand the day in and day out rigors of on-the-road use, multiple control options include a wireless RF remote, MAGMATIC MAGFLY or Elation E-Fly wireless DMX, wired remote, MAGMATIC App, and manual, on-board, touch screen control.
Features:
- 800 Watt low power consumption
- Over 35 hours of run time
- Haze lasting up to 3 hours after the machine is off

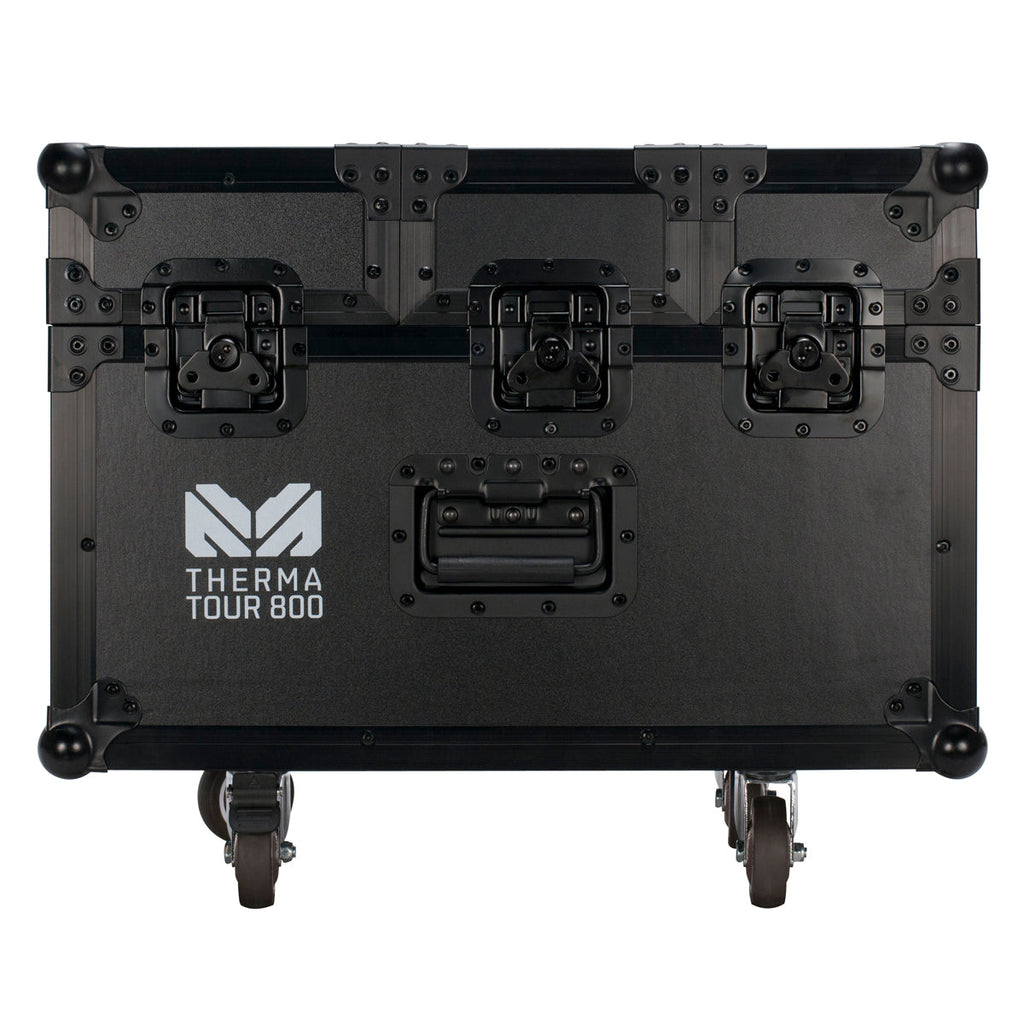

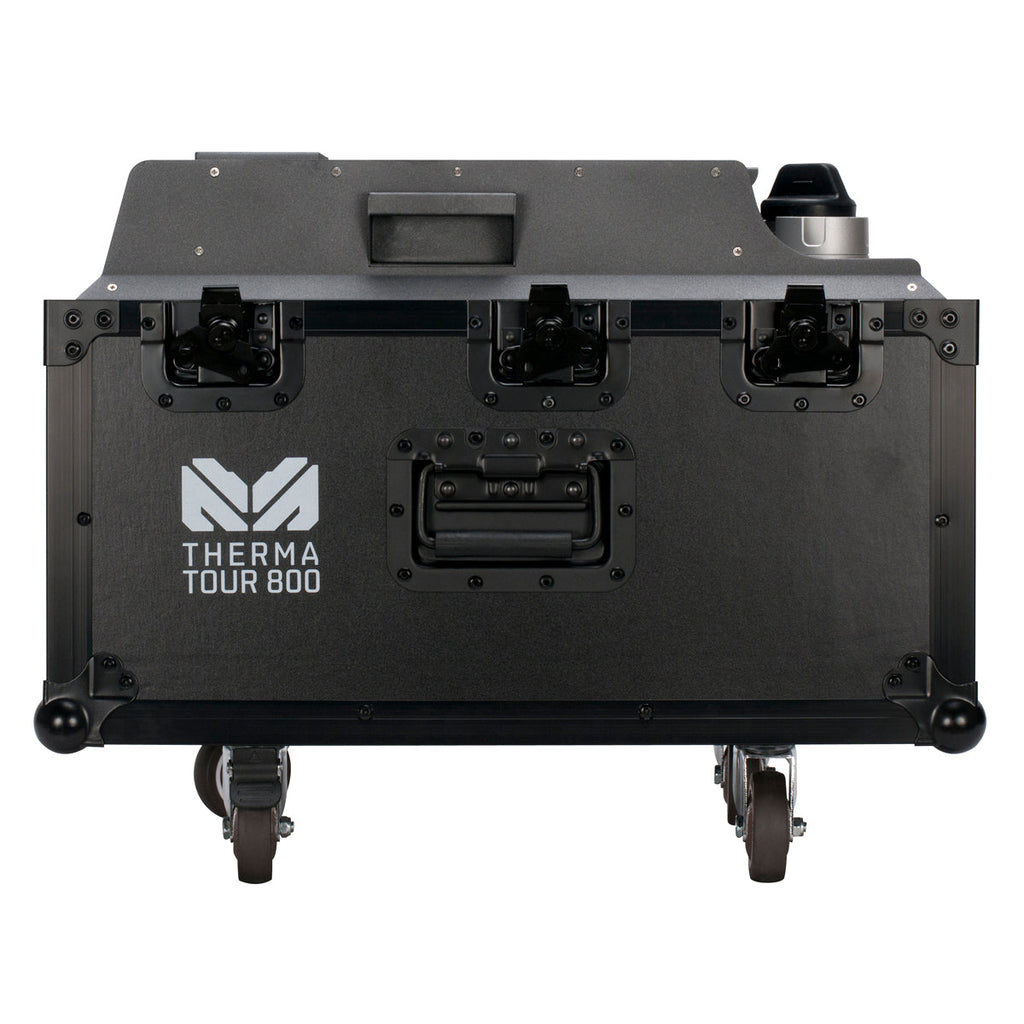

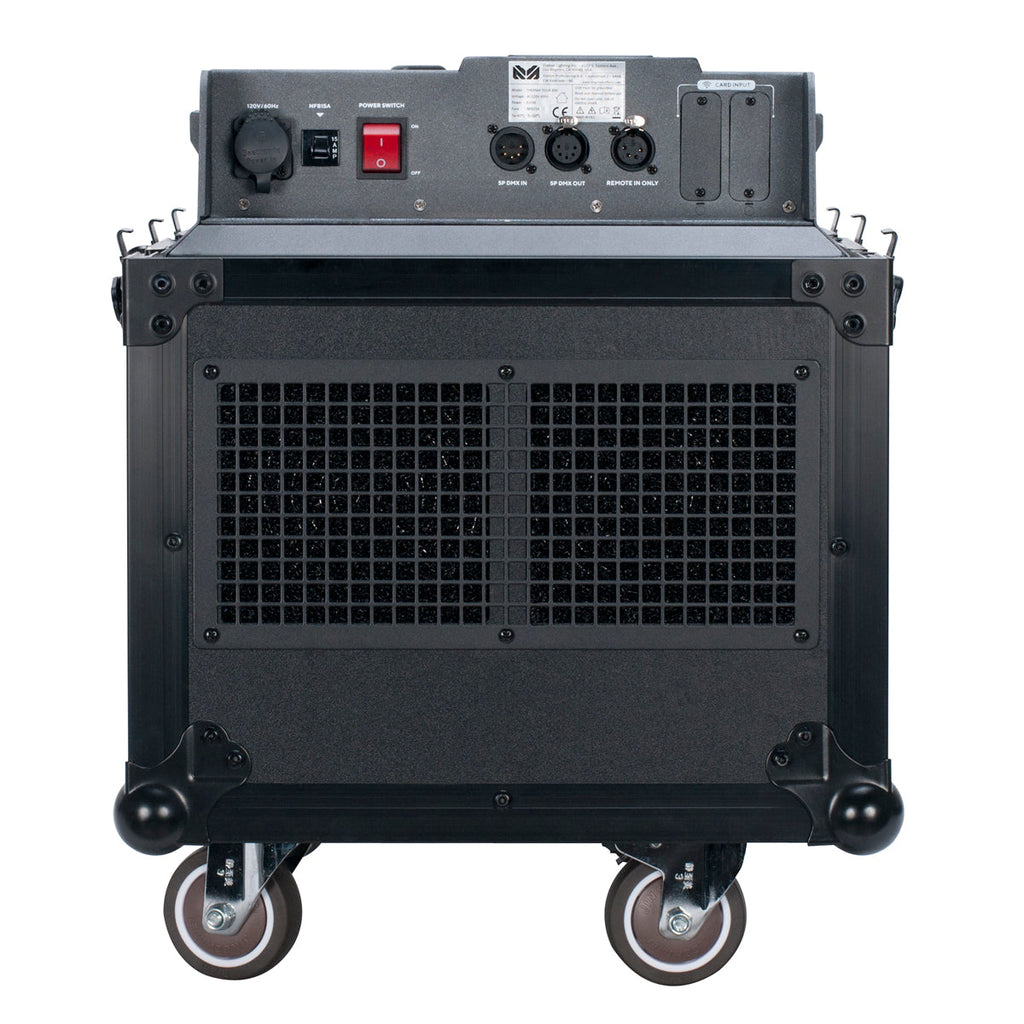

- Rugged mobile road case design
- Soundproof insulation for indoor use
Specifications:
DYNAMIC EFFECTS
Output: 5600 cu.ft / Min

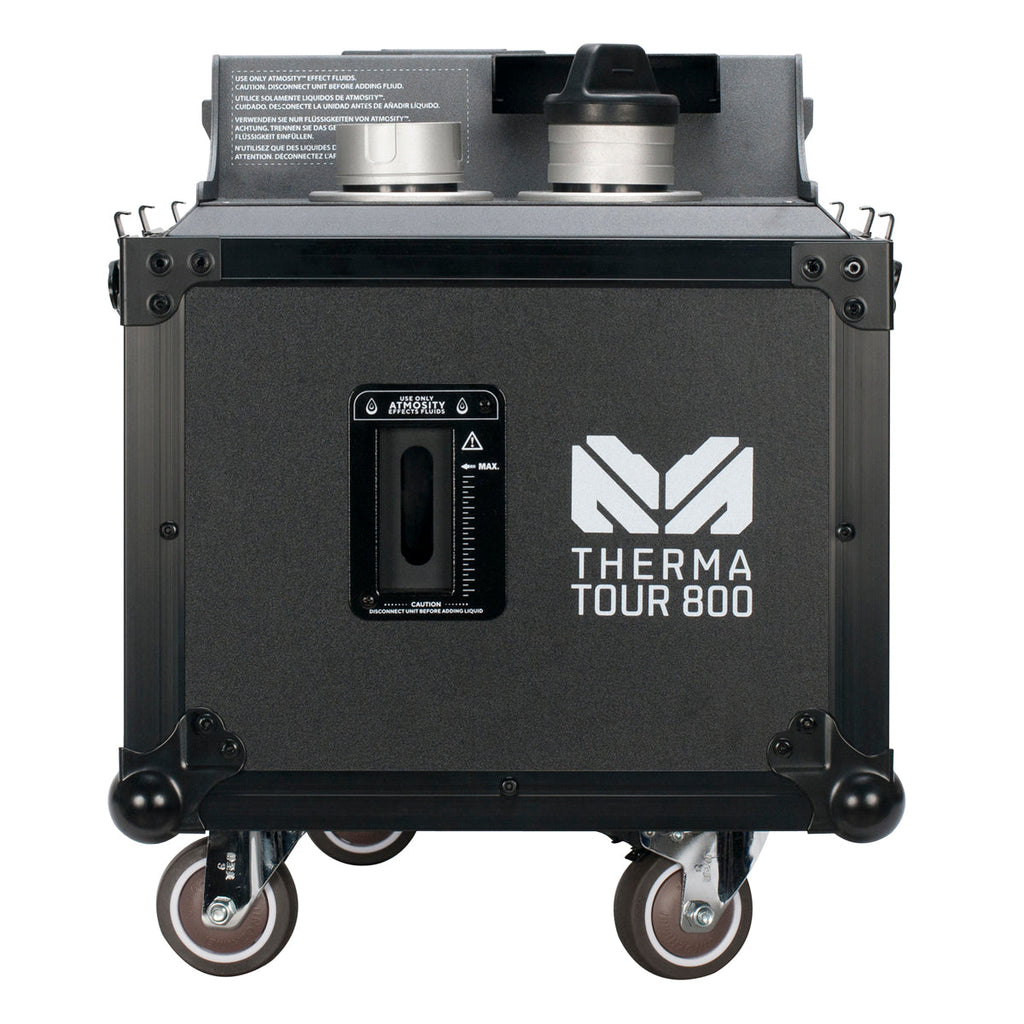

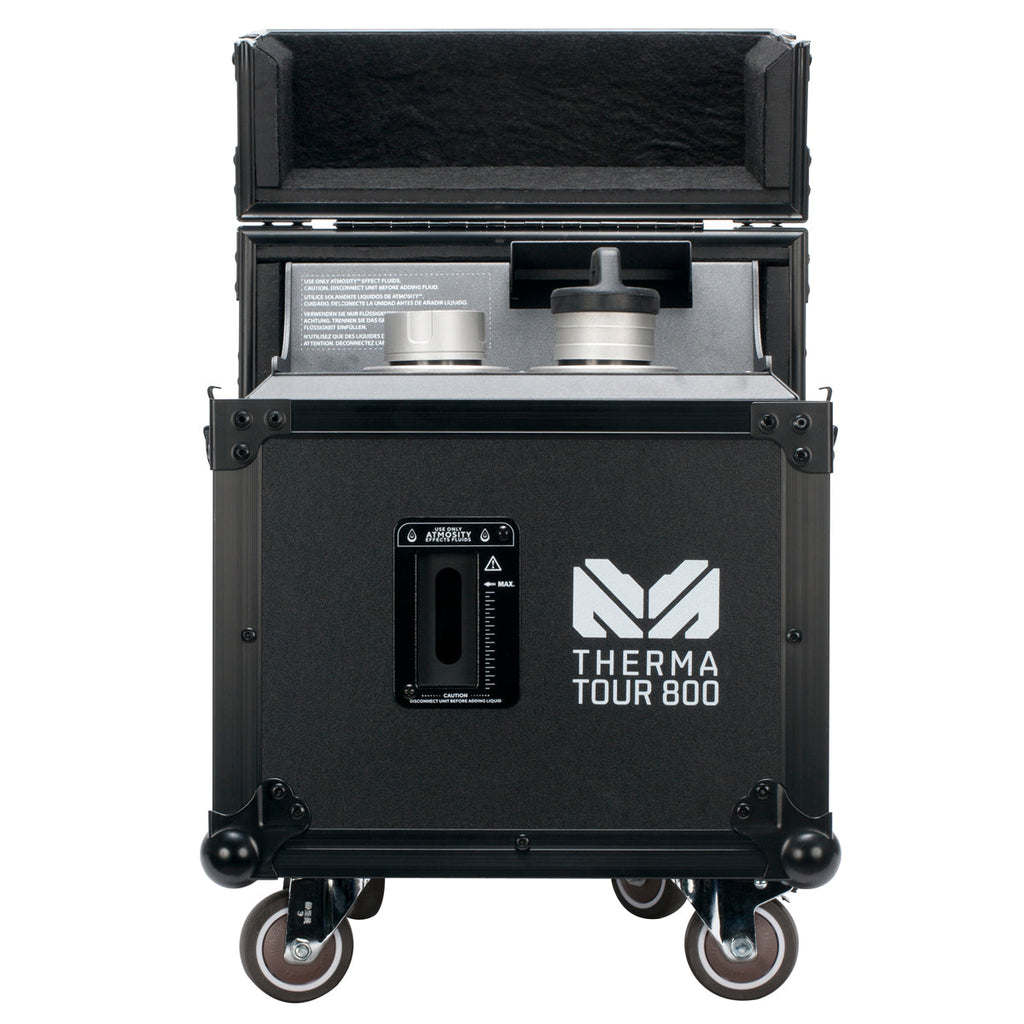

External Visual Fluid Level Detection
COMPATIBLE FLUID
Atmosity ARH (Oil based fluid)
Atmosity AAH (Water based fluid)
CONSTRUCTION / PHYSICAL / PERFORMANCE
External Visual Fluid Level Detection
Fluid Tank Capacity: 2.5L
Fluid Consumption: 1.5ml / Min.
CONTROL
2 Card Inputs
RDM (Remote Device Management)
Control Protocol: DMX
DMX Control Modes: 2 (1 & 3 Channel)
On-Board Timer Control
5 Factory Presets
4-Pin Wired Remote Input for optional remote

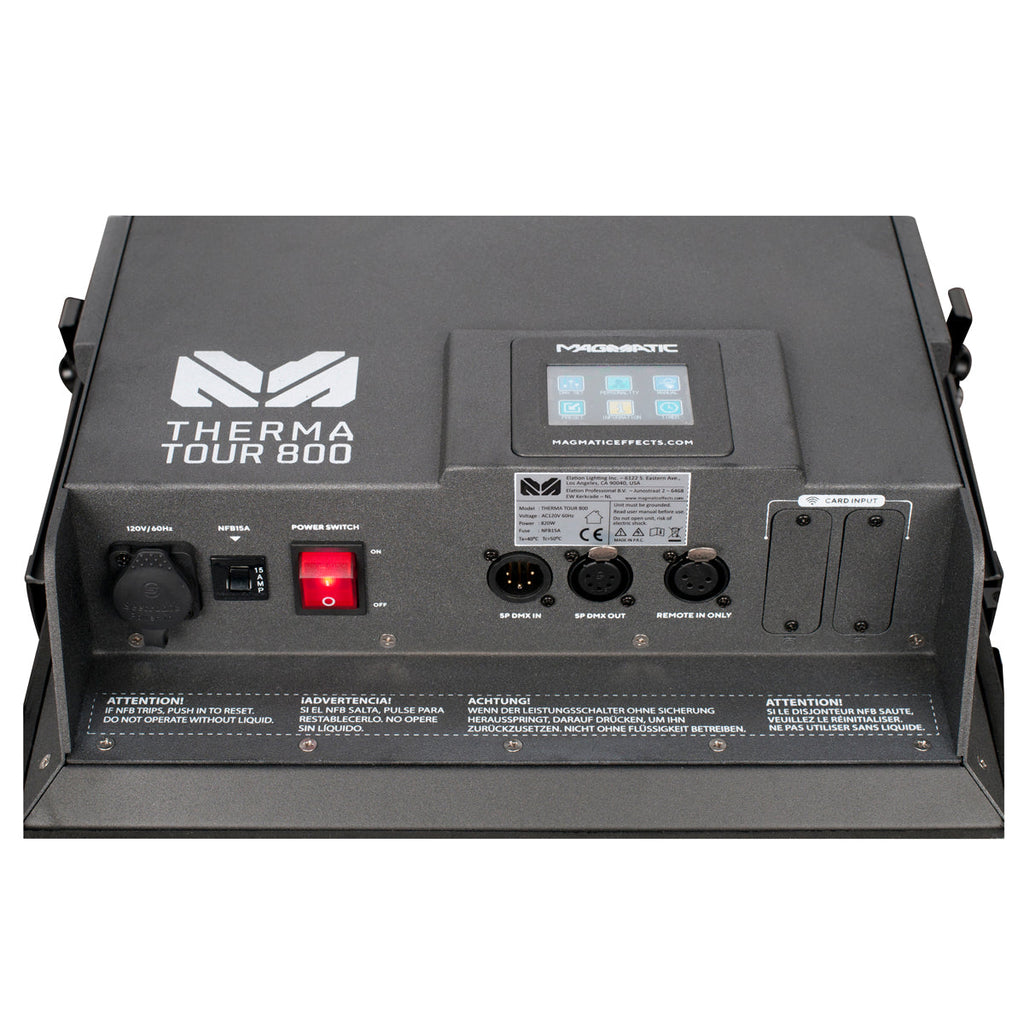

Touch Screen Display
Manual Control via on-board display

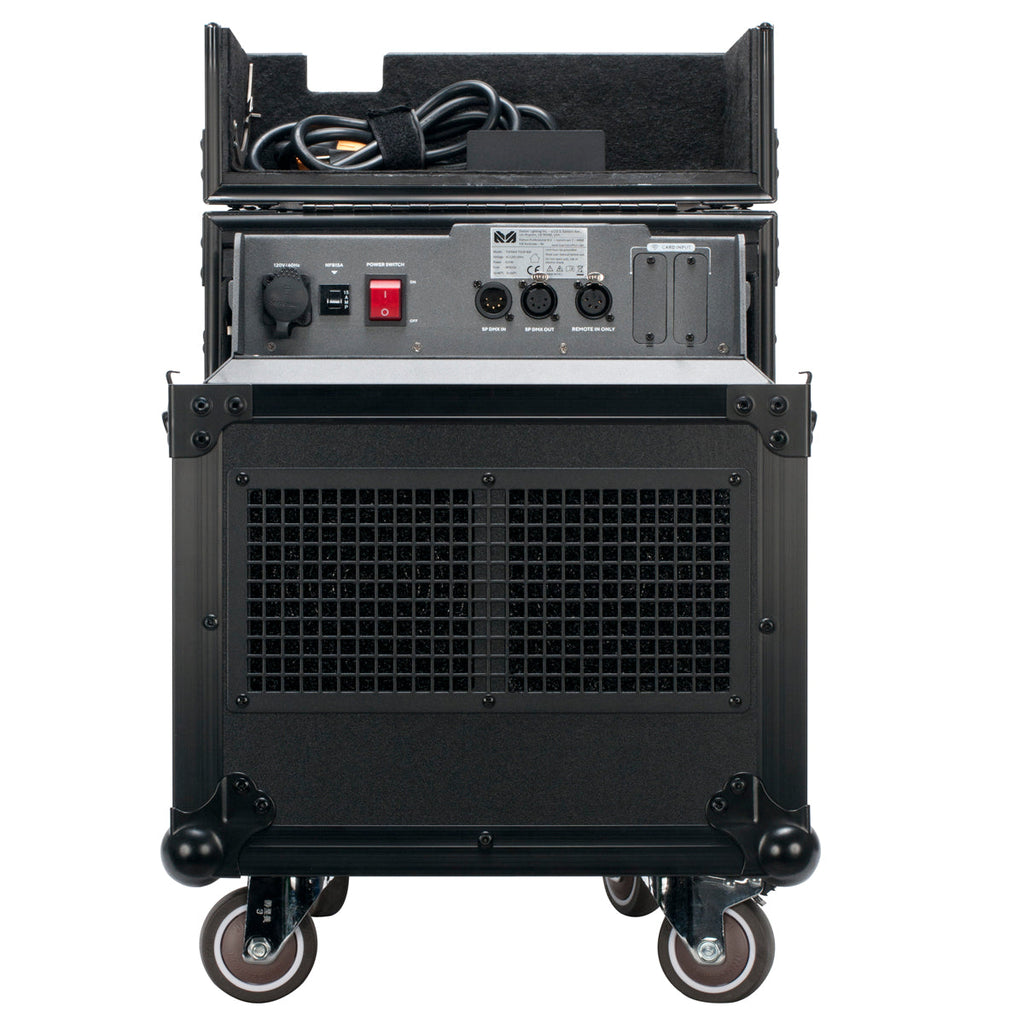

CONNECTIONS
Data Connectors: 5-Pin XLR/Out, 4-Pin XLR Out
Locking Power Connector
SIZE / WEIGHT
Length: 24.45 in. (621.13mm)
Width: 15.34 in. (389.63mm)
Height: 19.87 in. (504.76mm - With Casters)
Weight: 93 lbs. (42kg)
ELECTRICAL
Power Consumption: 820w
Input Voltage: 120V, 230V, 240V, 50 & 60Hz
Breaker Size: 15A (120V version)
Breaker Size: 10A (230V version)
THERMAL
Maximum Temperature (Ambient): 104°F (40°C)
Exterior Surface Temperature: 122°F (50°C)
WHATS INCLUDED
Flight Case
14 AWG Locking Power Cable
OPTIONAL ACCESSORIES
MAGFLY Card
MAG-RF Card
Atmosity ARH (Oil base haze fluid)
Atmosity AAH (Water based fluid)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
